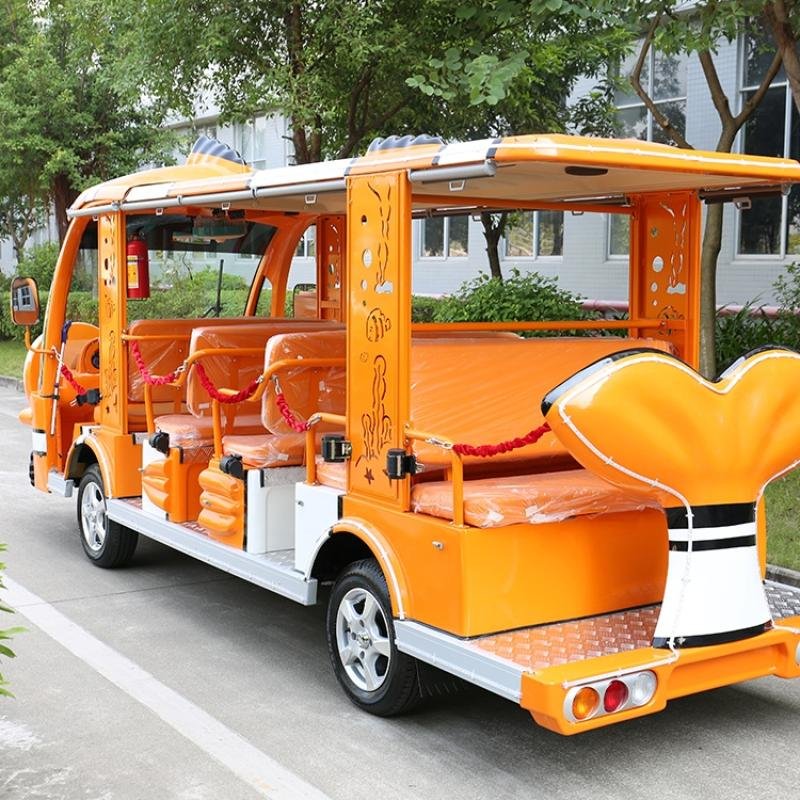

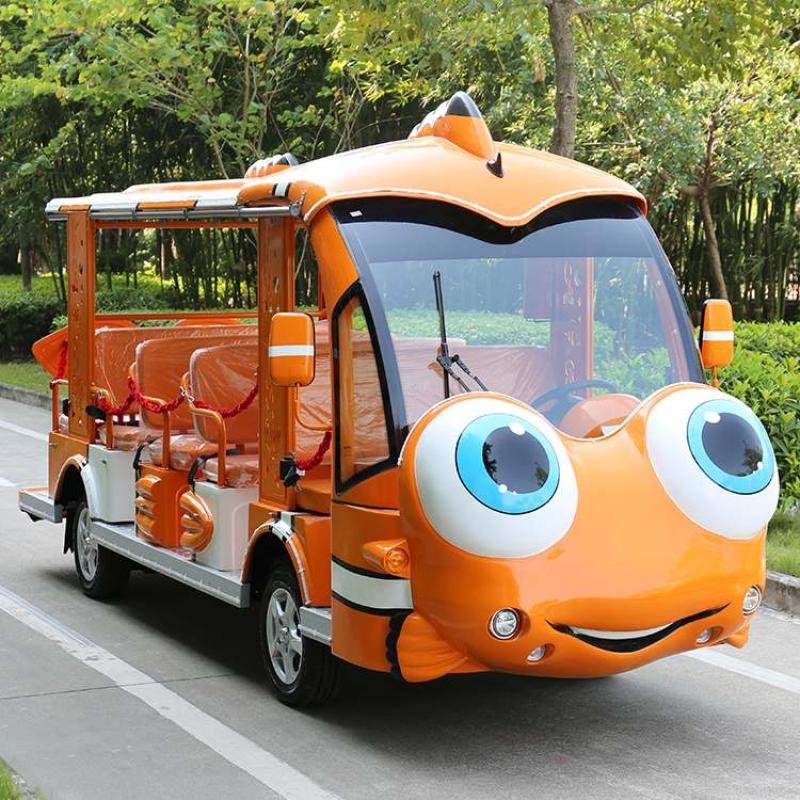

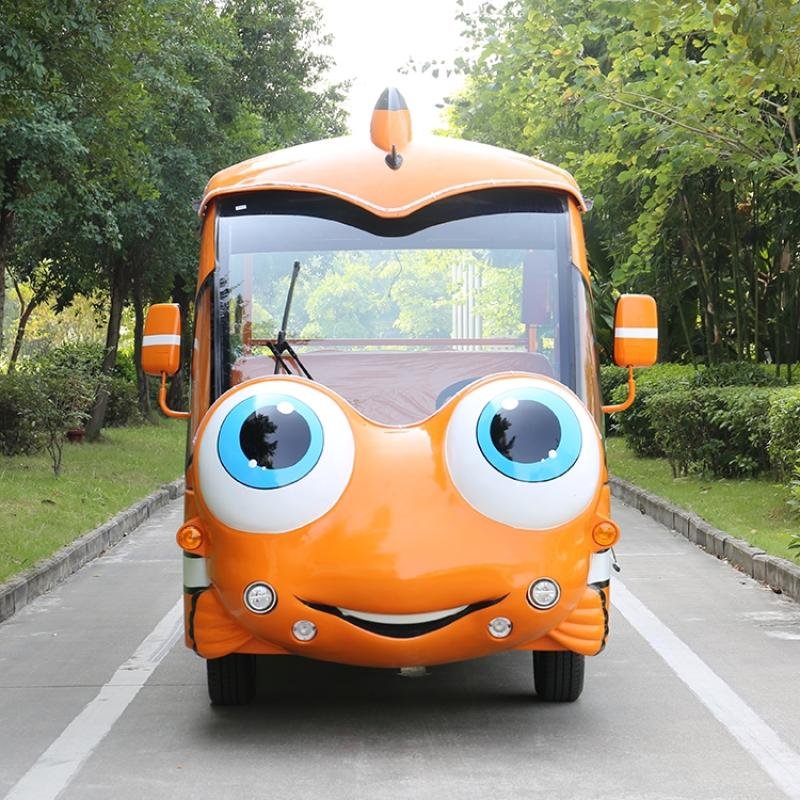

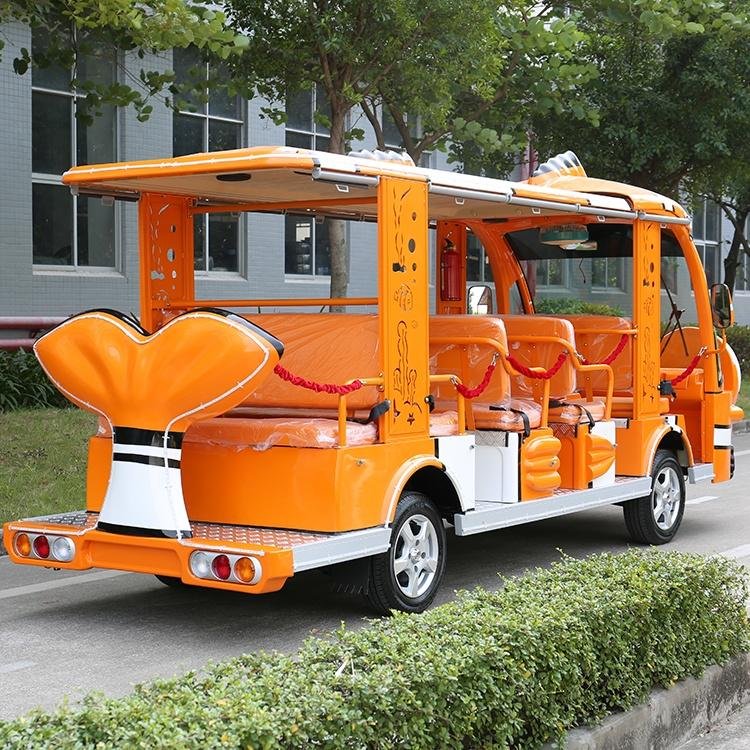

14 Seater Electric Customized Lithium Sightseeing Bus DN-14
Electric Nemo-Design Sightseeing Bus DN-14 Lithium Edition Features1. Equipped with high performance AC motor;
2. Standard color: White; simple but attractive apperance with strong carrying capacity and no noise;
3. 72V/96V Lithium ion batteries available for longer driving milage;
4. Equipped with smart steering system for small turning radius;
5. 14 comfortable seats with ergonomic design are suitable for tourist, airports, resorts, villas, etc;
6. Four wheels hydraulic braking system and independent parking brake;
7. Supporting custiomization for various of electirc vehicle solution.
Electric 14 Seater Customized Sightseeing Bus Lithium Battery Edition SpecificationsBattery | Marxon 72V 200AH lithium battery | Marxon 72V 300AH lithium battery | Marxon 96V 400AH lithium battery |
Motor | AC system 72V 7.5KW | AC system 72V 7.5KW | AC system 96V 15KW |
Controller | AC 72V 400A | AC 72V 400A | AC 96V 500A |
Charger | 72V 20A | 72V 20A | 96V 12A |
Range (loaded) | 130km | 200km | 240km |
Max. turning radius(m) | 6.5m | 6.5m | 6.5m |
Suspension | Macpherson strut suspension | ||
Brakingsystem | Four wheels hydraulic braking system and independent parking brake | ||
Max. speed | 28km/h | ||
Max. climbing ability(loaded) | 20% | ||
Ground clearance(mm) | 100 | ||
Overall dimensions(mm) | 5400*1520*2245 |
Battery | Marxon 48V 150AH lithium battery | Marxon 72V 200AH lithium battery | Marxon 72V 300Ah lithium battery |
Motor | AC system 48V 5KW | AC system 72V 7.5KW | AC system 72V 7.5KW |
Controller | AC 48V 450A | AC 72V 400A | AC 72V 400A |
Charger | 48V 20AH | 72V 20AH | 72V 20AH |
Range (loaded) | 80-90km | 160km | 240km |
Max. turning radius(m) | 6.5m | 5.6m | 5.6m |
Suspension | Macpherson strut suspension | ||
Brakingsystem | Four wheels hydraulic braking system and independent parking brake | ||
Max. speed | 30km/h | ||
Max. climbing ability(loaded) | 20% | ||
Ground clearance(mm) | 145 | ||
Overall dimensions(mm) | 4224*1520*2060 |
STANDARDCONFIGURATION: | ||
DESCRPTIONS | REMARKS | |
Wiper | Wiper | |
Speed meter | Speed meter, battery indicator, voltmeter, current-meter | |
Rear view mirrors | Rear view mirrors | |
Front and rear light | Full lights system | |
Dashboard | Grey, plastic | |
Body | Metal steel body | |
Roof | Aluminum frame + fiber glass cover | |
Windshield | One-piece see-through laminated windshield | |
OPTIONAL CONFIGURATION/ACCELERATORS: | ||
1. Full enclosure weathercurtains; 2. Sun shade Curtain; 3. 13 inch aluminum rim; 4. Music player with 2 pcs speakers; 5. Solar panel; 6. Seatbelts; 7. Carbin fan; | ||
COLORS: | ||
Any design and color can be customized |
