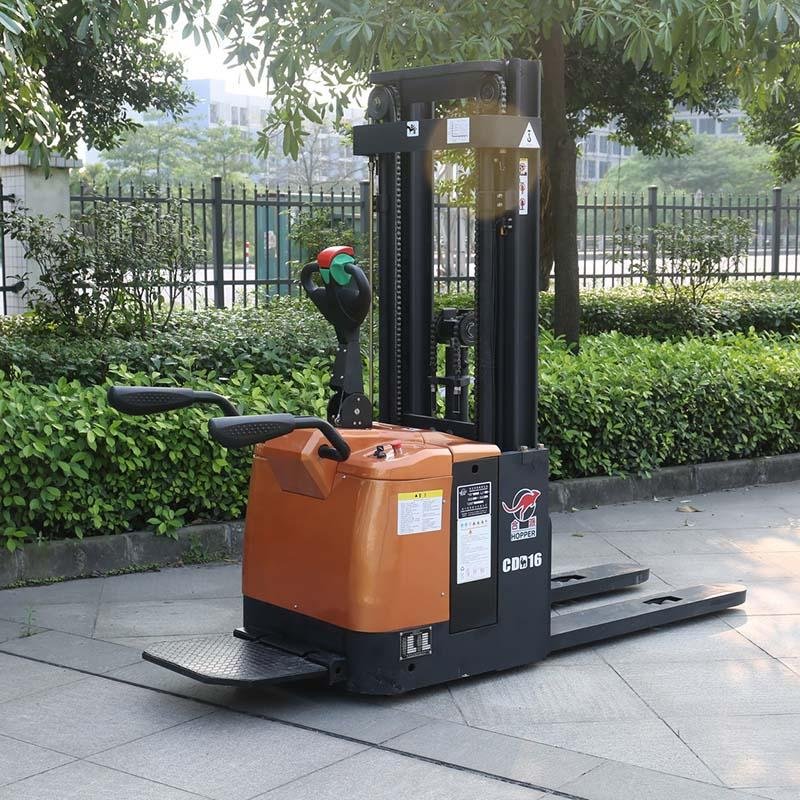

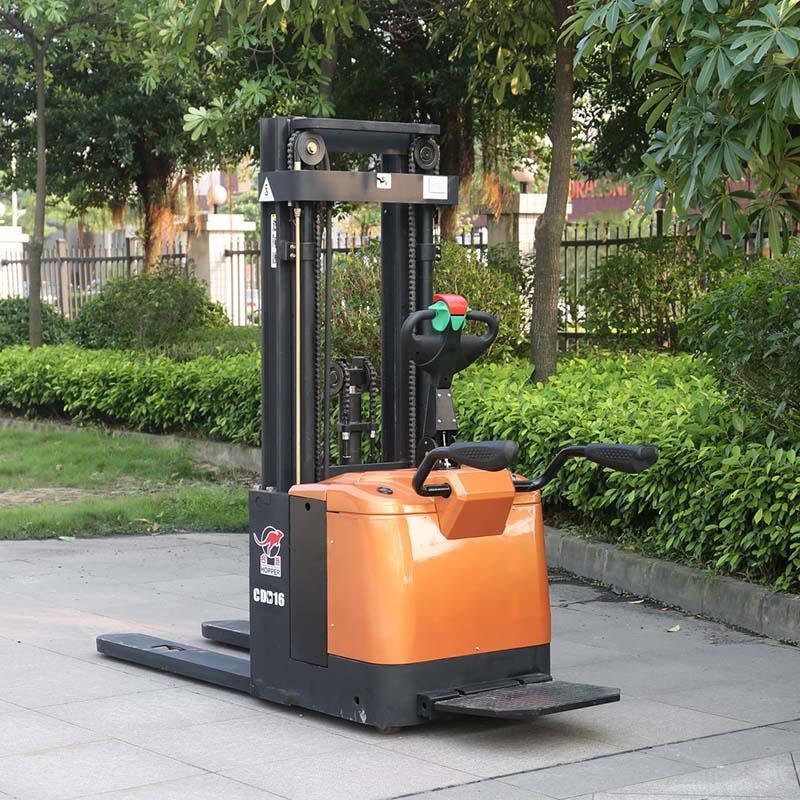

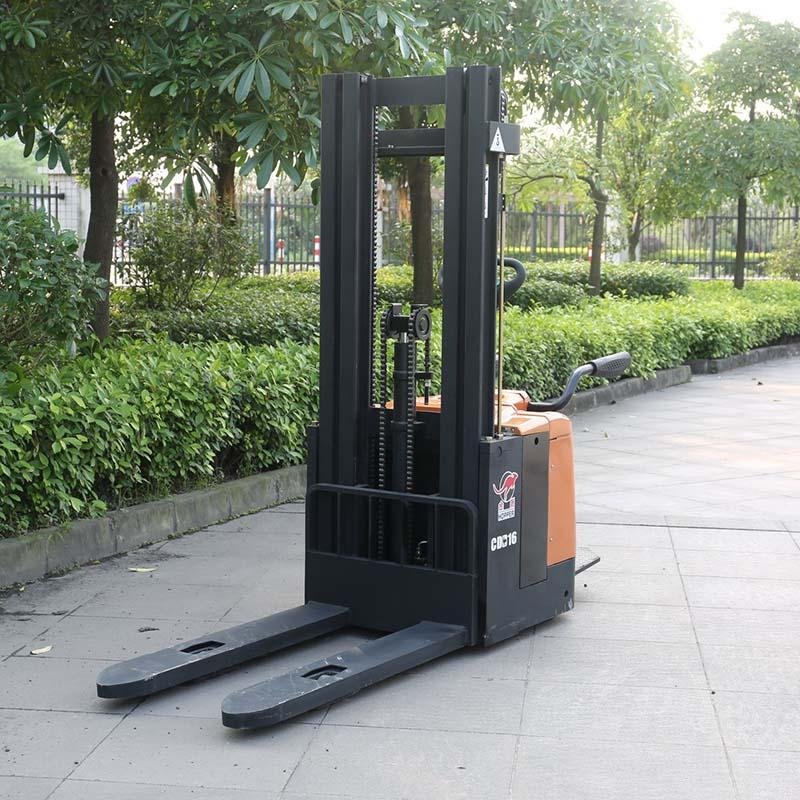

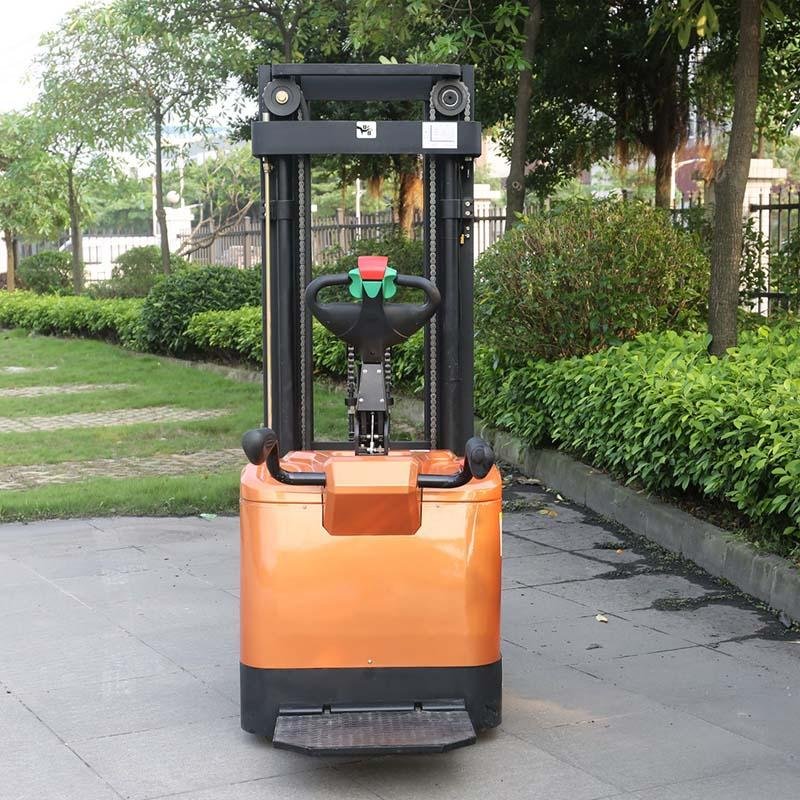

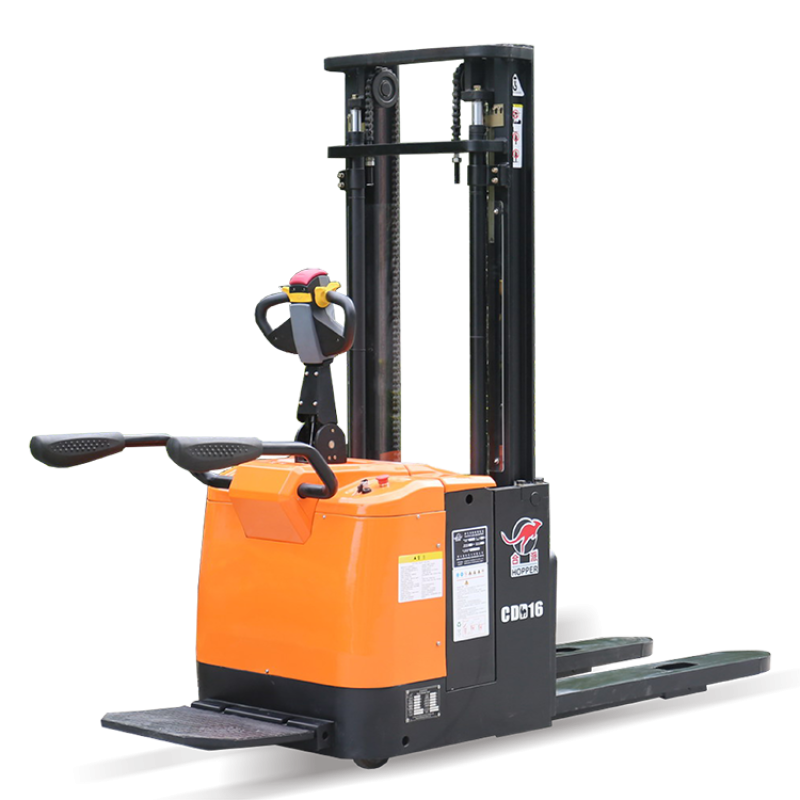

1.5~2.0 TonElectric Pallet Stacker CDD16

Electric Pallet Stacker Advantages

1. The AC brushless drive motor is powerful and maintenance-free # Electric Pallet Stacker#

2. CURTIS AC control system, precise control and higher efficiency

3. EPS electric steering system, driving lights and more flexible;. # Pallet Stacker#

4. High-performance hydraulic lift motor, with high efficiency, low noise and vibration.

5. The mast adopts H-shaped channel steel, which has strong stability and good rigidity  # Pallet Stacker#

6. The vehicle has regenerative braking and slope protection against sliding down to ensure safe operation

7. The rear cover of the frame can be completely dismantled, and the components are clear and easy to maintain.

8. Two-way solenoid valve, which achieves three lowering speed model.  # Electric Pallet Stacker#

9. Wide view mast, clear visibility.  # Electric Pallet Stacker#

Electric Pallet Stacker CDD16 Technical Parameters

Model		CDD16
Load capacity/rated load		1600	kg
Load center distance	c	600	mm
Overall length	L1/L2	2550/2062	mm
Overall width	b1	790	mm
Overall height	h6	2070	mm
wheelbase	Y	1420	mm
Height(handle)	h4	1485	mm
Fork height,lowered	h3	85	mm
Max.lift height	h1	1600/3000/4500	mm
Min.ground clearance	m1	30	mm
Forks outside width	b2	685/550	mm
Forks dimension (T/W/L)		50/185/1220	mm
Max.lift speed unladen		160	mm/s
Max.lift speed laden		120	mm/s
Max. travel speed unladen		6	km/h
Max.travel speed laden		6	km/h
Min.outside  turning radius	Wa	1600	mm
Max. gradability,laden		5	%
Max. gradability,unladen		8	%
Weight(unladen)		1300	kg
Battery capacity		210	Ah
Battery voltage		24	V
Lift motor(DC)	DC	3	KW
Drive motor(AC)	DC	2	KW
Aisle width for lengthways	1000*1200  tray	2500	mm
Aisle width for lengthways	800*1200  tray	2400	mm
Container quantity	20GP/40HQ	6/13	unit
