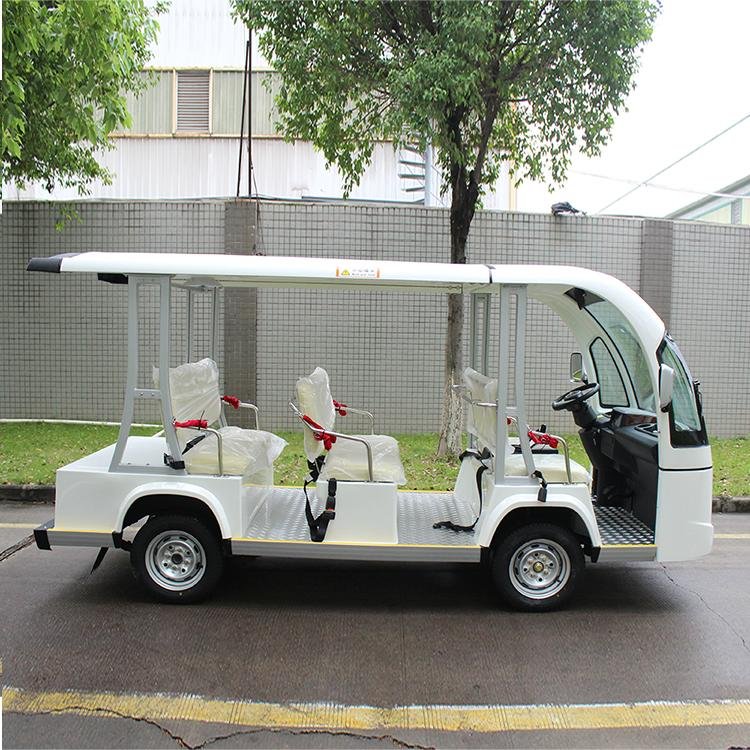

8 Seater Electric Lithium Battery Sightseeing Bus DN-8M

8 Seater Electric Lithium Battery Sightseeing Bus DN-8M

Electric Sightseeing Bus DN-8M Lithium Edition Features

1. Equipped with high performance AC motor;

2. Standard color: White; simple but attractive apperance with strong carrying capacity and no noise;

3. 48V/72V Lithium ion batteries available for longer driving milage;

4. Equipped with smart steering system for small turning radius;

5.  Four wheels hydraulic braking system and independent parking brake;

6. 8 comfortable seats with ergonomic design are suitable for tourist, airports, resorts, villas, etc.

Electric Shuttle Bus DN-8M Lithium Battery Edition Specifications

Battery	Marxon 48V 150AH lithium battery	Marxon 72V 200AH lithium battery	Marxon 72V 300Ah lithium battery
Motor	AC system 48V 5KW	AC system 72V 7.5KW	AC system 72V 7.5KW
Controller	AC 48V 450A	AC 72V 400A	AC 72V 400A
Charger	48V 20AH	72V 20AH	72V 20AH
Range (loaded)	80-90km	160km	240km
Max. turning radius(m)	6.5m	5.6m	5.6m
Suspension	Macpherson strut suspension
Braking  system	Four wheels hydraulic braking system and independent parking brake
Max. speed	30km/h
Max. climbing ability(loaded)	20%
Ground clearance(mm)	145
Overall dimensions(mm)	4224*1520*2060

Electric Shuttle Bus DN-8M Lithium Battery Edition Configuration

STANDARD  CONFIGURATION:
DESCRPTIONS	REMARKS
Wiper	Wiper
Speed meter	Speed meter, battery indicator, voltmeter, current-meter
Rear view mirrors	Rear view mirrors
Front and rear light	Full lights system
Dashboard	Grey, plastic
Body	Metal steel body
Roof	Aluminum frame + fiber glass cover
Windshield	One-piece see-through laminated windshield
OPTIONAL CONFIGURATION/ACCELERATORS:
1. Full enclosure weathercurtains; 2. Sun shade Curtain; 3. 13 inch aluminum rim; 4. Music player with 2 pcs speakers;  5. Solar panel; 6. Seatbelts; 7. Carbin fan;  8. Bus seats
COLORS:
Any colors can be customized
