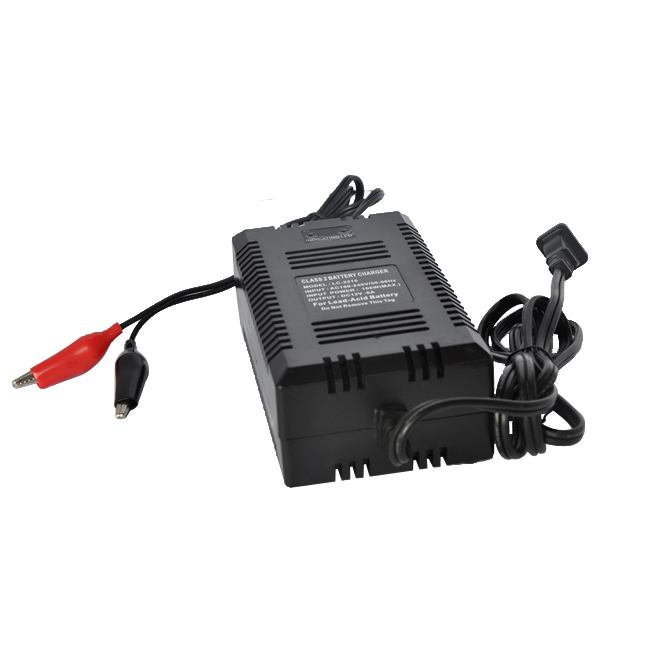

Car Battery Charger LC-2216 Series
Car Battery Charger Features1. Keep the battery charged and can be connected full time without overcharging;
2. Temperature-compensated to ensure optimum charge voltage according to ambient temperature;
3. Unique Gel Cell battery adjusted software allows for a slightly lower charge voltage and higher store voltage to protect sensitive true Gel Cell batteries;
4. Multi-stage charging program allows for optimal constant battery levels without overcharging;
5. Automatically switches to float/mainenance voltage mode after fully charging the battery.
Car Battery Charger pecificationsParameter | LC-2216 | LC4-24-3A | LC-2217 |
Input Voltage | 100~240V AC | 100~240V AC | 100~240V AC |
Output Frequency | 50~60Hz | 50~60Hz | 50~60Hz |
Output Voltage | 12V | 24V | 36V |
Output Current | 6A | 3A | 1.9A |
Battery Type (AH) | 20-60 | 43403 | 6.7-20 |
Light Switching Current | 1.2A | 0.6A | 0.38A |
Overload Protection | Yes | Yes | Yes |
Short Circuit Protection | Yes | Yes | Yes |
Reverse Polarity Protection | Yes | Yes | Yes |
Charging Status Display | LED | LED | LED |
Case | Plastic | Plastic | Plastic |
Dimension (MM) | 158*90*52 | 158*90*52 | 158*90*52 |
N.W | 610g | 610g | 610g |
Certification | UL | UL | UL |
