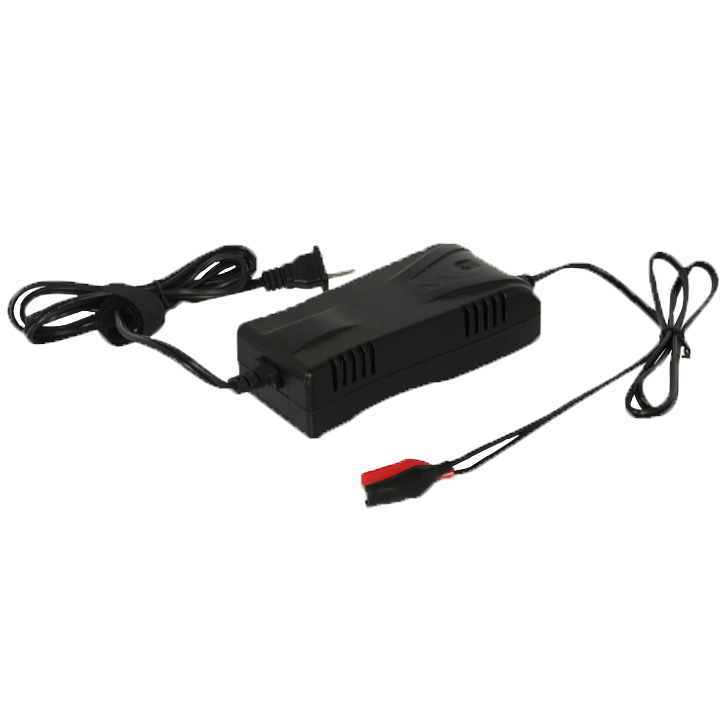

Car Battery Charger LC-2282 Series
Car Battery Charger Features1. Keep the battery charged and can be connected full time without overcharging;
2. Temperature-compensated to ensure optimum charge voltage according to ambient temperature;
3. Unique Gel Cell battery adjusted software allows for a slightly lower charge voltage and higher store voltage to protect sensitive true Gel Cell batteries;
4. Multi-stage charging program allows for optimal constant battery levels without overcharging;
5. Automatically switches to float/mainenance voltage mode after fully charging the battery.
Car Battery Charger SpecificationsParameter | LC-2280 | LC-2281 | LC-2282 | LC-2283 |
Input Voltage | 100~240VAC | 100~240VAC | 100~240VAC | 100~240VAC |
Output Frequency | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz |
Output Voltage | 24V | 24V | 12V | 12V |
Output Current | 1A | 2A | 2A | 3A |
Battery Type (AH) | 3.4-10 | 6.7-20 | 6.7-20 | 6.7-20 |
Light Switching Current | 200mA | 400mA | 400mA | 600mA |
Overload Protection | Yes | Yes | Yes | Yes |
Short Circuit Protection | Yes | Yes | Yes | Yes |
Reverse Polarity Protection | Yes | Yes | Yes | Yes |
Charging Status Display | LED | LED | LED | LED |
Dimension (MM) | 155*71*47 | 155*71*47 | 155*71*47 | 155*71*47 |
