Electric Lifted Cart DH-C2+2
Electric Lifted Cart Features1. Driving system: Series shunt-wound motor brings you unbelievable climbing power;
2. Functional collocation: Rear basket and flip-flop seat;
3. CE for whole carts;
4. Including cigarette socket;
5. Accelerator: Adjustable inductive accelerator continuously variable speed system;
6. Leaf spring with Hydraulic shock absorbers;

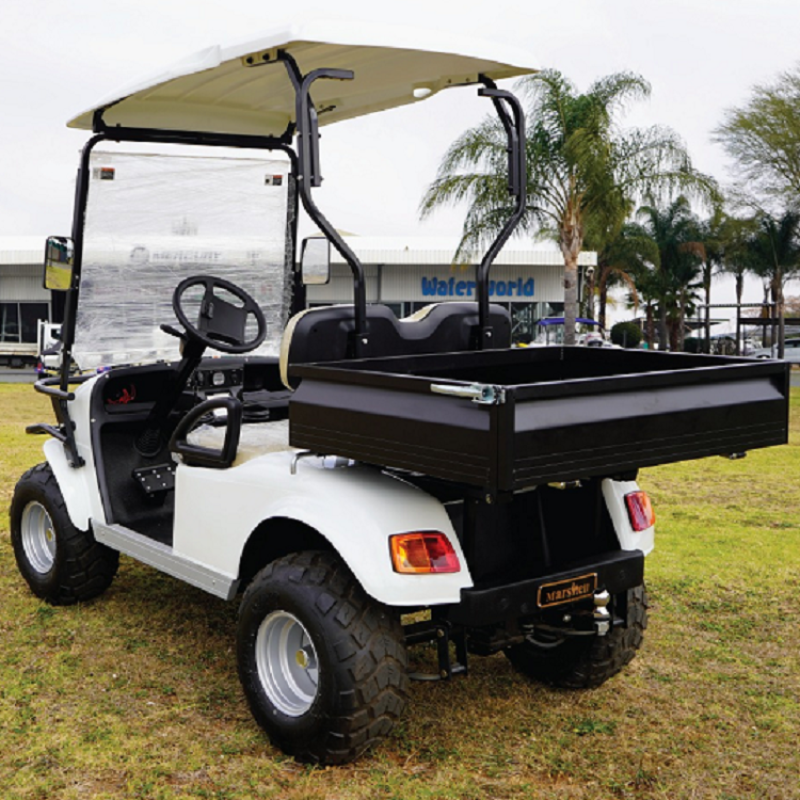

7. Can modify the rear basket to be a rear seat or rear cargo;
8. You can choose 4 wheels hydraulic disk or Rear mechanical drum brake and Regeneration brake collocation;
Electric Golf Cart DH-C2+2 SpecificationsModel | DH-C2+2 | Gross weight: | 550kg |
Passenger capacity: | 4 | Carrying capacity: | 360kg |
Battery: | AGM Battery 8V 165Ah* 6 PCS | Steering: | Rack&Pinion'' Steering |
Motor: | AX 48V 4KW | Brakes: | RearWheelMechanica DrumBrake |
Controller: | 48V 400A | Tire: | 10-inch steel rim wheel terrain tire |
Charger: | 48V 20A | Ground clearance: | 150mm |
Max.Speed: | 30km/h | Overall dimension: | 29120*1245*2070mm |
Max. traveling range: | 85km | rear cargo dimension | 1100*675*160mm |
Climbing capacity: | 30% | Seat | Rear Flip Flop Seat Plastic Molded |
Brake Range: | 4.5m | Standard parts: | Front/rear basket, front bumper, light system. |
Minmum Turningradius: | 3.1m | Optional parts: | Side mirror, Innermirror, Seatbelts, Weatherenclosure, Sunshadecurtain, Police light, PA system, CD player, rear-facing seat kit, Trojan Battery |
