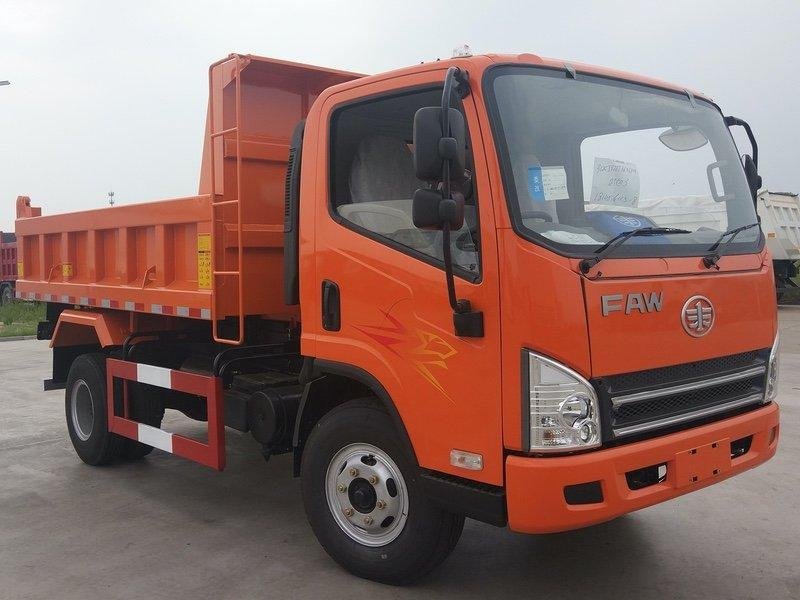

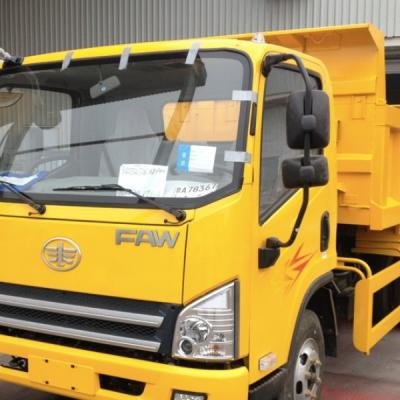

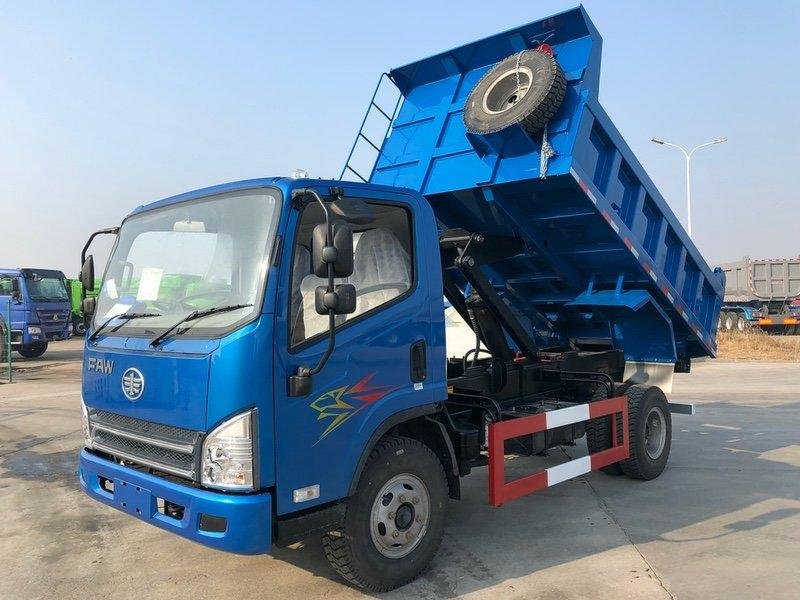

FAW TIGER V small tipper truck, left hand driving type have Euro II, Euro III, Euro IV and Euro V emission standard engine for option.
Model | CA3120P40K2EA85 | CA3040P40K50E4A84 | CA3075P40K2E5A84 | CA3120P40K2E5A85 | CA3160P40K2E5A85 |
Cabin | One and half row | Single row/ TVN | Single row/ TVH | One and half row | One and half row |
Engine/ Power | YC4D130-33/ 130hp | D25TCID3/ 125hp | WP3.7Q130E50/ 130hp | WP3.7Q130E50/ 130hp | YC4S140-50/ 140hp |
Emission | Euro II | Euro IV | Euro V | Euro V | Euro V |
Gearbox | WLY 10H46 | WLY 6TS40 | 6TS40 | 10H46 | 8JS75F |
Tyre | 9.00R2016 | 7.00R1612 | 8.25R1614 | 8.25R2014 | 9.00R2016 |
Wheelbase | 3650mm | 2600mm | 3300mm | 3650mm | 3750mm |
Rated load | 6 tons | 2 tons | 3.5 tons | 6 tons | 8 tons |
Right hand driving type only have Euro II emission standard engine.
Truck model | CA3075P40K2EYA84 | CA3120P40K2EYA85 | CA3160P40K2L4EYA85 |
Cabin | Single row | One and half row | One and half row |
Engine/ Power | YC4D130-33/ 130hp | YC4D130-33/ 130hp | YC4E160-33/ 160hp |
Emission | Euro II | Euro II | Euro II |
Gearbox | 6T115 | 10H46 | 8JS75TE |
Tyre | 8.25R1616 | 8.25R2016 | 10.00R2018 |
Wheelbase | 3260mm | 3650mm | 4200mm |
Rated load |
FAW Trucks Automobile Co., Ltd. is one of the truck production bases of FAW Jiefang Automobile Co., LTD. It can produce a full range of
truck products such as light trucks, medium trucks and heavy trucks, and provide dump trucks, mixer trucks, water tank trucks, refrigerated trucks, garbage trucks and other special purpose trucks.
