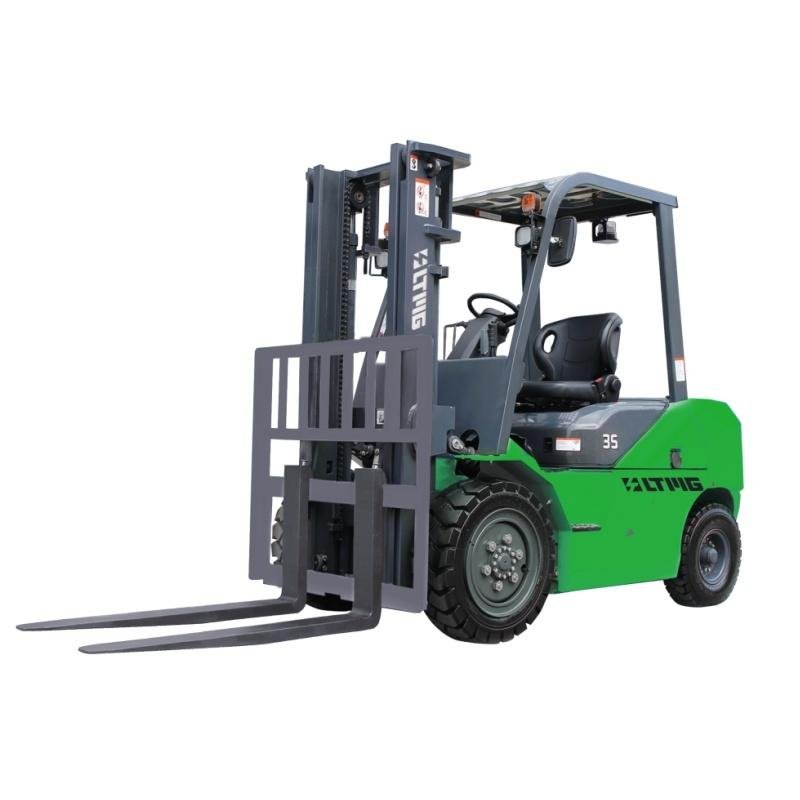

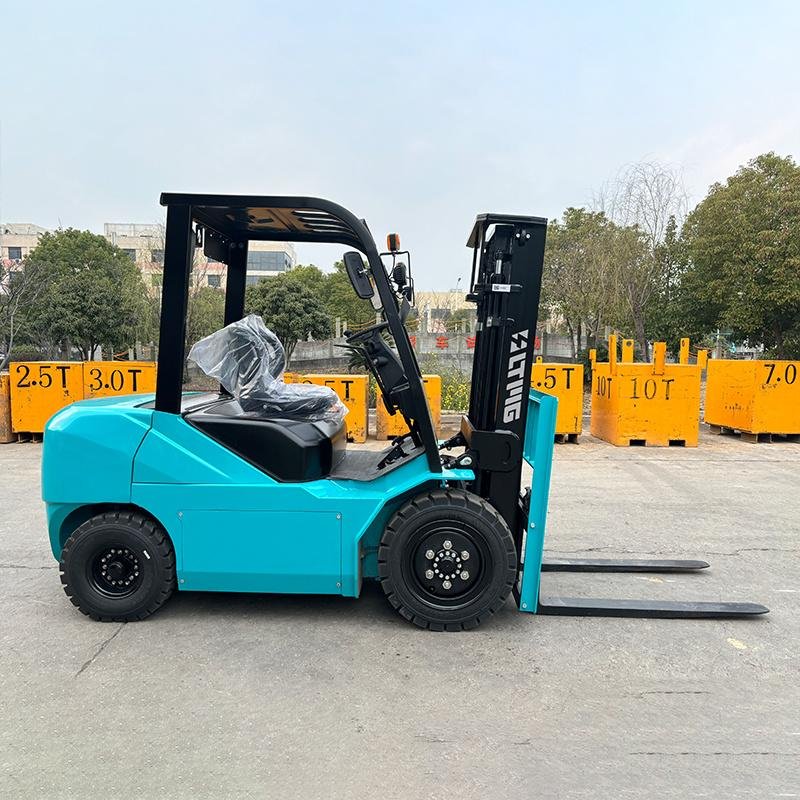

Name: FB30/35 - 3/3.5 Ton Electric Forklift (High-voltage Li-ion)
Brand: LTMG
SKU: SKU-2443-5CUZD
Availability: InStock

FB30/35 - 3/3.5 Ton Electric Forklift (High-voltage Li-ion)

Email to a Friend

FB30/35 - 3/3.5 Ton Electric Forklift (High-voltage Li-ion)

(0 reviews)

$0.00100% Off$0.00

Sold By:LTMG

Power performance surpasses the same capacity engine power forklift. The maximum efficiency of permanent magnet synchronous motor can reach 96%Original CATL liquid cold battery pack. Compatible with the national standard/European standard charging pileHigh -pressure architecture has high integration and low failure rate. IP67 protection rating, which is calmly cope with the complex environmentVehicle-level BMS,hydraulic explosion -proof, buffer, overload protection, power -off protection, multiple insulation testingHydraulic explosion -proof, buffer, overload protection, power -off protection, multiple insulation testingAutomatic parking at slope, turning slowed down, OPS function, three operating modes, remote diagnosis monitoring, reversing voice reminder

SKU:SKU-2443-5CUZD
Categories:More
Brands:LTMG

Specification

Model	Unit	FB30	FB35
Power Type		Lithium battery	Lithium battery
Rated Capacity	kg	3000	3500
Load Centre	mm	500	500
Service weight	kg	4520	4800
lyre &Chassis
Tyre Type(Front/Rear)		Pneumatic	Pneumatic
Wheel numberX=drive wheel (Front/Rear)		2X/2	2X/2
Tyre Size(Front)		28X9-15-14PR	28X9-15-14PR
Tyre Size(Rear)		6.50-10-10PR	6.50-10-10PR
Front Tread	mm	1000	1000
Rear Tread	mm	970	970
Wheelbase	mm	1700	1700
Size
Fork Size(L×WxT)	mm	1070x125x45	1070x125x50
Mast Tilt Angle (F/R)	deg	6/12	6/12
Lift Height	mm	3000	3000
Mast Lowered Height	mm	2115	2150
Mast Extended Height	mm	4180	4180
Length to Face of Fork	mm	2741	2796
Overall Width	mm	1230	1230
Distance From Roof to Seat	mm	1020	1020
Front Overhang	mm	481	506
Rear Overhang	mm	575	610
Turning Radius (outside)	mm	2460	2495
Ground Clearance	mm	140	140
Performance
Max.Travel Speed (Full load/No load)	km/h	20/20	20/20
Lifting Speed (Full load/No load)	mm/s	520/530	430/440
Lowering Speed (Full load/No load)	mm/s	≤600/≥300	≤600/≥300
Max.Gradeability (Full load)	%	20	20
Power &Transmissions
Battery(Type)		Lithium iron phosphate	Lithium iron phosphate
Battery(Voltage/Capacity)	V/Ah	309.12/96	309.12/96
Traction Motor Power,S2-60min	Kw	30	30
Lifting Motor Power,S3-15%	Kw	30	30
Controller		AC	AC
Operating Pressure	Mpa	18	18
Hydraulic Oil Tank Capacity	L	49	49

With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
