Specification

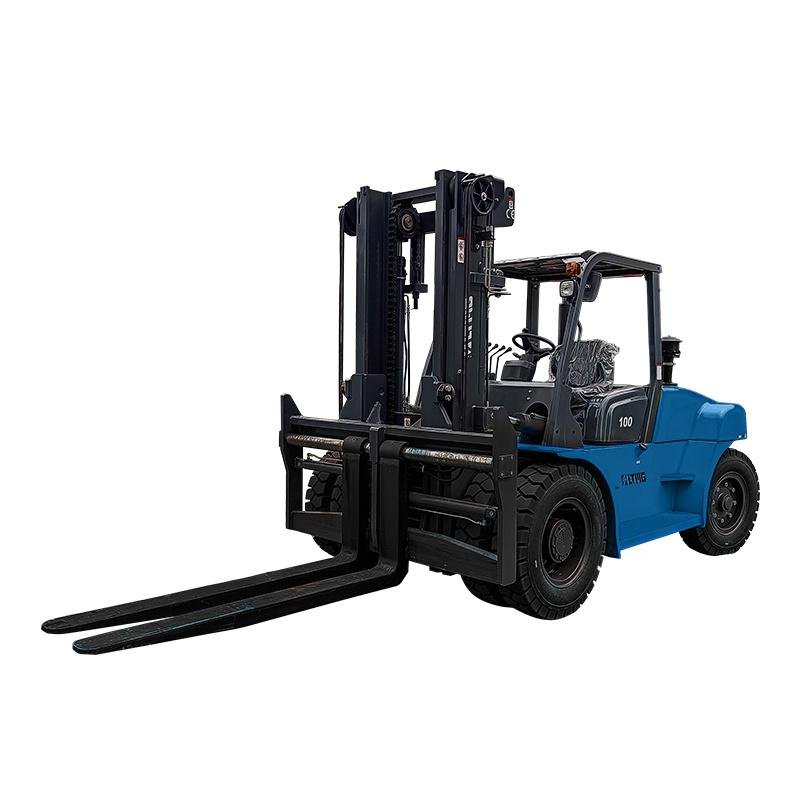

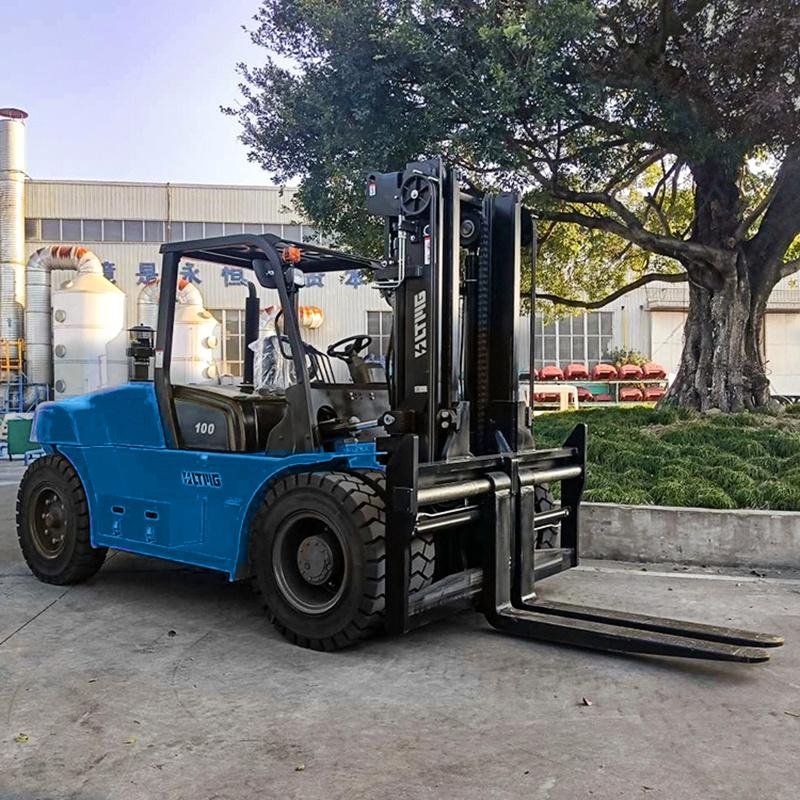

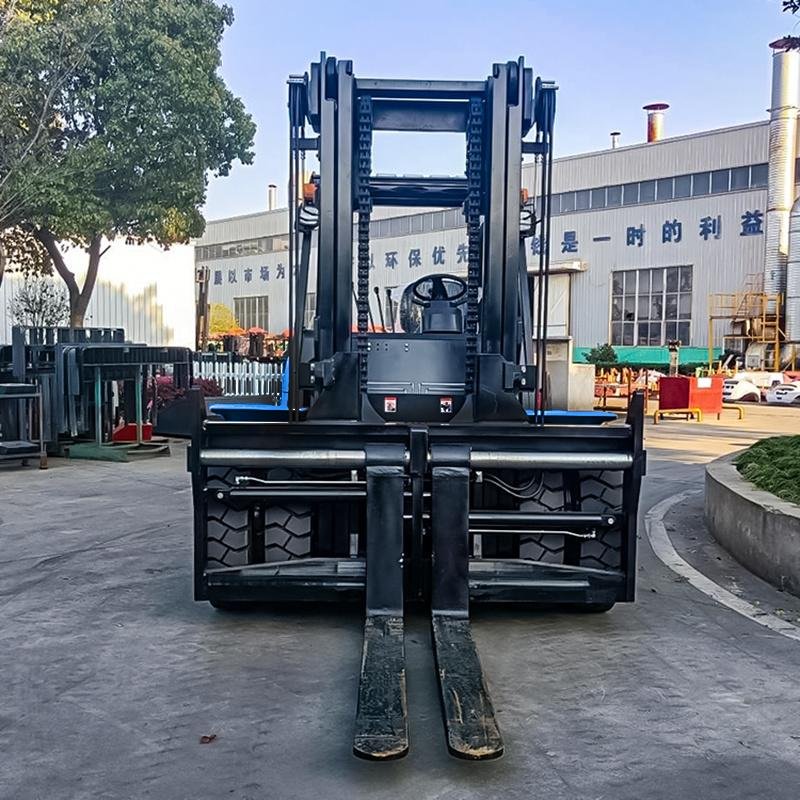

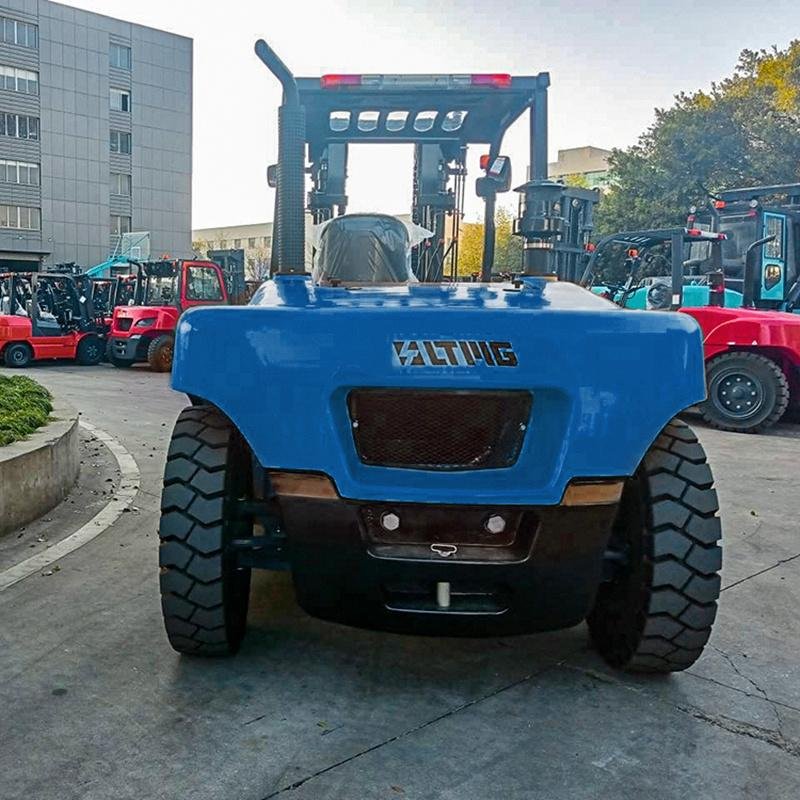

Model | FD100 | |||
Power Type | Diesel | |||
Rated Capacity | kg | 10000 | ||
Load Centre | mm | 600 | ||
Lift Height | mm | 3000 | ||
Fork Size(L×W×T) | mm | 1520×175×85 | ||
Mast Tilt Angle(F/R) | Deg | 6°/12° | ||
Front Overhang (Wheel center to fork face) | mm | 739 | ||
Ground Clearance（Bottom of mast） | mm | 230 | ||
Turning Radius (outside) | mm | 3970 | ||
Max.Gradeability (No load/Full load) | % | 20 | ||
Wheelbase | mm | 2800 | ||
Service weight | kg | 13100 | ||
Overall Dimension | Length to face of fork(Without fork) | mm | 4280 | |
Overall Width | mm | 2170 | ||
Mast Lowered Height | mm | 2830 | ||
Mast Extended Height(With backrest) | mm | 4335 | ||
Overhead Guard Height | mm | 2510 | ||
Speed | Travel (Full load) | km/h | 30 | |
Lifting (Full load) | mm/s | 270 | ||
Tire | Front | mm | 9.00-20-14PR | |
Rear | mm | 9.00-20-14PR | ||
Battery | Voltage/Capacity | V/Ah | (12/80) x 2 | |
Engine | Model | 6BG1-QC02 | 6110 | |
Manufacture | ISUZU | XICHAI | ||
Rated output/r.p.m. | kw | 82.4/2000 | 83/2000 | |
Rated torque/r.p.m. | N·m | 416/1600 | 450/1400-1500 | |
No.of Cylinder | 6 | 6 | ||
No.of Cylinder | mm | 105×125 | 110x125 | |
Displacement | cc | 6494 | 7120 | |
Fuel Tank Capacity | L | 135 | 125 | |
Transmission | Type | Hydraulic | Hydraulic | |
Stage(FWD/RVS) | 2/2 | 2/2 | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
