Specification

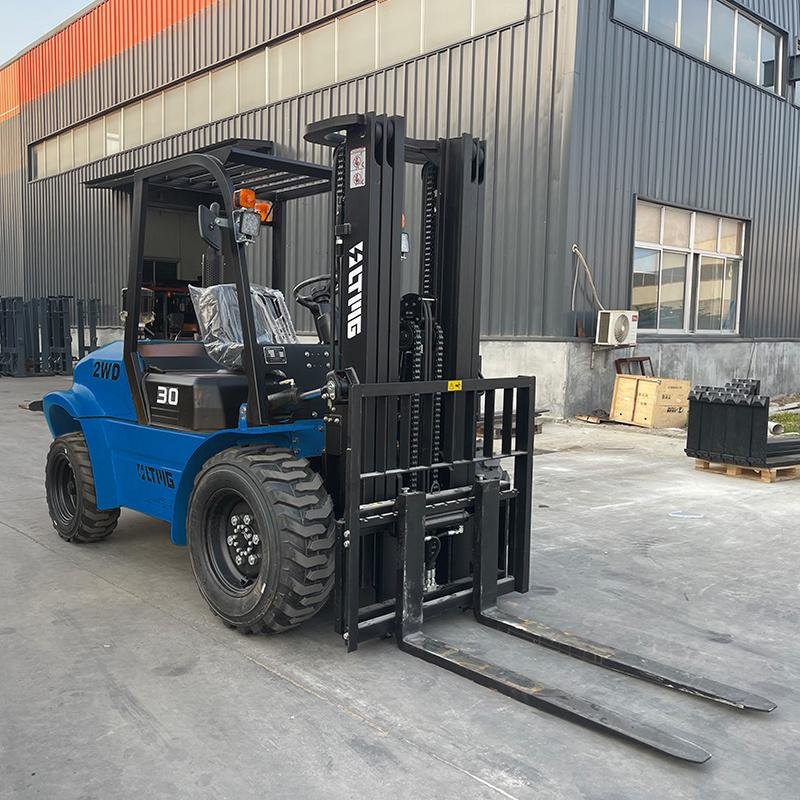

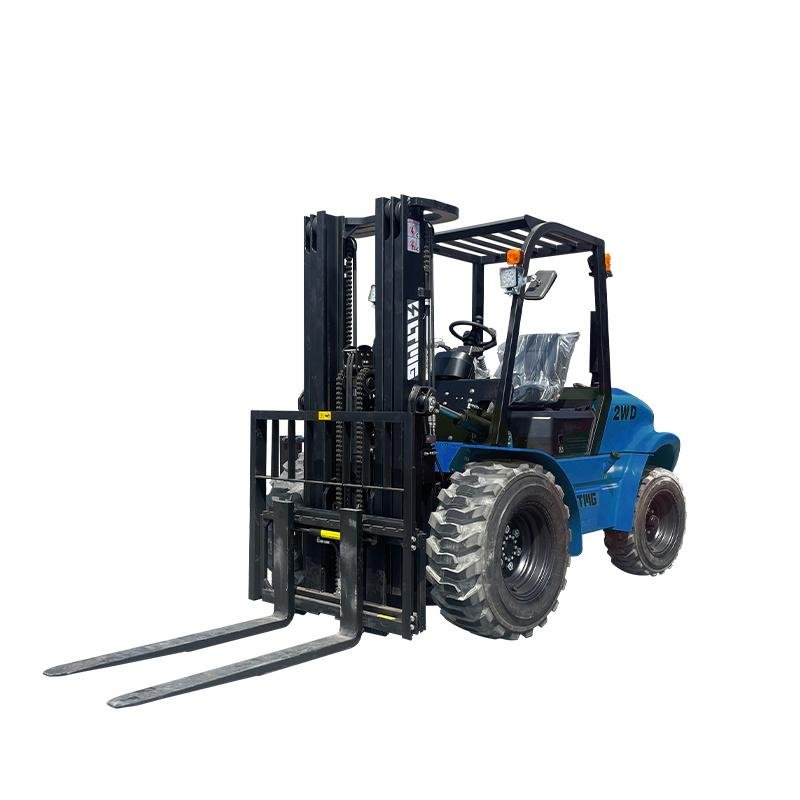

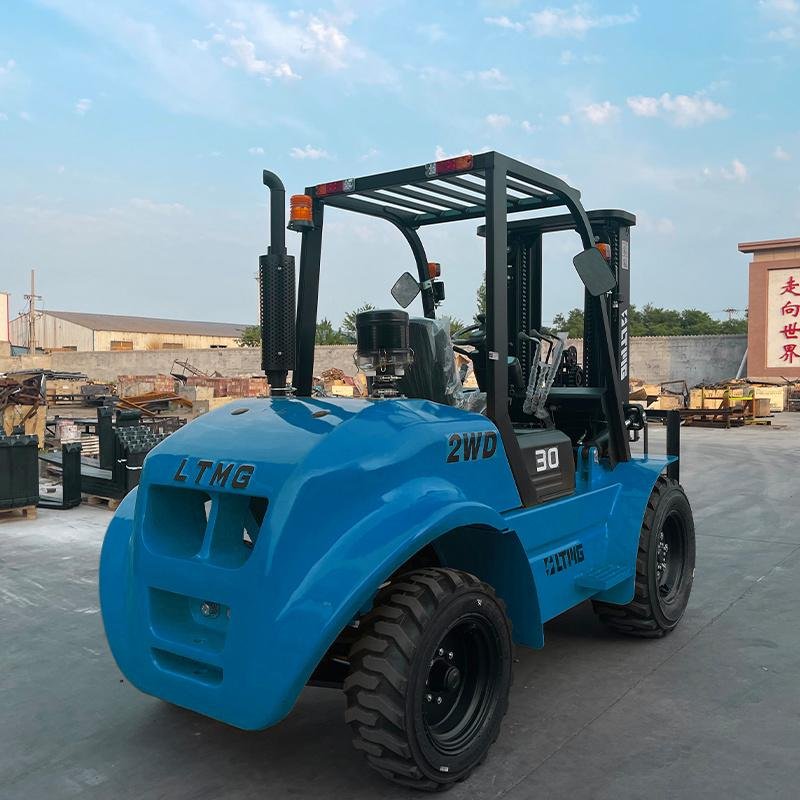

Model | FDR35-2W | ||
Power Type | Diesel | ||
Rated Capacity | Kg | 3500 | |
Load Centre | mm | ||
Lift Height | mm | 3000 | |
Mast Tilt Angle(F/R) | Deg | 8/12 | |
Front Overhang | mm | 590 | |
Wheelbase | mm | 1850 | |
Tread(Front/Rear) | mm | 1300/1205 | |
Lifting Speed(Full Load) | mm/s | 420 | |
Droping Speed(Full Load/No Load) | mm/s | 600/300 | |
Travel Speed (Full Load) | Km/h | 22 | |
Max. Gradeability(Full Load) | % | 16 | |
Weight | Kg | 4950 | |
Fork Size(L×W×T) | mm | 1070x122x50 | |
Length(Without Fork) | mm | 2980 | |
Width | mm | 1550 | |
Mast Extended Height | mm | 4350 | |
Mast Lowered Height | mm | 2185 | |
Overhead Guard Height | mm | 2250 | |
Min. Turning Radius | mm | 2930 | |
Ground Clearance（Bottom of mast） | mm | 220 | |
Engine | Model | 498 | |
Manufacture | XINCHAI | ||
Rated output/r.p.m. | Kw/r | 45/2500 | |
Rated torque/r.p.m. | Nm/r | 193/1800 | |
Displacement | L | 3.17 | |
Battery | Voltage | V | 12 |
capacity | Ah | 80 | |
Transmission | Type | Hydraulic | |
Stage(FWD/RVS) | Ⅰ/Ⅰ | ||
Tire | Type | Pneumatic Tyre | |
Front | 14-17.5-16PR | ||
Rear | 10-16.5-12PR | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
