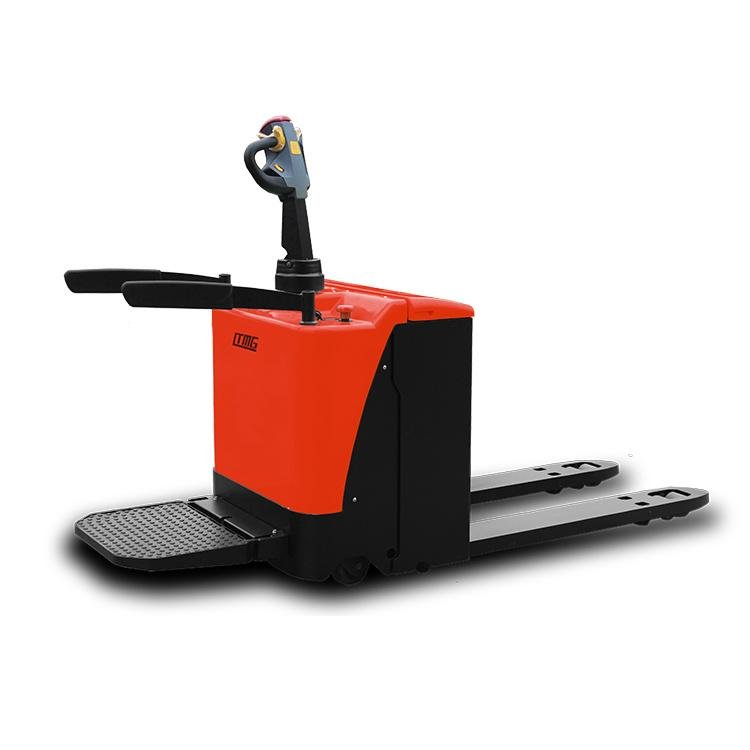

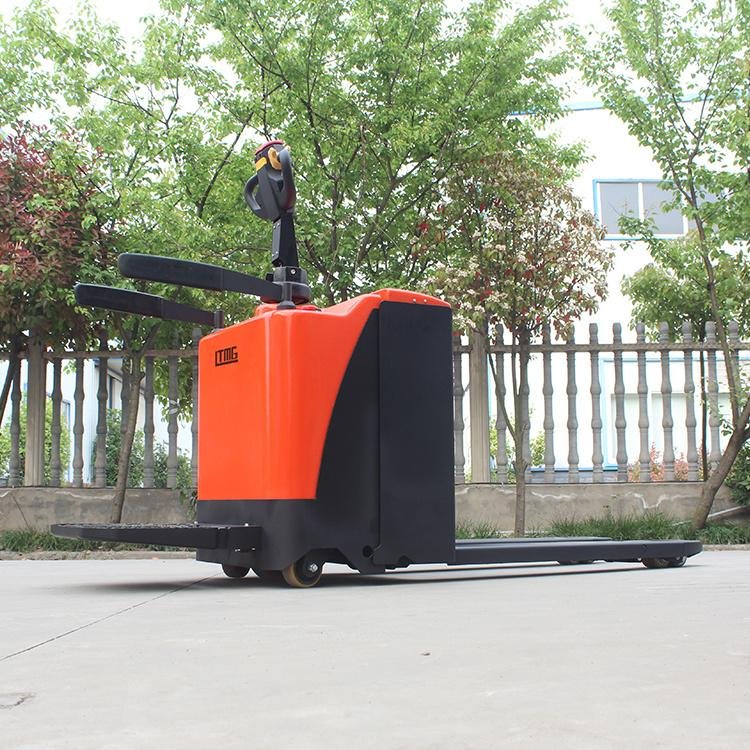

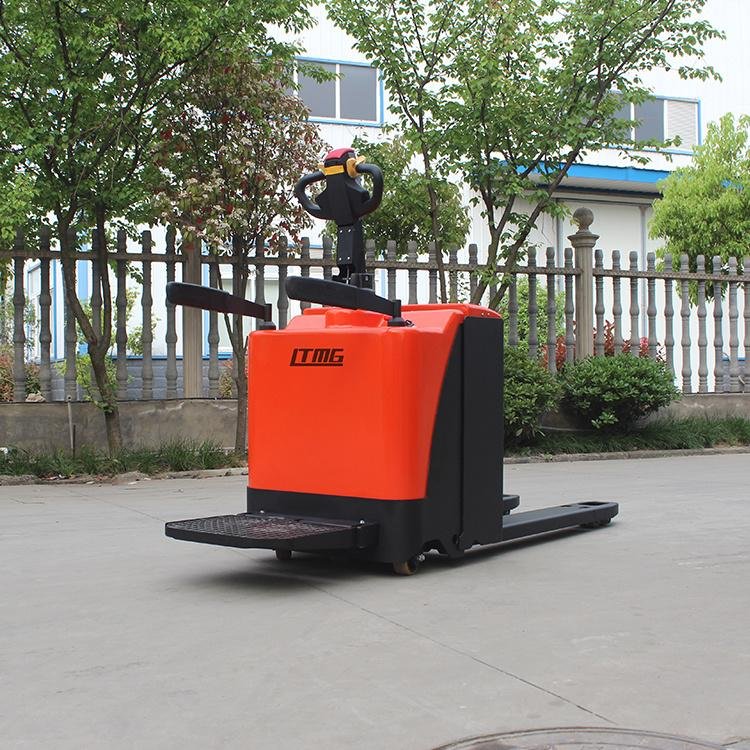

Name: FEP25 - 2.5 Ton Electric Pallet Truck (Stand Type)
Brand: LTMG
SKU: SKU-2443-2NSH3
Availability: InStock

FEP25 - 2.5 Ton Electric Pallet Truck (Stand Type)

Email to a Friend

FEP25 - 2.5 Ton Electric Pallet Truck (Stand Type)

(0 reviews)

$0.00100% Off$0.00

Sold By:LTMG

CURTIS brand electronic control system, controller multiple automatic protection.

Small turning radius, low center of gravity, good steering stability.

Full AC drive system, small size, light weight, maintenance-free, no carbon brush. Stable and efficient.

Fitted with foldable standing sub-pedal and side safety arm. Equipped with high quality damping spring and hydraulic pump station.

Ergonomics designed control handle integrates multiple control( Acceleration, Horn, Emergency reverse button, Lifting and Lowering button)

SKU:SKU-2443-2NSH3
Categories:More
Brands:LTMG

Specification

Electric Pallet Truck (Stand Type)
Features	Model		FEP25
	Power Type		Electric
	Operation type		Stand Type
	Steering type		Electric Steering
	Capacity	Q《kg)	2500
	Load center	C(mm)	600
	wheelbase	Y(mm)	1380
Weight	Total weight including the battery	kg	700
Wheel, Chassis	Wheel type		Pu solid tire
	Front wheel	Ø x w(mm)	80*80
	Rear wheel	Ø x w(mm)	230*75
	Balance wheel	Ø x w(mm)	125*50
size	Max Lifting Height	H (mm)	205
	Fork height with forks lowered	H1(mm)	85
	Fork spread	S1(mm)	685/540
	Body length (pedals retracted/pedals extended)	L (mm)	1825/2240
	Overall width	S(mm)	760
	Fork dimension	s/e/l(mm)	55/175/1150
	Stacking aisle width, pallet 1000x1200 (1000 spans of fork placement) (treads retracted/treads deployed)	Ast(mm)	2220/2620
	carrying distance	X (mm )	970
	Turning radius(treads retracted/treads deployed)	Wa(mm)	1670/2070
performance	Max travel speed(No load /Full)	km/h	6/5.5
	Lifting speed (No load /Full)	m/s	0.043/0.040
	Lowered speed (No load /Full)	m/s	0.035/0.445
	Max.Grade ability (No load /Full)	%	10/8
	Brake Form		Electromagnetic braking
motor	Driving motor)	kw	1.5
	Lifting motor	kw	0.8DC
	Battery type		Lead acid battery
	Battery capacity	V/Ah	24/210
	Charger-Intelligent	V/A	24/30
other	Drive control mode		ac
other	Driver's ear noise level according to EN12053	dB(A)	75

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
