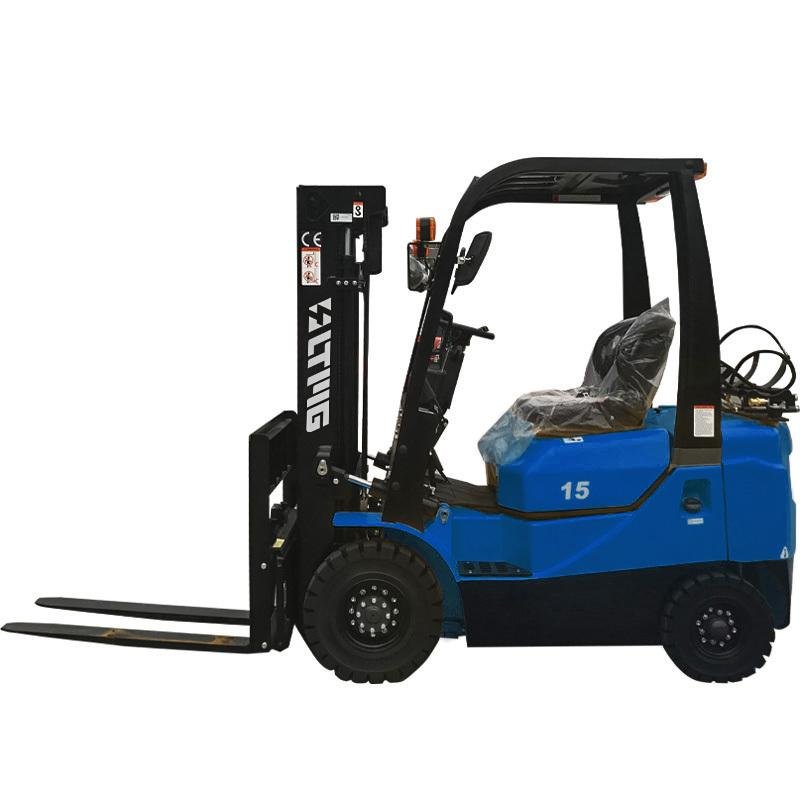

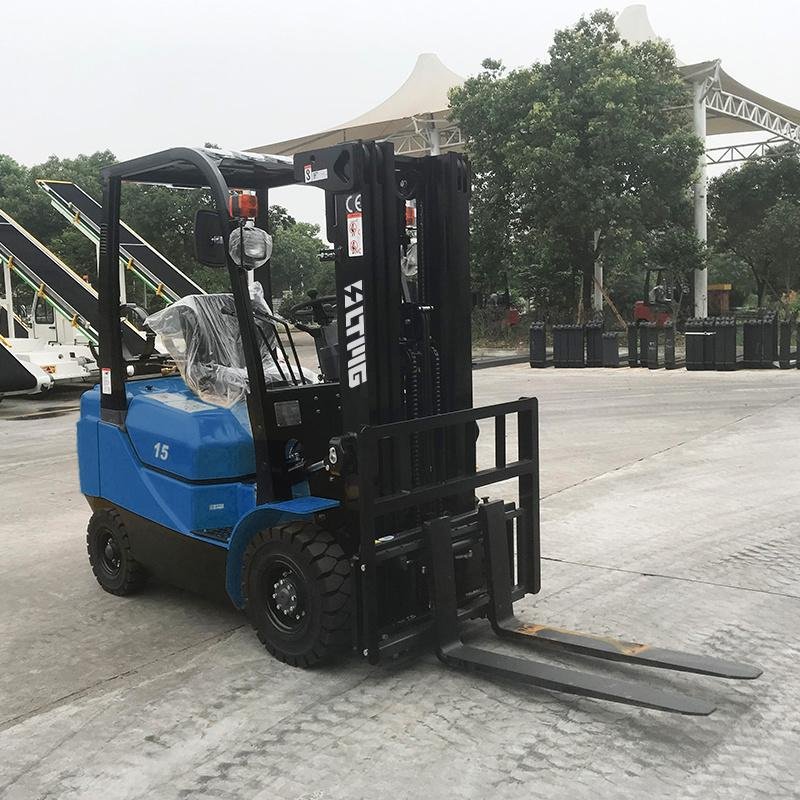

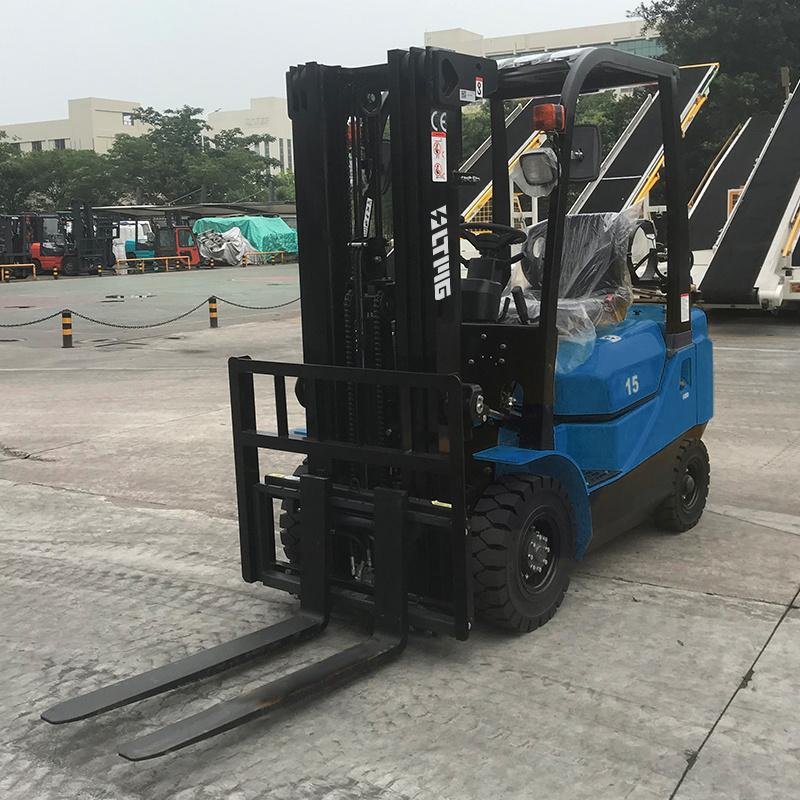

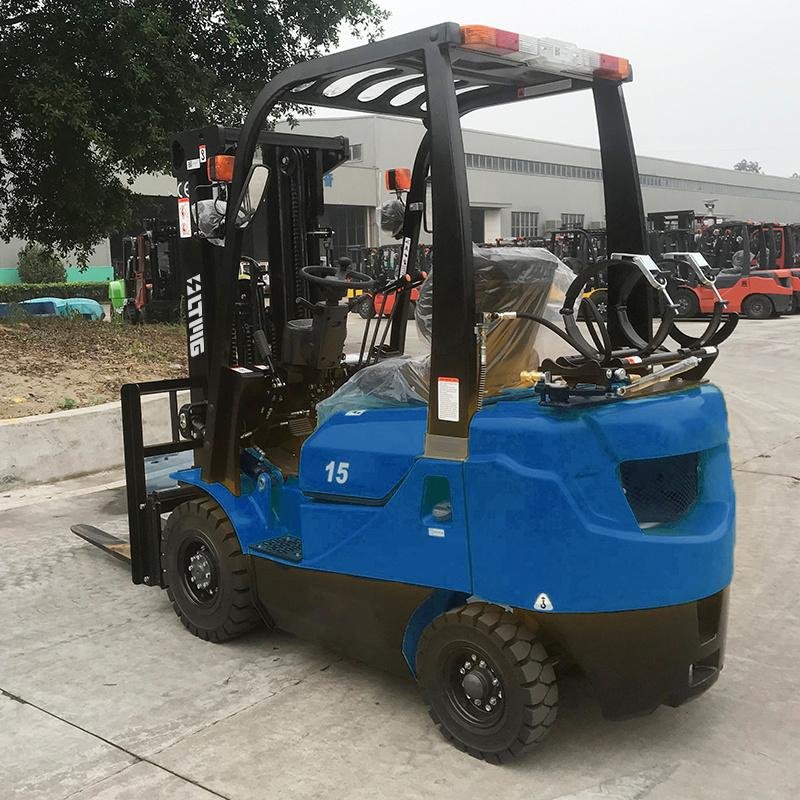

Name: FG15 - 1.5 Ton LPG/Gasoline Forklift
Brand: LTMG
SKU: SKU-2443-93D8W
Availability: InStock

Email to a Friend

FG15 - 1.5 Ton LPG/Gasoline Forklift

(0 reviews)

$0.00

Sold By:LTMG

By focusing on enhancing reliability, reducing downtime,the LPG series is able to make the greater productivity for customer.

All the locations of the engine oil level dipstick, ﬁlter of hydraulic,water separator are easy to reach,and very easy for engineer to check.

The new design mast provides broad forward visibility due to the distance between inside mast is increase 60mm.

The new efficiency LED lighting system and new type reﬂector reduce energy consumption, improve illumination performance and prolong working life.

Overhead guard heightening design, the roof with high-strength steel plate stamping. The height can meet the requirements of European and American customers.

SKU:SKU-2443-93D8W
Categories:More
Brands:LTMG

Specification

			FG15
Rated load		kg	1500
Load center distance		mm	500
Lift Height		mm	3000
Free Iift height		mm	155
Fork size（L×WxT）		mm	920×100×40
Mast tilt angle（FR/RR）			6/12
Min. tuming radius		mm	1955
Min. right angle stacking length		mm	3365
Min. right angle aisle width		mm	2155
Min. ground clearance		mm	110
Height of overhead guard		mm	2060
Maximum travel speed（Full load）		km/h	14.6
Maximum lift speed（Full load）		mm/s	510
Maximum drawbar pull（Full load）		KN	14
Gradeabity		%	20
Overall length（Without forks）		mm	2235
Overall width		mm	1080
Fork height at maximum lift		mm	3930
Mast height		mm	2010
Tires	Front wheel		6.50-10-10PR
Tires	Rear wheel		5.00-8-10PR
Wheelbase		mm	1400
Self weigh		Kg	2790
Battery	Voltage/capacity	V/Ah	12/80
Engine	Model		NISSAN
	Rated output	kw/r.p.m	31.2/2250
	Rated torque	Nm/t.p.m	143.7/1600
	Bore x stroke	mm	83×100
	Number of cylinders		4
	Displacement	L	2.164
Fuel tank capacity		L	49
Transmissions(FWD/RWD)			1/1 Manual shit
Operating pressure		Mpa	15.5
Tire type(FRV/RR)			Pneumatic

With technological innovation our product configuration and parameters will continue to change without notice;

if there is any doubt the specific confirmation of our international trade sales shall prevail;
