Name: FG70-7 Ton LPG/Gasoline Forklift
Brand: LTMG
SKU: SKU-2443-KGD5I
Availability: InStock

Email to a Friend

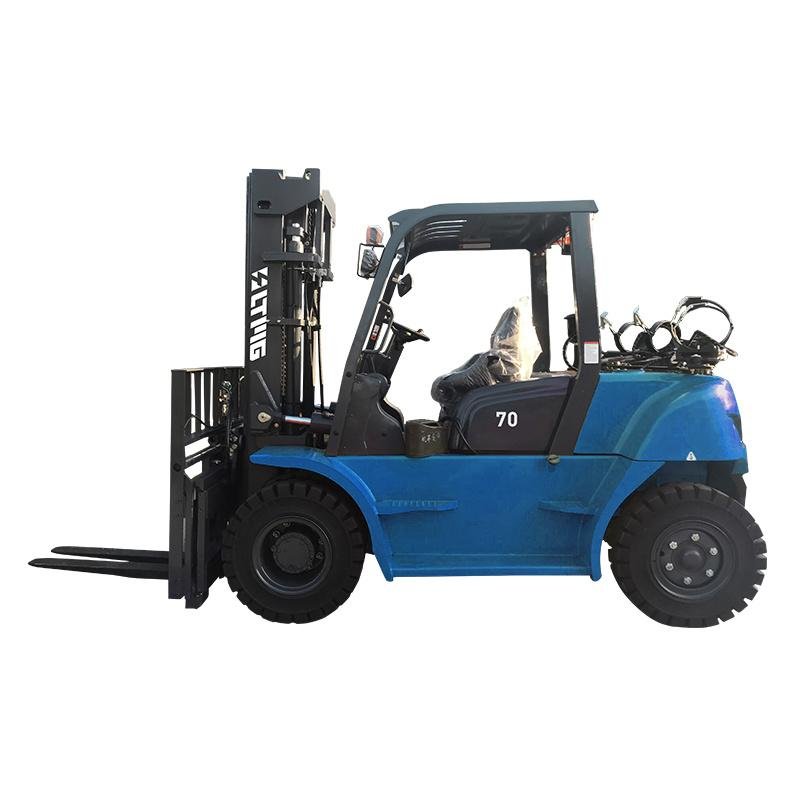

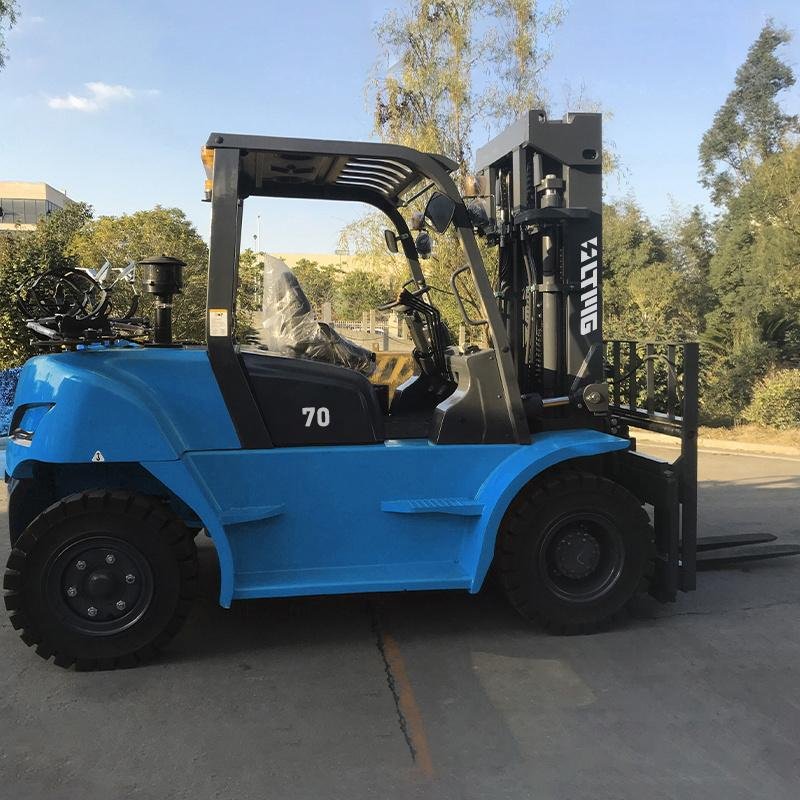

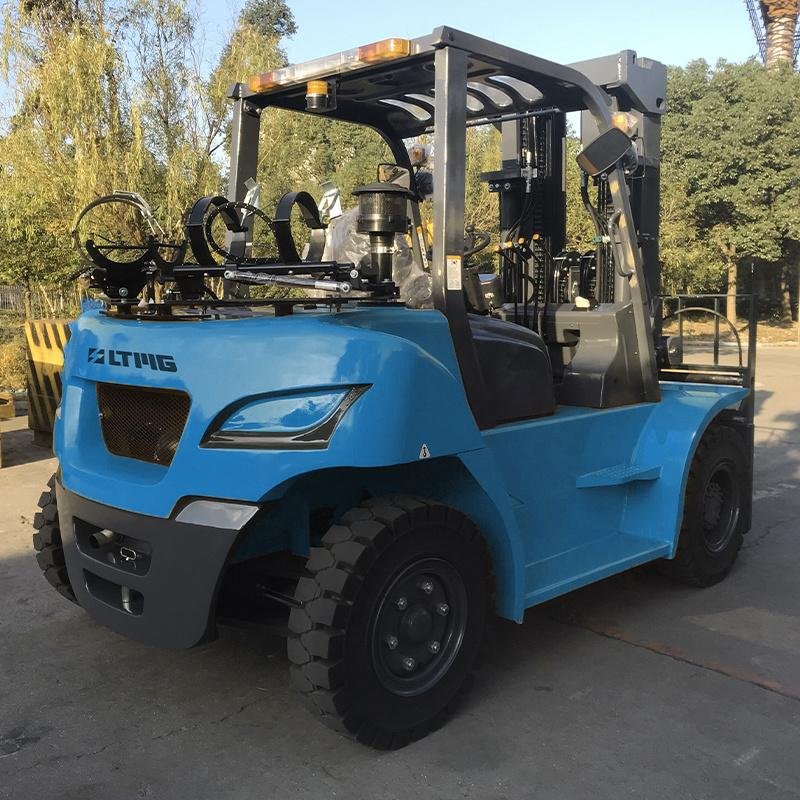

FG70-7 Ton LPG/Gasoline Forklift

(0 reviews)

$0.00

Sold By:LTMG

The small diameter steering wheel with tilt adjustment provides the ideal operating position. The superior responsiveness of the steering wheel optimizes maneuverability even in narrow spaces.

By focusing on enhancing reliability, reducing downtime,the LPG series is able to make the greater productivity for customer.

The new stamped aircleaner featuing tangential intake, double seal with safety filter is durable, cortosion-fee and vibration resistant, provides better fiter efficiency and lower intake resistance than theprevious.

The patent plated-fin type aluminum radiator is applied, the heat exchanging is approvedand improves the capability for operation in severe environments.

By optimizing transmission design, the power train provides higher efficiency, and the Max. driving speed is increased 20%.

SKU:SKU-2443-KGD5I
Categories:More
Brands:LTMG

Specification

Model		FG70
Power Type		LPG
Rated Capacity		7000
Load Centre		600
Lift Height		3000
Fork Size(L×W×T)		1220×150×70
Mast Tilt Angle(F/R)		6°/12°
Front Overhang (Wheel center to fork face)		595
Ground Clearance（Bottom of mast）		200
Overall Dimension	Length to face of fork(Without fork)	3565
	Overall Width	2010
	Mast Lowered Height	2500
	Mast Extended Height(With backrest)	4415
	Overhead Guard Height	2430
Turning Radius (outside)		3350
Tire	Travel (Full load)	30
Tire	Lifting (Full load)	460
Max.Gradeability		20
Tire	Front	8.25-15-14PR
Tire	Rear	8.25-15-14PR
Wheelbase		2250
Service weight		9750
Battery	Voltage/Capacity	12/120
Engine	Model	PSI4.3L
	Manufacture	PSI
	Rated output/r.p.m.	76/2300
	Rated torque/r.p.m.	324/1700
	No.of Cylinder	6
	No.of Cylinder	101.6×88.4
	Displacement	4300
	Fuel Tank Capacity	125
Transmission	Type	Hydraulic
Transmission	Stage(FWD/RVS)	2/2

With technological innovation our product configuration and parameters will continue to change without notice;

if there is any doubt the specific confirmation of our international trade sales shall prevail;
