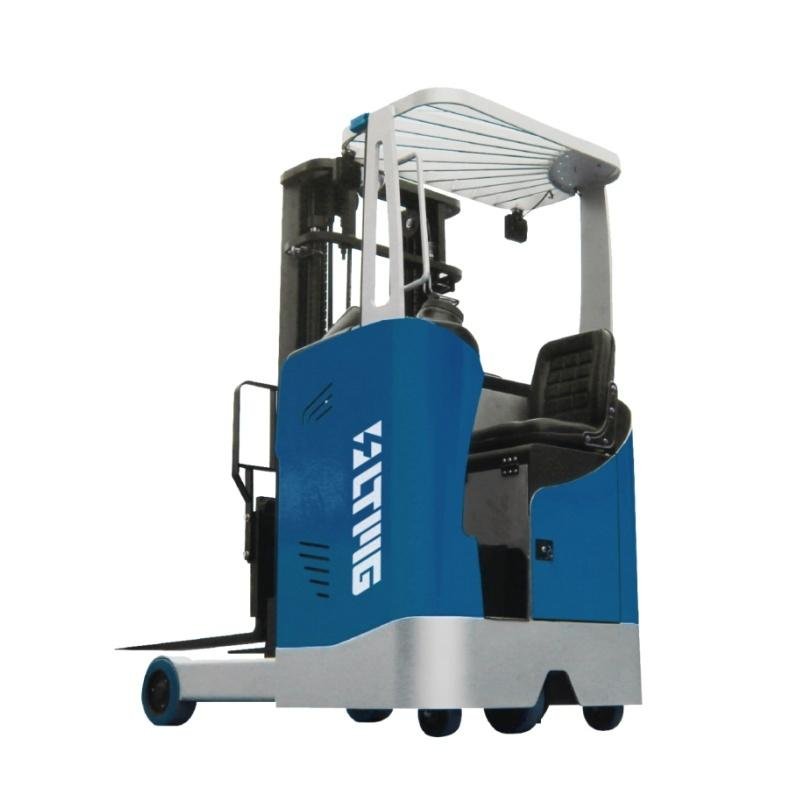

Name: FRB12/15 - 1.2/1.5 Ton Electric Reach Truck (seated)
Brand: LTMG
SKU: SKU-2443-UF9IY
Availability: InStock

FRB12/15 - 1.2/1.5 Ton Electric Reach Truck (seated)

Email to a Friend

FRB12/15 - 1.2/1.5 Ton Electric Reach Truck (seated)

(0 reviews)

$0.00100% Off$0.00

Sold By:LTMG

U.S. CURTIS Controller: Equipped with a CURTIS controller that features a self-diagnostic system. Fault codes are displayed via a handheld unit, making troubleshooting more convenient.

Energy-efficient EPS Steering: Reduces energy consumption by 20%, ensuring precise and smooth operation. The steering is light and flexible, reducing driver fatigue and significantly improving productivity.

Suitable for Large Load and High Lift Storage Applications: Designed for single and double-sided pallets with a mast that can move forward as a whole. It has a small turning radius, allowing it to bypass obstacles at the bottom of the racks.

Safety in Lift Lever Operation: When the lift lever is in a safe lowering position, the fork's descent speed automatically slows down when it is 10 cm from the ground, effectively preventing damage to goods due to vibration.

Powerful AC Drive Motor: The robust AC drive motor allows for smooth starts without the need for complex acceleration operations, reducing both operating and maintenance costs.

SKU:SKU-2443-UF9IY
Categories:More
Brands:LTMG

Specification

Model No.	Unit	FRB12	FRB15
Power type		(Full-Electric)	(Full-Electric)
Capacity	KG	1200	1500
Max Lifting Height	H2(mm)	3000	3000
Load center	C(mm)	500	500
Wheel type		Pu solid tire
The door frame Angle		3/5	3/5
Fork dimensions	mm	107010035	107010035
Fork spread	mm	210-705	210-705
Reach distance	mm	555	555
Overall length including fork	L(mm)	2245	2245
Overall width	S(mm)	1090	1090
Height--Mast Lowered	H1(mm)	2100	2100
Maximum height when fork is lifting	H(mm)	3965	3965
Turning radius	Wa(mm)	1670	1670
The height of overhead guards	mm	2280	2280
Min. stacking aisle	mm	2700	2700
Min ground clearance	mm	70	70
Max travel speed	Km/h	4/5	4/5
Grade ability	%	6/8	6/8
Total weight	KG	2000	2200
Driving Wheel	mm	Ø230*75
front wheel	mm	Ø210*85
Balance wheel	mm	Ø150*50
Battery capacity	V/Ah	24/280	24/280
Charger-Intelligent	V/A	24/40	24/40
Driving motor	Kw	2.5	2.5
Lifting motor	Kw	3.0	3.0
Drive Controlling Type		2.5（AC）	2.5（AC）
Walking Adjustable Type		Holzer type accelerator
Walkie brake		Electromagnetic

if there is any doubt, the specific confirmation of our international trade sales shall prevail;

With technological innovation, our product configuration and parameters will continue to change without notice;
