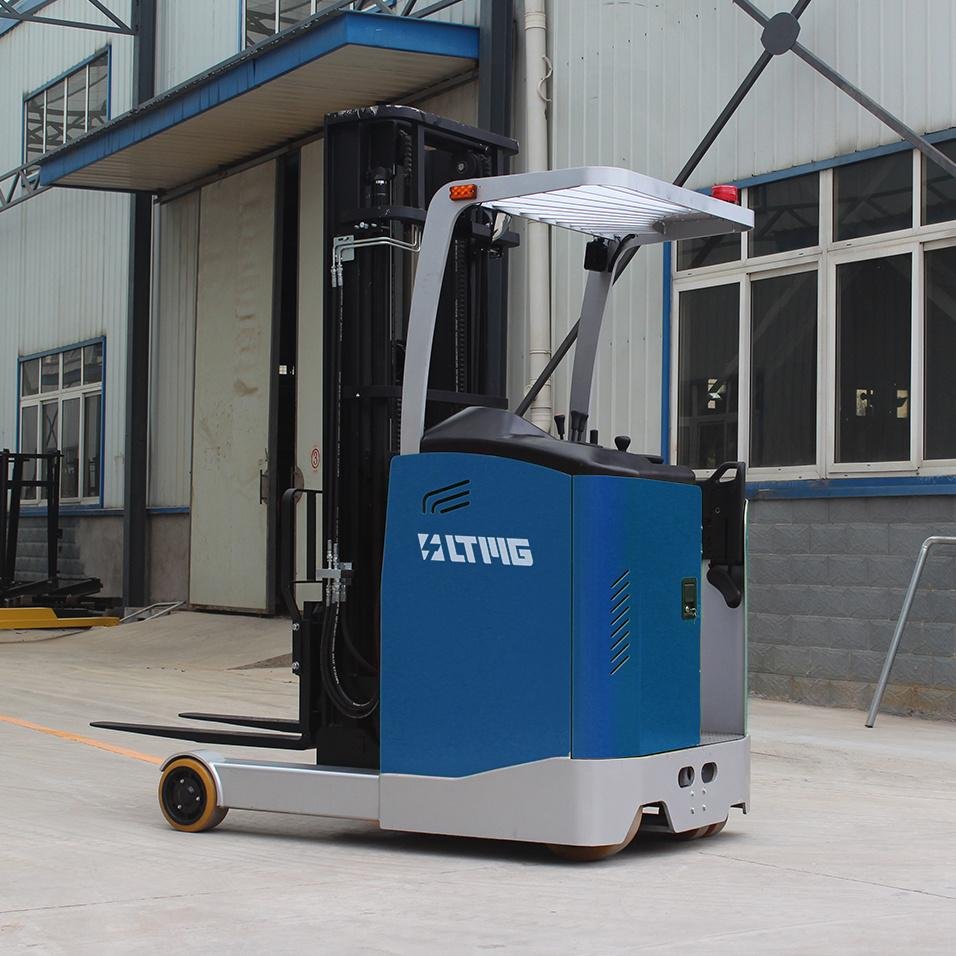

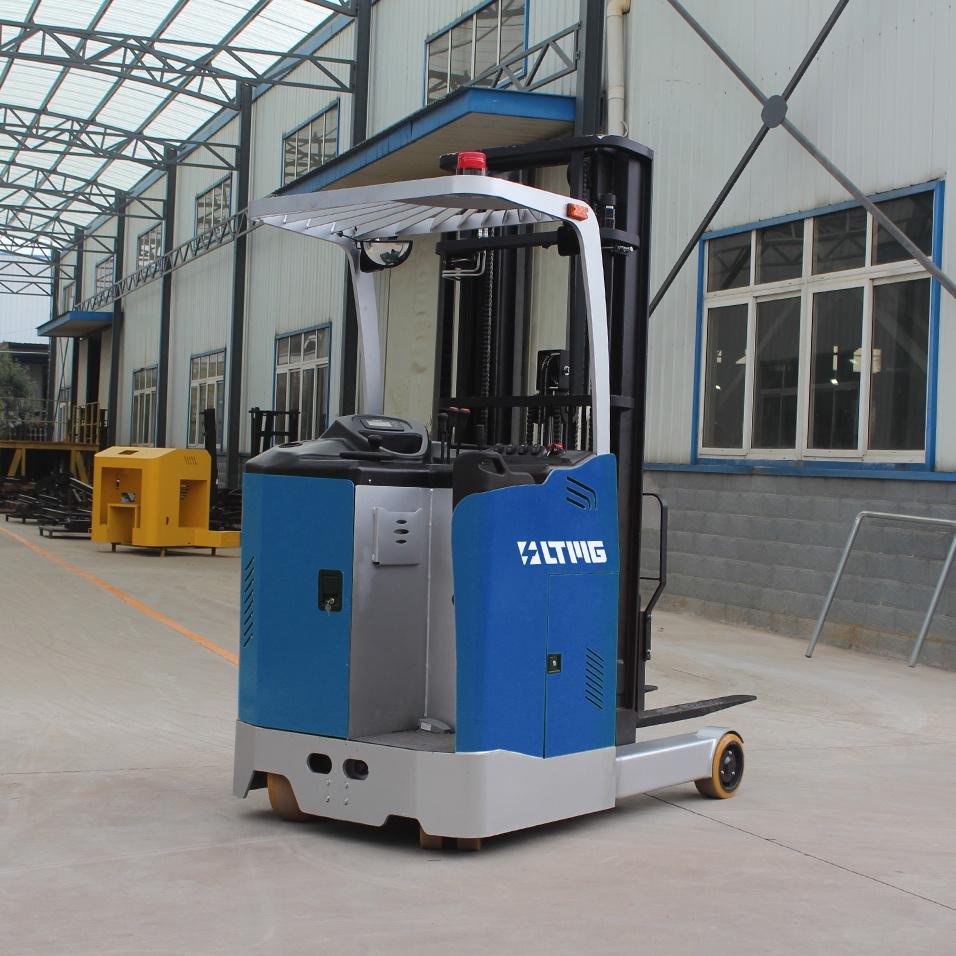

Name: FRB15/20/25 - Electric Reach Truck 48V（stand-type）
Brand: LTMG
SKU: SKU-2443-LKZTG
Availability: InStock

FRB15/20/25 - Electric Reach Truck 48V（stand-type）

Email to a Friend

FRB15/20/25 - Electric Reach Truck 48V（stand-type）

(0 reviews)

$0.00

Sold By:LTMG

The truck's compact design allows for greater operational flexibility. The drive unit is centrally positioned, giving the vehicle a low center of gravity and excellent stability. This makes it ideal for heavy-duty and high-lift storage applications.Features an overall forward-moving mast with a small turning radius, allowing it to navigate obstacles at the bottom of racks. This makes it suitable for operations in confined spaces, enabling easier and more convenient load handling.Equipped with an all-AC drive system that offers strong climbing ability, maintenance-free operation, regenerative braking, good operational stability, and high efficiency. This eliminates the need for replacing carbon brushes in DC motors, reducing maintenance and upkeep.Uses the American CURTIS controller, which includes multiple automatic protection systems to ensure a higher level of functional safety.Equipped with an intelligent high-definition display, it provides real-time information on vehicle operation and displays faults, making it easier to diagnose and repair issues.

SKU:SKU-2443-LKZTG
Categories:More
Brands:LTMG

Specification

Features

1.1

Model

FRB15

FRB20

FRB25

1.2

Power Type

Electric

1.3

Operation type

Stand-on Type

1.4

Capacity

Q(kg)

1500

2000

2500

1.5

Load center

C(mm)

500

1.6

wheelbase

Y(mm)

1383

1533

1693

1.7

Forward moving distance

L(mm)

500

594

565

Weight

2.1

Self weight with battery

2700

3025

3200

Wheel, chassis

3.1

Wheel type

Pu solid tire

3.2

Front wheel specification

Ø x w(mm)

267*114

3.3

Driving Wheel specification

Ø x w(mm)

382*142

3.4

Balance wheel specification

Ø x w(mm)

180*76

3.5

The front track width

b10(mm)

1081

1155

Size

4.1

Height when mast retracted

h1(mm)

2100

2360

4.2

Free lifting height

h2(mm)

1500

4.3

Lifting height

h3(mm)

4500

4.4

Maximum mast lifting height

h4(mm)

5480

4.5

Overhead guard height

h14(mm)

2280

220

4.6

Forks height when mast retracted

h13(mm)

4.7

Mast/forks tilting angle the front/the rear

3/5

4.8

Overall vehicle body length (forks excluded/included)

I2(mm)

1752/2400

1902/2403

2060/2550

4.8

Vehicle width

b1(mm)

1195

1270

4.10

Forks dimension

s/e/l(mm)

35/100/1070

40/122/1070

45/125/1070

4.11

Forks adjustment dimensions

b5(mm)

210-705

244-705

4.12

Minimum ground clearance (wheelbase center)

m2(mm)

4.13

Stacking aisle width， pallet1000×1200 (1200 placed cross forks)

Ast(mm)

2730

2882

3042

4.14

Minimum turning radius

Wa(mm)

1680

1836

1996

Performance

5.1

Max travel speed(No load /Full)

km/h

8/7

5.2

Lifting speed (No load /Full)

m/s

0.330/0.245

0.300/0.235

5.3

Lowering speed (No load /Full)

m/s

0.260/0.325

0.270/0.315

0.330/0.400

5.4

Max.Gradeability(No load /Full)

<10

5.5

Service brake

Electromagnetic

Motor

6.1

Drive motor power

4.5

6.5

6.2

Lifting motor power

6.3

Battery type

Lead acid battery

6.4

Battery capacity

V/Ah

48/300

48/400

6.5

Battery charger

V/A

48/40

48/50

Other

7.1

Drive control mode

7.2

Driver's ear noise level according to EN12053

dB(A)

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
