Specification

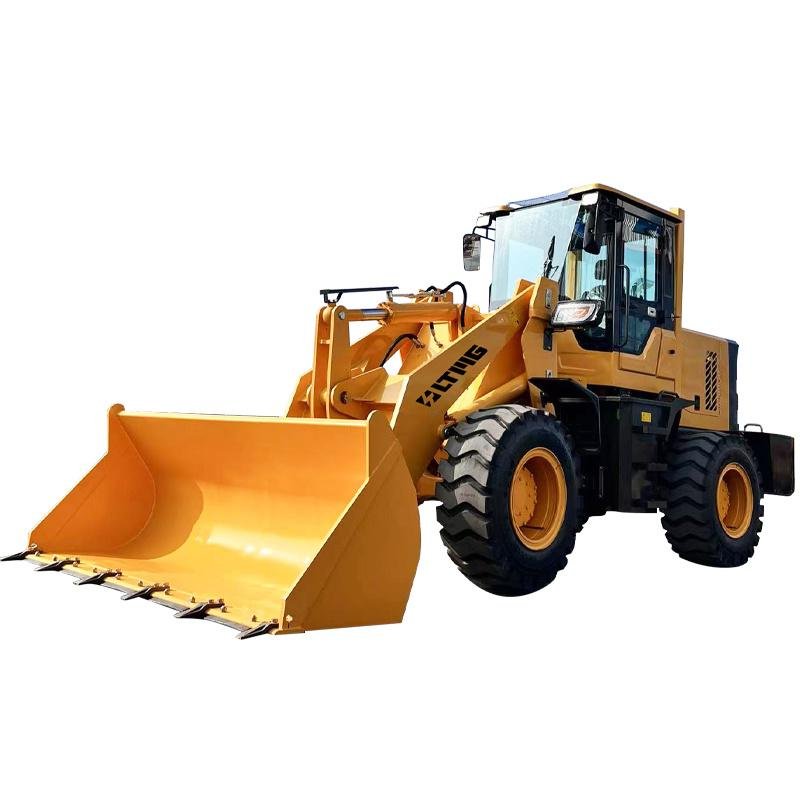

Model | LT925 |
Rated Capacity | 2500 kg |
Operating Weight | 6400 kg |

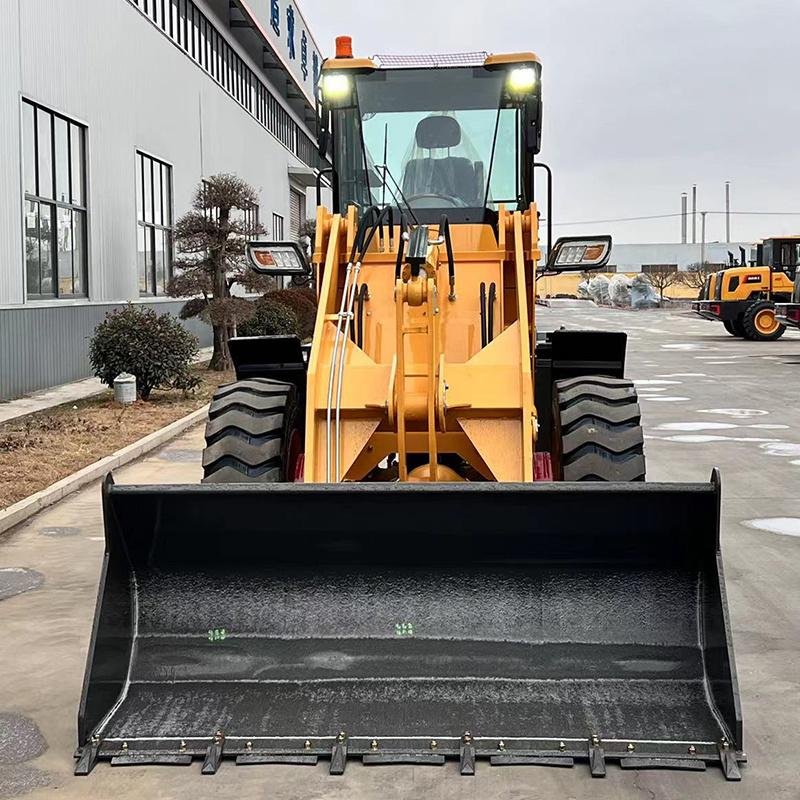

Bucket Capacity | 1.3 m³ |
Max. Dumping Height | 3600 mm |
Max. Dumping Distance | 1000 mm |
Overall Dimension(L×W×H) | 6400x2300x2950mm |
Engine | Yuchai |
Cylinder Number | 4 |
Rated Power | 85 KW |
Steering Type | Full-hydraulic, articulated |
Torque Converter Type | Automatic, hydraulic converter |
Gear Shift | 4 forward, 4 reverse |
Max. Speed | 36 km/h |
Axle | 4WD, heavy hub reduction |
Tire Size | 16/70-24 |
Wheelbase | 2700mm |
Wheel Tread | 1660mm |
Service Brake | Gas cap oil disc brake on 4 wheels |
Parking Brake | Hand operated caliper disc |
Operating Type | Mechanical single joystick |
Optional Operating Type | Pilot control |

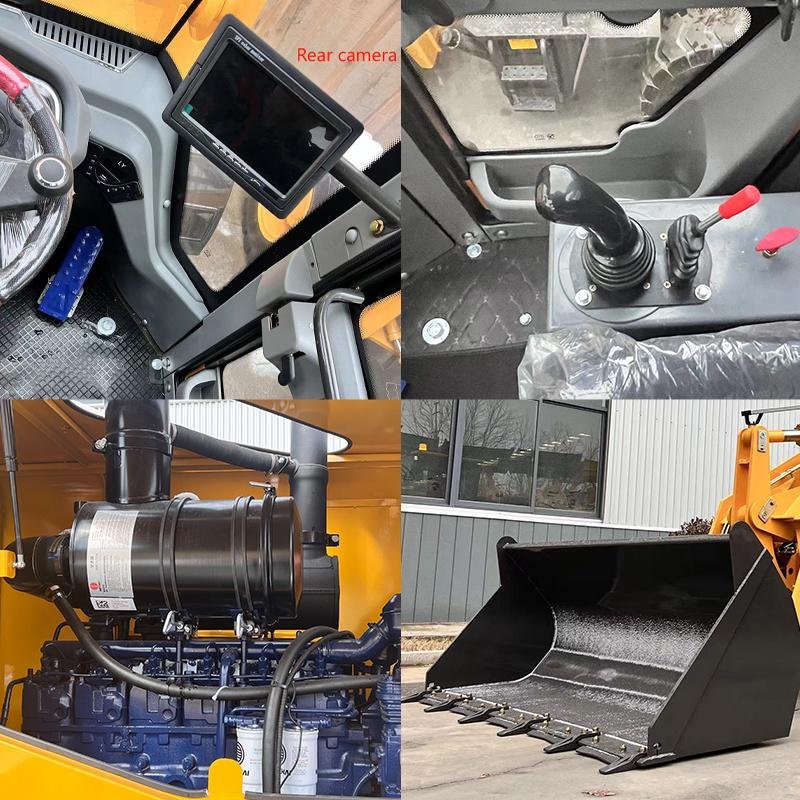

Optional Configuration | Air conditioner, rearview camera etc. |
Optional Attachment | Quick hitch, fork, log grapple etc. |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
- Address: No. 506, Xinglinwan Road, Jimei District, Xiamen, Fujian, CN
With the mission of making the world greener, LTMG has focused on the construction machinery industry for more than 20 years. From R&D and production to reaching global customers, LTMG has always been quality-oriented and excellent service, conveying the power of China's machinery manufacturing to the world
