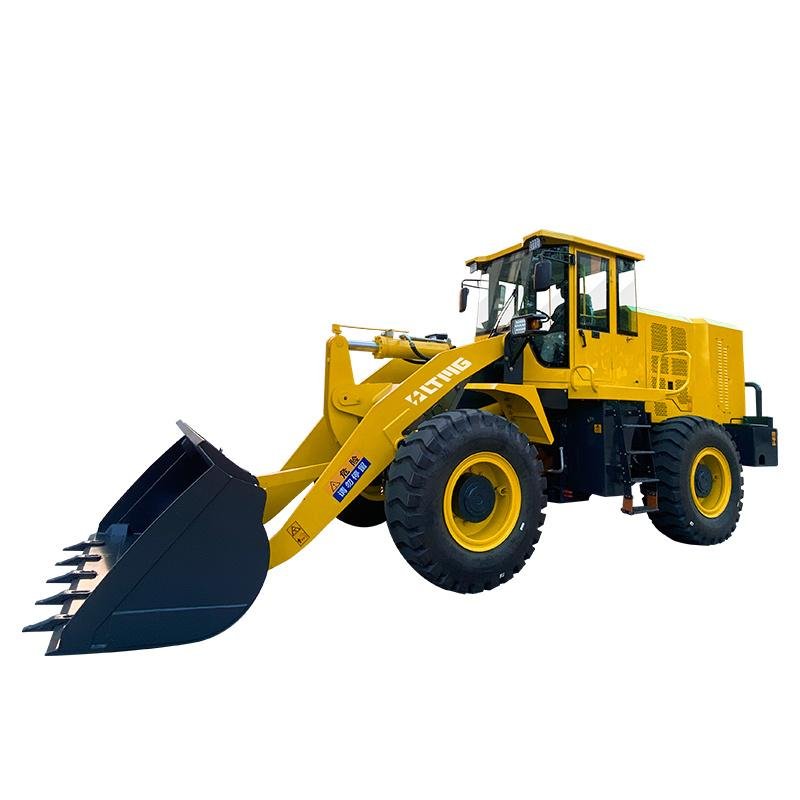

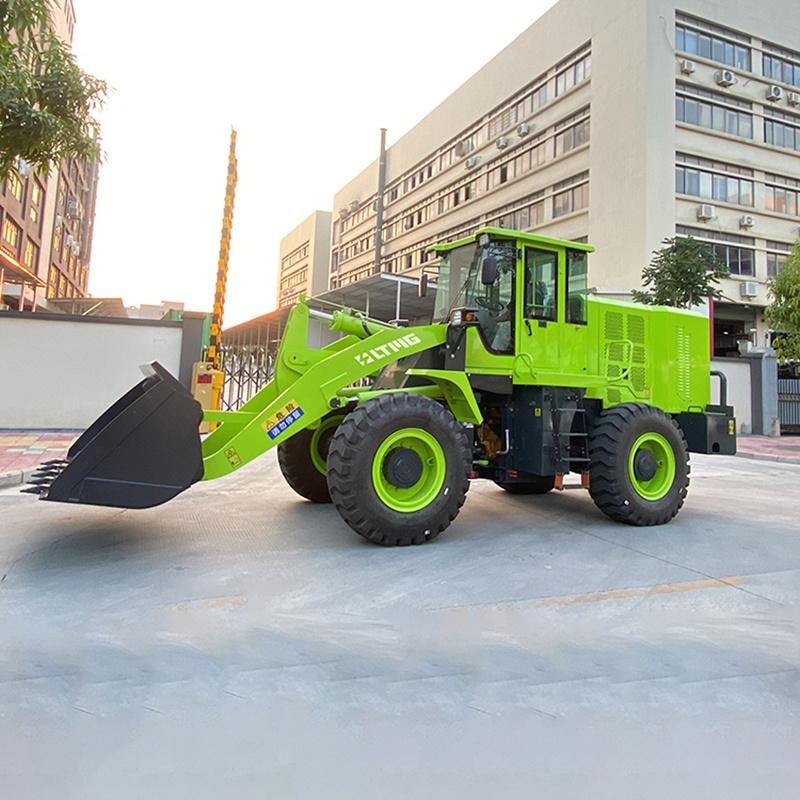

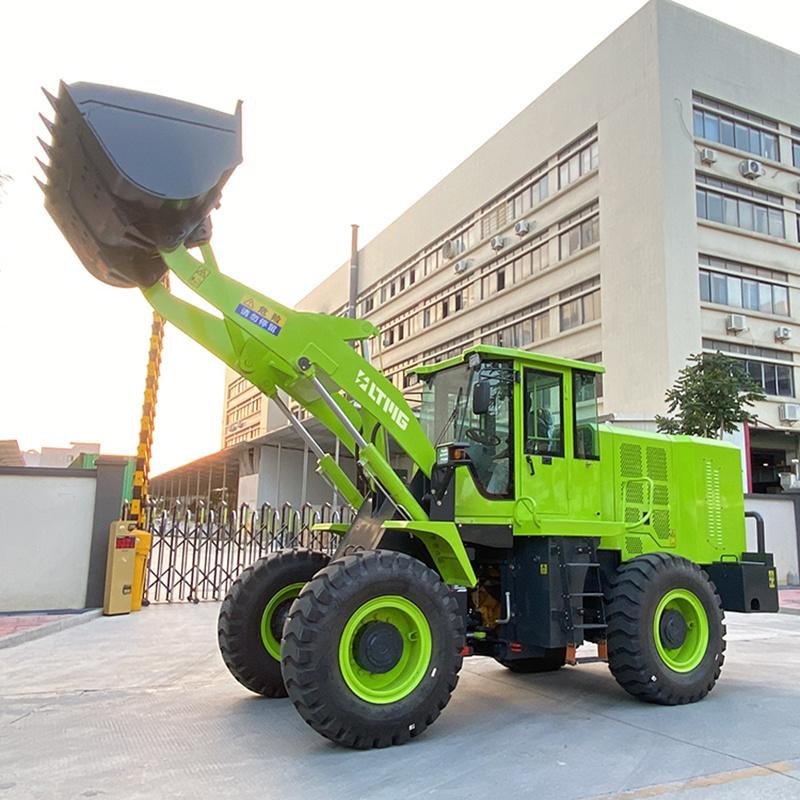

Name: LT930EV - 3 Ton Electric Loader
Brand: LTMG
SKU: SKU-2443-X73CD
Availability: InStock

Email to a Friend

LT930EV - 3 Ton Electric Loader

(0 reviews)

$0.00

Sold By:LTMG

Vehicle intelligence level is high, safe and comfortable, energy saving.

Reinforced heavy-duty frame with strong load-bearing capacity and enhanced strength of structural parts to adapt to heavy-duty working conditions.

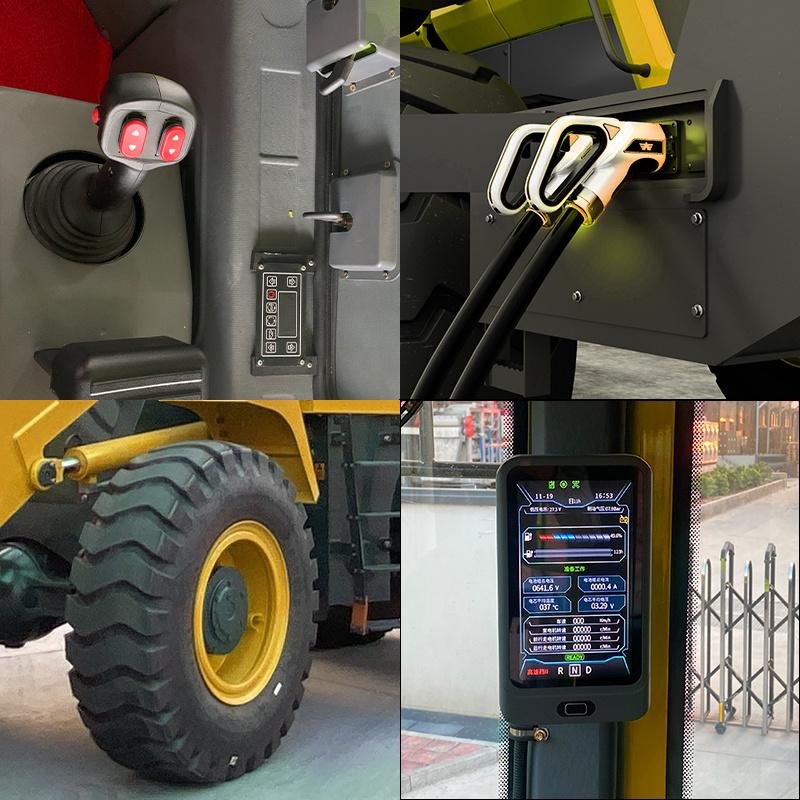

The controller is integrated into an all-in-one controller with dual motors running independently of each other.

Dual gun fast charging, fast charging in extreme cold and hot environments.

Reinforced heavy-duty drive axle with high load carrying capacity, optimised and enlarged axle shell cross-section,reinforced main reduction and wheel edges for more stable and reliable quality.

Adopting high-efficiency permanent magnet synchronous motor to provide power for the whole machine, compared with the traditional engine, it is small in size, light in quality, high in power density and high in reliability.

SKU:SKU-2443-X73CD
Categories:More
Brands:LTMG

Specification

Model		LT930EV
Rated Load		3000kg
Bucket Capacity		2m³
Operating Weight		10500kg
Dumping Height		3200mm
Dumping Reach		1250mm
Wheel Base		2840mm
Wheel Tread		1900mm
Max. Traction		170KN
Max. Rising Power		98±5KN
Max. Climbing Angle		28°
Turning Angle		35±1°
I/II Forward Gear I/II		12/20 Km/h
I Reserve Gear I		12/20 Km/h
Overall Dimensions（LWH）		7200X2250X3220mm
Drive Axles		Wet Drive Axle
Service Brake		Hydraulic brake
Hand Brake		Clamp type
Air Conditioning System		Electric, heating and cooling
System Voltage		DC24V
Tire Model		17.5-35
Battery Life		4-5h
Charging Time		30~40min（Standard charger，300Kw Charging Pile）
Power Battery	Type	Lithium battery
	Rated Capacity	624V/230Ah
	Store Energy	143.52KWH
	Nominal Voltage	3.7V
	Protection Class	IP65 control box
		IP67 control box
Working Hydraulic System	Type	Double pump confluence
	Operation Method	Pilot control
Model		LT930EV
Rated Load		3000kg
Bucket Capacity		2m³
Operating Weight		10500kg
Dumping Height		3200mm
Dumping Reach		1250mm

With technological innovation our product configuration and parameters will continue to change without notice;

if there is any doubt the specific confirmation of our international trade sales shall prevail;
