Specification

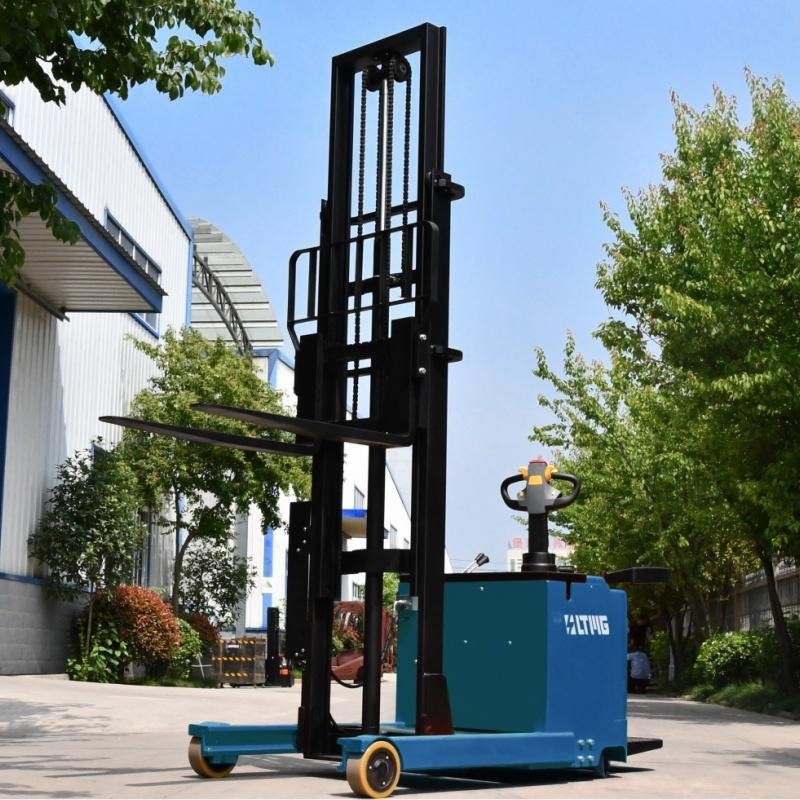

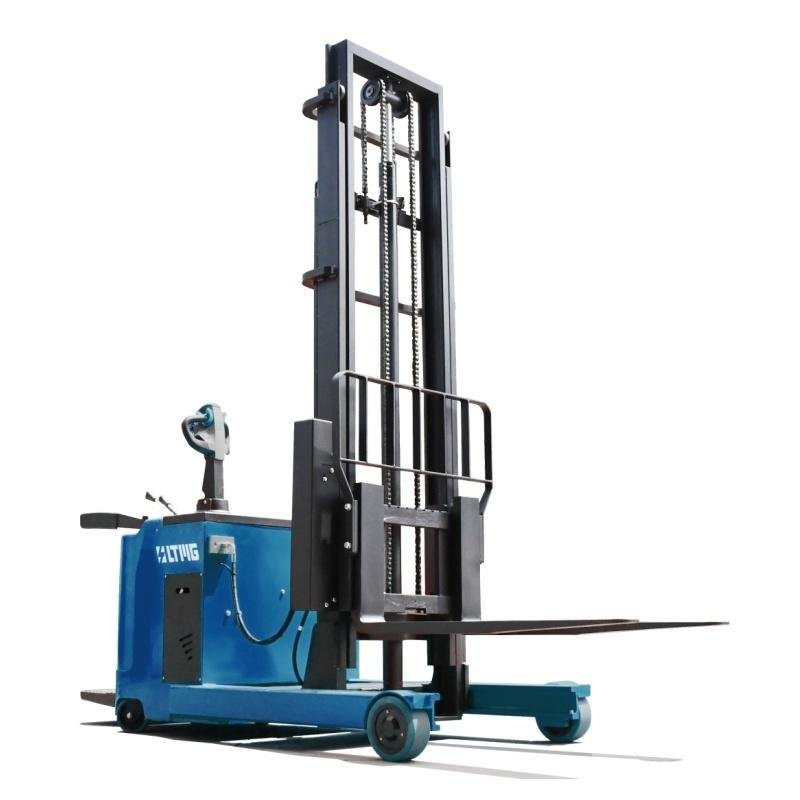

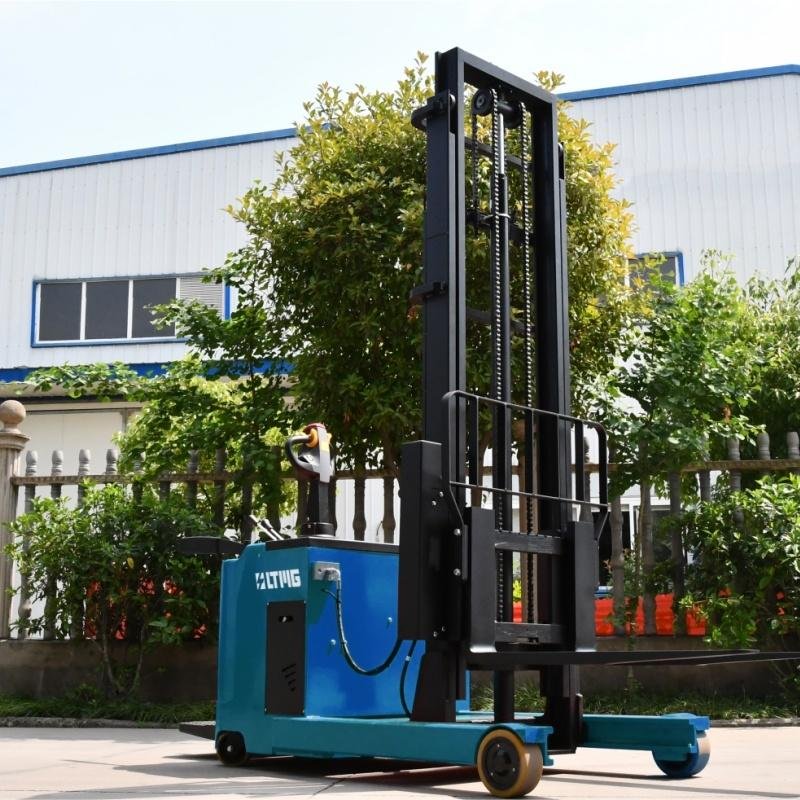

Model | TRS12 | |
Powertype | Electric | |
Operation type | Stand Type | |
Load capacity | Q(kg) | 1200 |
Load center | C(mm) | 500 |
Load distance,centre of drive axleto fork | X(mm) | 155 |
Wheelbase | Y(mm) | 1335 |
Reach distance | L(mm) | 500 |
Service Weight (with Battery) | kg | 1875 |
Wheel type | PU | |
Drive wheel | O×w(mm) | φ230*75 |
Front wheel | O×w(mm) | φ210*85 |
Rear wheel | O×w(mm) | φ150*50 |
Wheel tread,Front wheel | b10(mm) | 735 |
Wheel tread,rear wheel | bl1(mm) | 945 |
Mast Height,Lowered | h1(mm) | 1845 |
Lifting height | h3(mm) | 2500 |
Max.height when lifting | h4(mm) | 3470 |
Fork face min.ground clearance | h13(mm) | 35 |
Fork tilting angle Front/rear | 3/5 | |
Bodylength | l2(mm) | 1615 |
OverallLength | L1(mm) | 1734/2276 |
Overall width | b1(mm) | 1034 |
Fork size | s/e/l(mm) | 35/100/1070 |
Fork Spread | b5(mm) | 210-680 |
Min.ground clearance | m2(mm) | 70 |
Aisle Width for Pallet 1000*1200 crossways | Ast(mm) | 2681 |
Aisle Width for Pallet 1200*1000 crossways | Ast(mm) | 3083 |
Min.turning radius(without/with platform) | Wa(mm) | 1652/2053 |
Max.travel speed(Unladen/Laden) | km/h | 5/4 |
Lifting speed(Unladen/Laden) | m/s | 0.112/0.095 |
Lowering speed(Unladen/Laden) | m/s | 0.094/0.110 |
Max.Grade ability(Unladen/Laden) | % | 8/5 |
Service Brake | Electromagnetic Braking | |
Drive Motor | kw | 1.5 |
Lift Motor | kw | 2.2 |
Battery Type | Lead Acid | |
Battery voltage/nominal capacity | V/Ah | 24/210 |
Charger | V/A | 24/30 |
Type of drive control | AC | |
Sound level at the driver's earacc.to EN12053 | dB(A) | 75 |
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
With technological innovation, our product configuration and parameters will continue to change without notice;
