Specification

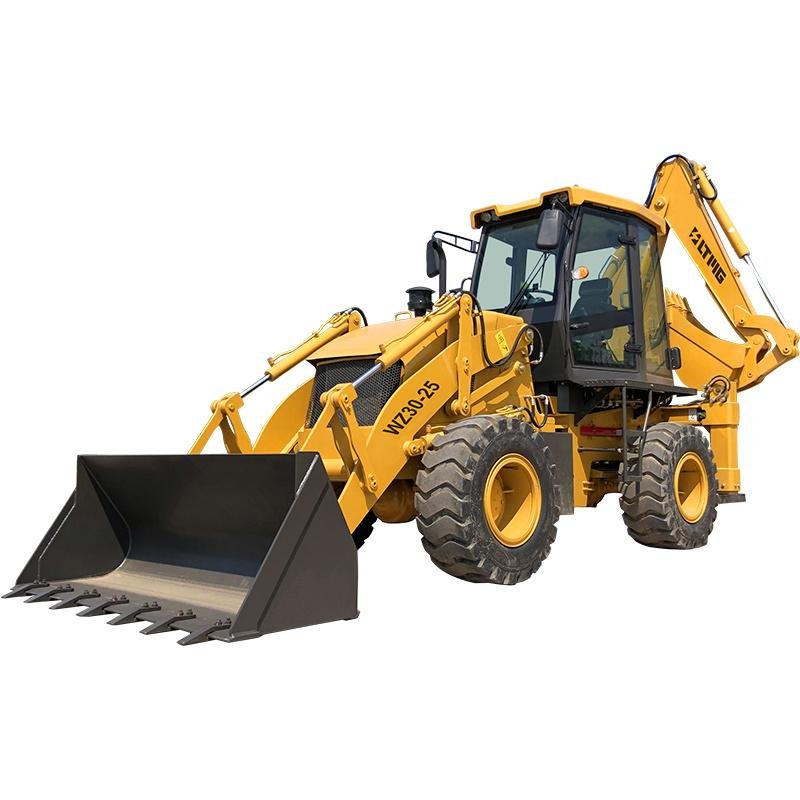

Model | WZ30-25 |
Overall Dimension（L×W×H） | 5654×2365×3764mm |
Wheel Base | 2415mm |
Wheel Tread | 1848mm |
Loading Parameters | |
Rated Load | 2500KG |
Operating Weight | 7600kg |
Bucket Capacity | 1m³ |
Min. Ground Clearance | 300mm |
Max. Gradient Capacity | 30° |
Max. Dumping Height | 2780mm |
Max. Dumping Distance | 1112mm |
Max. Breakout Force | 47KN |
Digging Parameters | |
Backhoe Capacity | 0.3m³ |
Max. Digging Depth | 4060mm |
Max. Digging Radius | 5688mm |
Max. Digging Dumping Height | 3820mm |
Max.Digging Height | 5500±20mm |
Rotary Angle Of Excavator | 180° |
Engine | |
Engine Model | YUCHAI YC4A105Z-T20 |
Cooling Type | Water cooling水冷 |
Rated Power | 75KW(100HP) |
Displacement | 4.8L |
Rated Speed | 2200 r/min |
Max. Torque | 400N.M |
Transmission | |
Gear Shift | F2/R2 |
Tire Size | 16/70-20 |
Front Wheel Pressure | 0.35Mpa |
Rear Wheel Pressure | 0.35Mpa |
System Pressure | |
Loading Hydraulic System | 19Mpa |
Digging Hydraulic System | 19Mpa |
Steering Hydraulic System | 14Mpa |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
Address: No. 506, Xinglinwan Road, Jimei District, Xiamen, Fujian, CN
With the mission of making the world greener, LTMG has focused on the construction machinery industry for more than 20 years. From R&D and production to reaching global customers, LTMG has always been quality-oriented and excellent service, conveying the power of China's machinery manufacturing to the world
