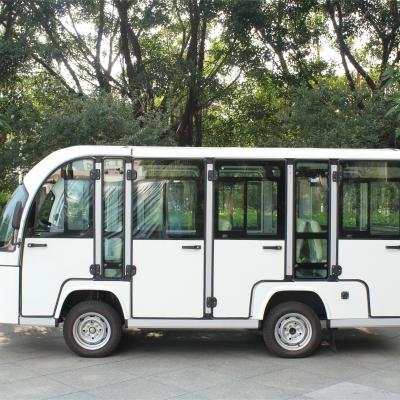

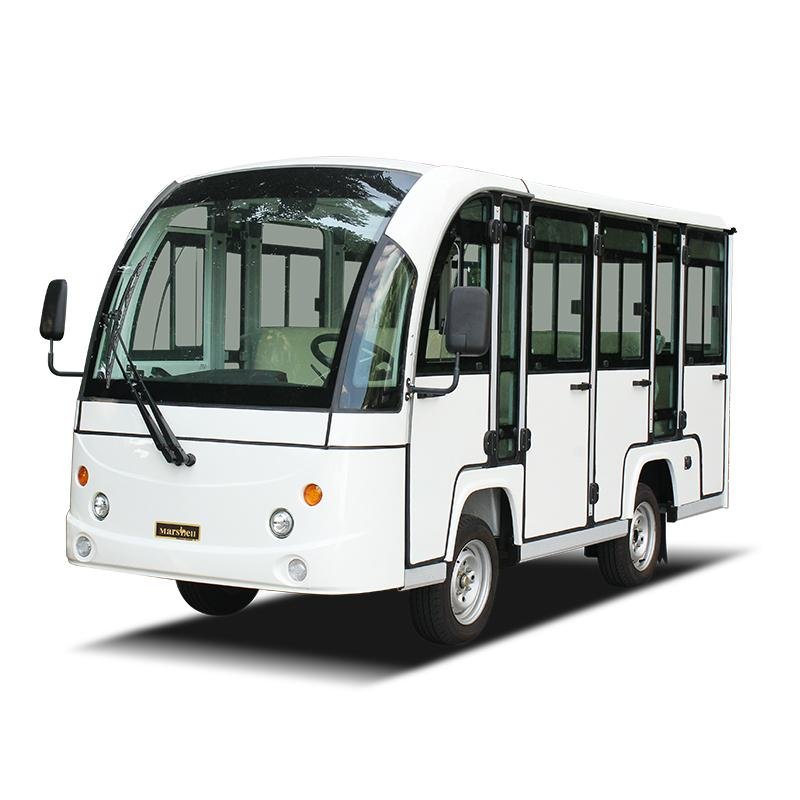

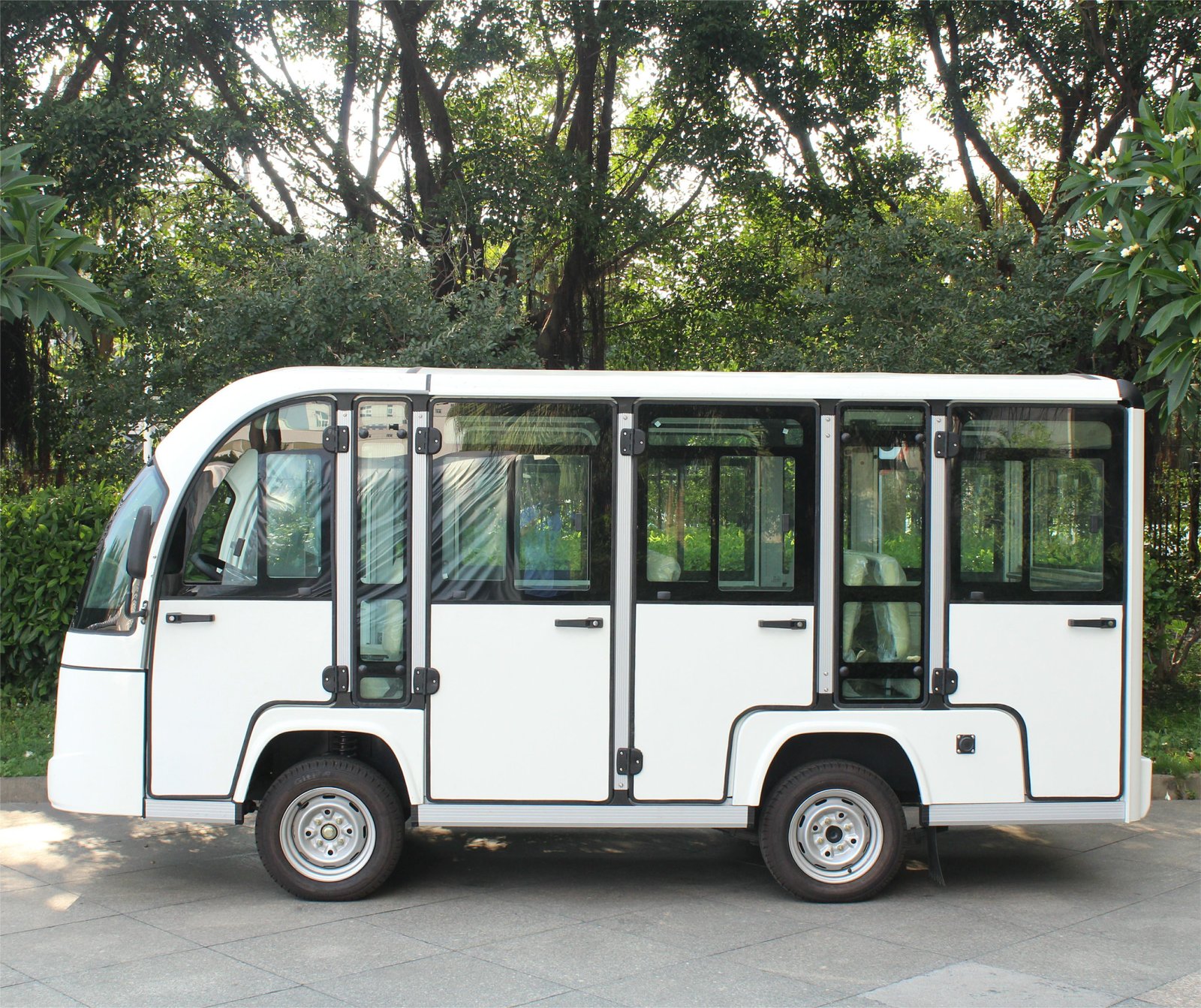

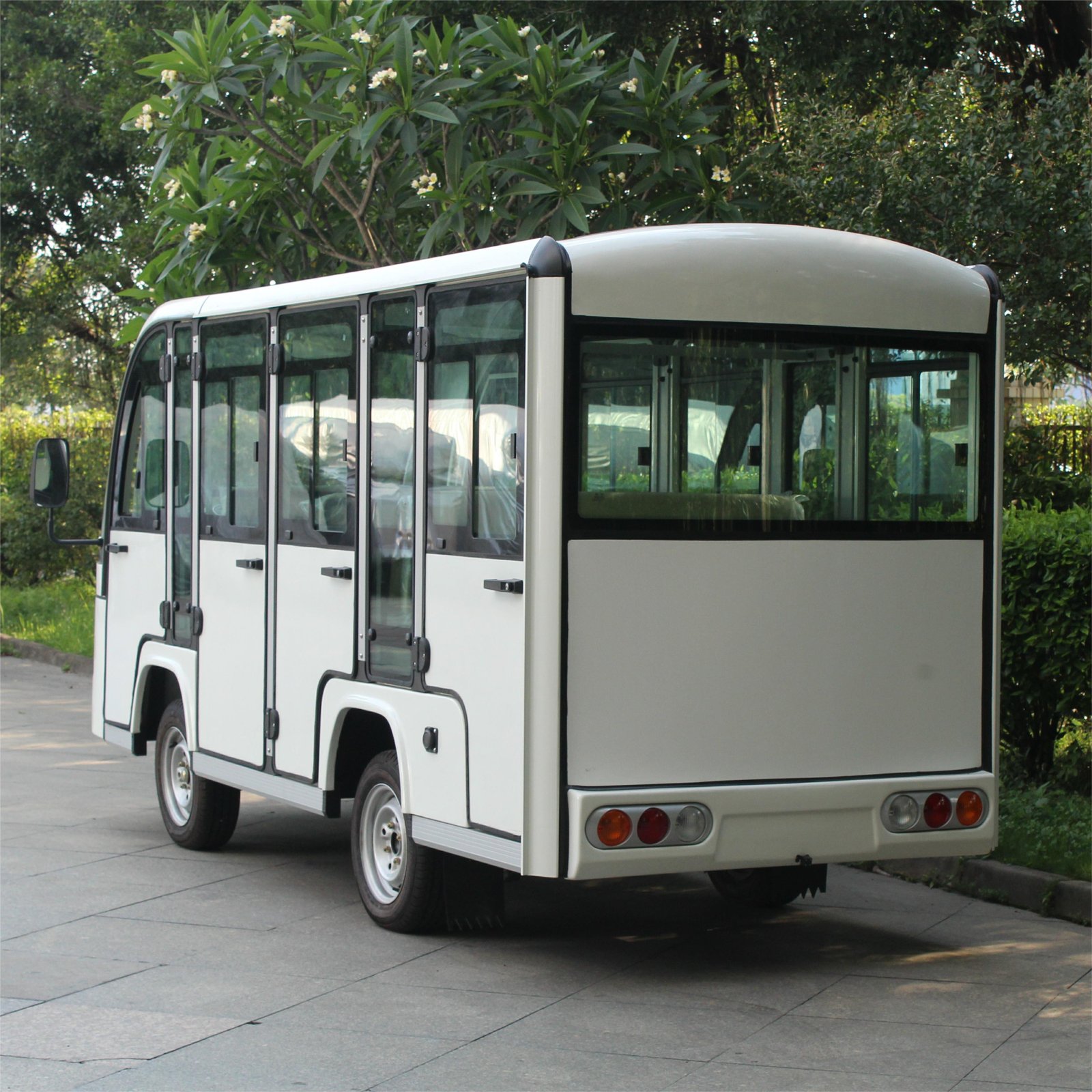

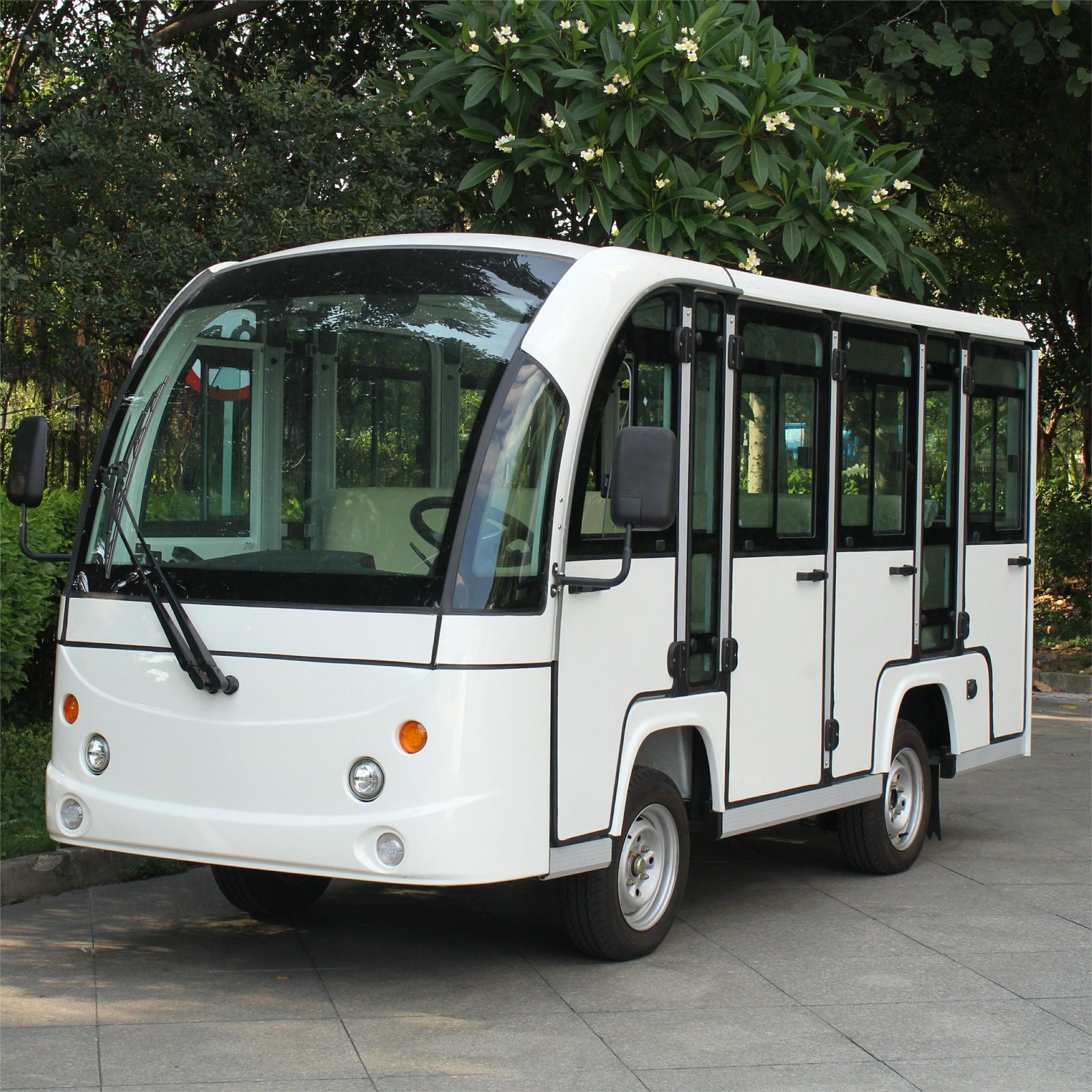

11 Seater Electric Lithium Enclosed Sightseeing Bus DN-11C
Electric Shuttle Bus DN-11C Lithium Battery Edition Features1. Standard white color with simple yet attractive appearance;
2. Four wheels hydraulic braking system and independent parking brake;
3. Equipped with 72V lithium-ion battery for better performance and stronger power;
4. Closed door edition is suitable for all weather situation, especially for cold season and rainy weather;
5. Smart steering system for small turning radius;
Electric Shuttle Bus Lithium Battery Edition Specifications| Battery | Marxon 72V 200AH lithium battery | Marxon 72V 300Ah lithium battery |
| Motor | AC system 72V 7.5KW | AC system 72V 7.5KW |
| Controller | AC 72V 400A | AC 72V 400A |
| Charger | 72V 20AH | 72V 20AH |
| Range (loaded) | 160km | 160km |
| Overall dimensions(mm) | 4800*1520*2025 | 4322*1550*2080 |
| Suspension | Macpherson strut suspension | |
| Brakingsystem | Four wheels hydraulic braking system and independent parking brake | |
| Max. speed | 28km/h | |
| Max. climbing ability(loaded) | 20% | |
| Ground clearance(mm) | 130 | |
| STANDARD CONFIGURATION: | ||
| DESCRPTIONS | REMARKS | |
| Body | Metal steel body | |
| Roof | Aluminum frame + fiber glass cover | |
| Windshield | One-piecesee-through laminated windshield | |
| Wiper | Wiper | |
| Speed meter | Speed meter, battery indicator, voltmeter, current-meter | |
| Front and rear light | Full lights system | |
| OPTIONALCONFIGURATION/ACCELERATORS: | ||
| Air condition; Full enclosure weather curtains; Sunshade c urtain; 13 inch aluminum rim; Music player with 2 pcs speaker; Solar panel on top; Seat belts; Carbin fan; Bus seats | ||
| COLORS: | ||
| Anycolors can be customized | ||
