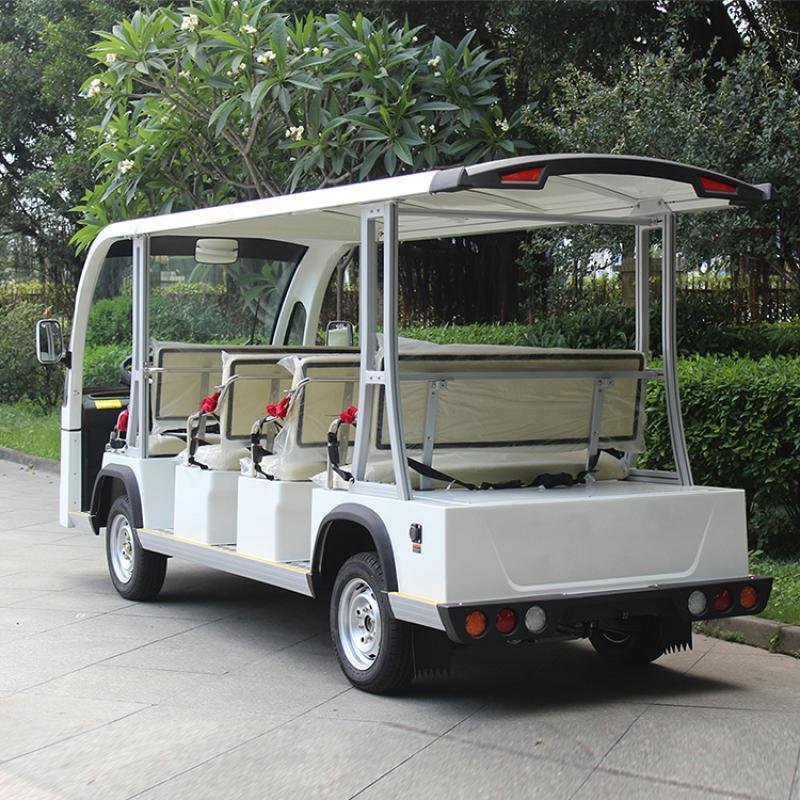

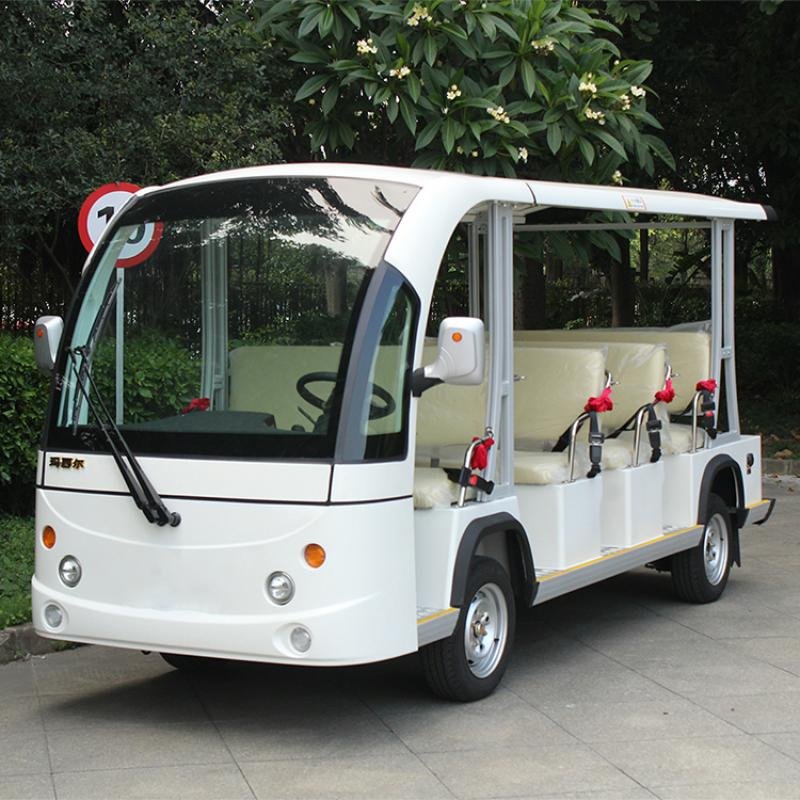

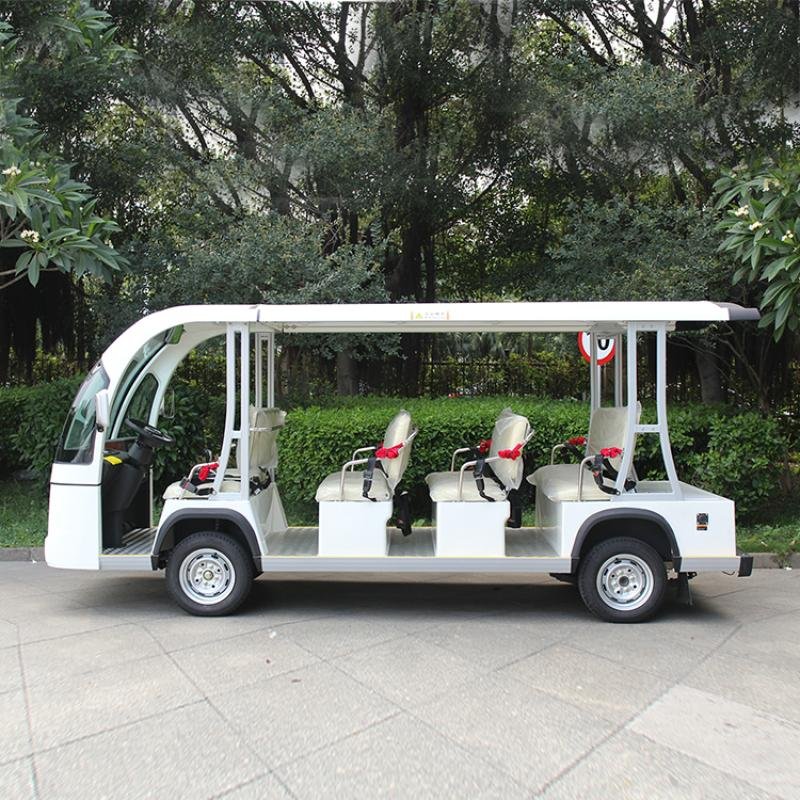

11 Seater Electric Sightseeing Bus DN-11M
Electric Sightseeing Bus Features1. Standard color: White; arractive design and powerful in appearance, with strong carrying capacity and lower noise;
2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure;
3. Small turning radius; and smart steering system; Whole style steel rear axle;
4. Can be easy modified to transportation vechicles;
5. CE certificate for whole carts;
6. Import main parts: Maintenance-free batteries and Curtis controller(From USA);
7. Four wheels hydraulic braking system and independent parking brake.
Electric Sightseeing Bus Specifications
| Battery | 6V*12 PCS | Minimum turning radius (m) | 6.2M |
| Motor | AC 72V 7.5KW | Max. climbing ability (loaded) | 20% |
| Controller | 72V 400A | Overall dimensions(mm) | 4200*1520*2025 |
| Charger | On board charger | Brake Range | 3M |
| Suspension | Macpherson strut suspension | Weight(kgs) | 1200KG |
| Steering | Power assist steering | Chassis | Steel |
| Braking system | Four wheels hydraulic braking system and independent parking brake | Carrying Capacity | 935KG |
| Passenger capacity | 11 | Ground clearance | 220 MM |
| Max. traveling Range | 95-140KM | Tires | 165/70R 13 |
| Max. speed (KM/H) | 30KM/H | Quantity per Container | 2pcs/20FT 5pcs/40FT 5pcs/40HQ |
| STANDARD CONFIGURATION: | ||
| DESCRPTIONS | REMARKS | |
| Body | Fiber glass body | |
| Roof | Steel frame + fiber glass cover | |
| Windshield | One-piece see-through laminated windshieldwith wiper | |
| lights system | front lights, tail lights, turing lights, brake lights, fog lights | |
| mirrors | side mirrors, inner mirror | |
| Dashboard | speedometer combined withbattery capacity indicator, hours meter, current meter, voltage meter, range meter | |
| OPTIONALCONFIGURATION/ACCELERATORS: | ||
| Trojan battery,AC electric system 48V/72V,Rear seat,Full enclosure weather curtains,Sunshade Curtain,Seat belts,Loud speaker,CD player,Solar panel on top,Aluminum rim wheels,Front disc brakes, rear wheel drum brakes,Right hand steering | ||
| COLORS: | ||
| Any colors can be customized per customers | ||
