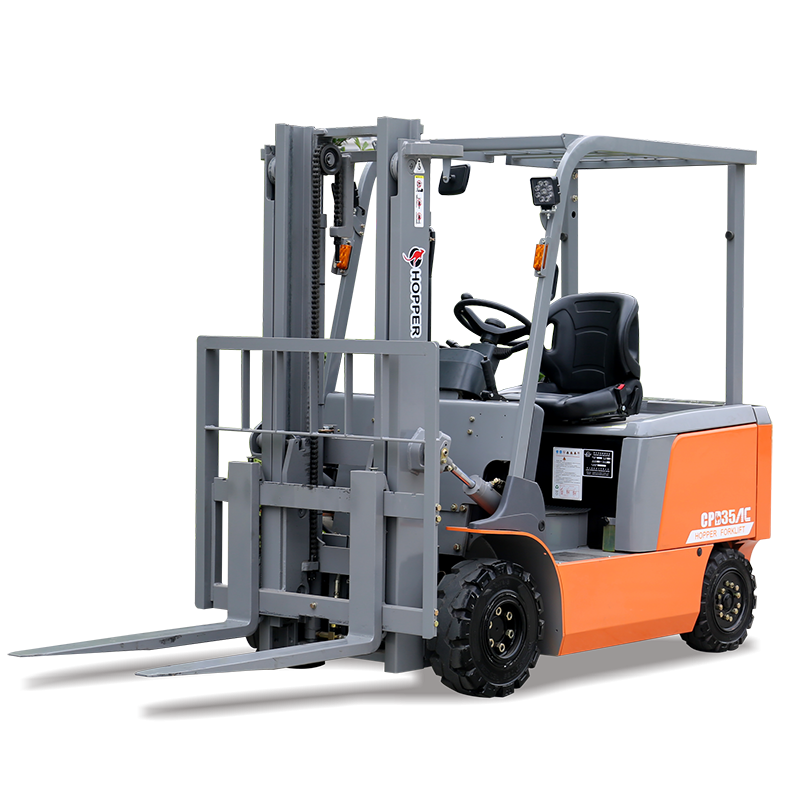

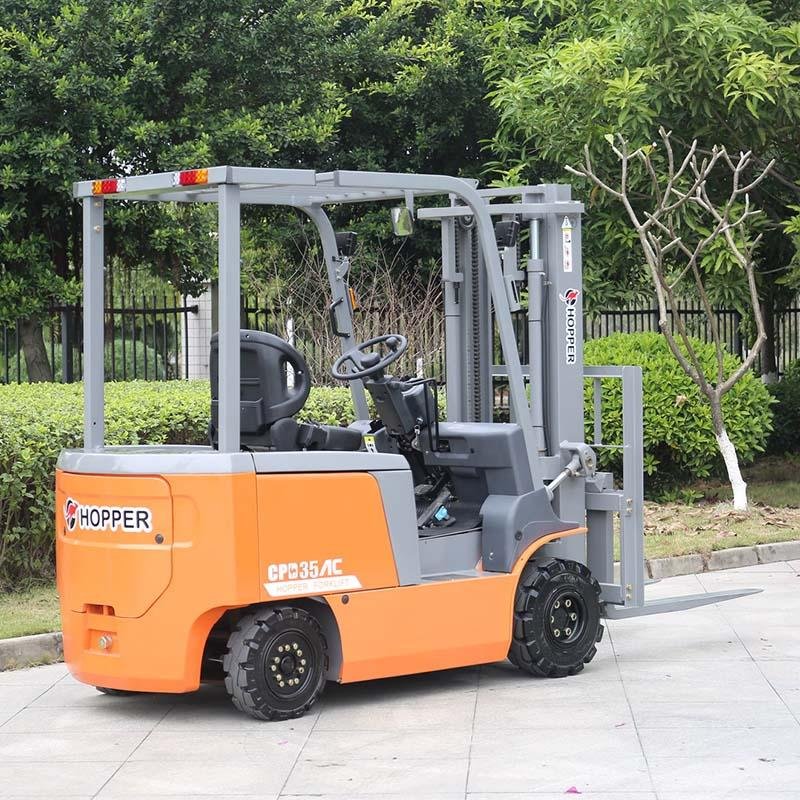

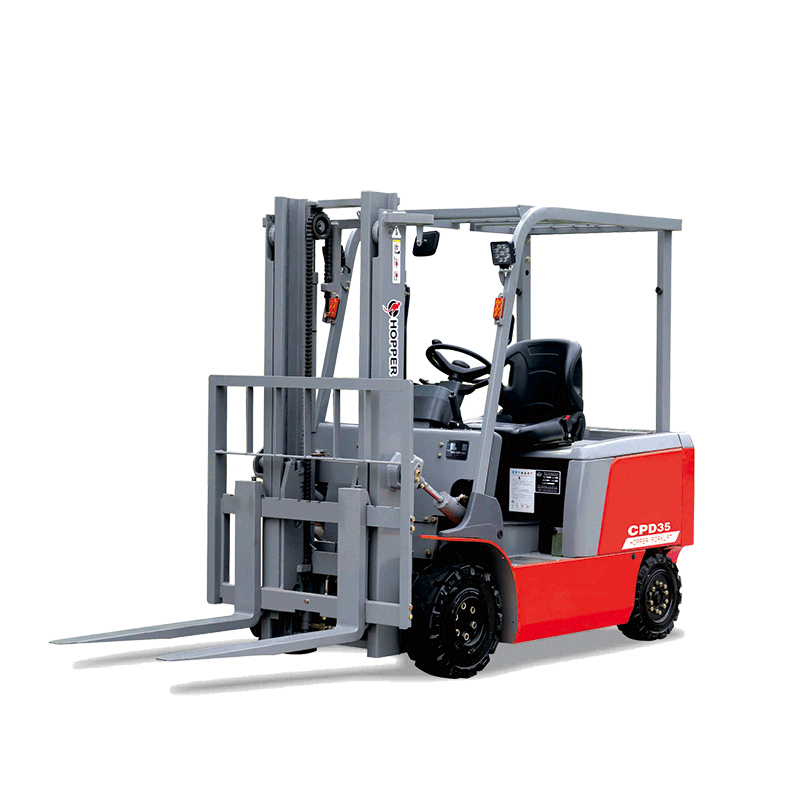

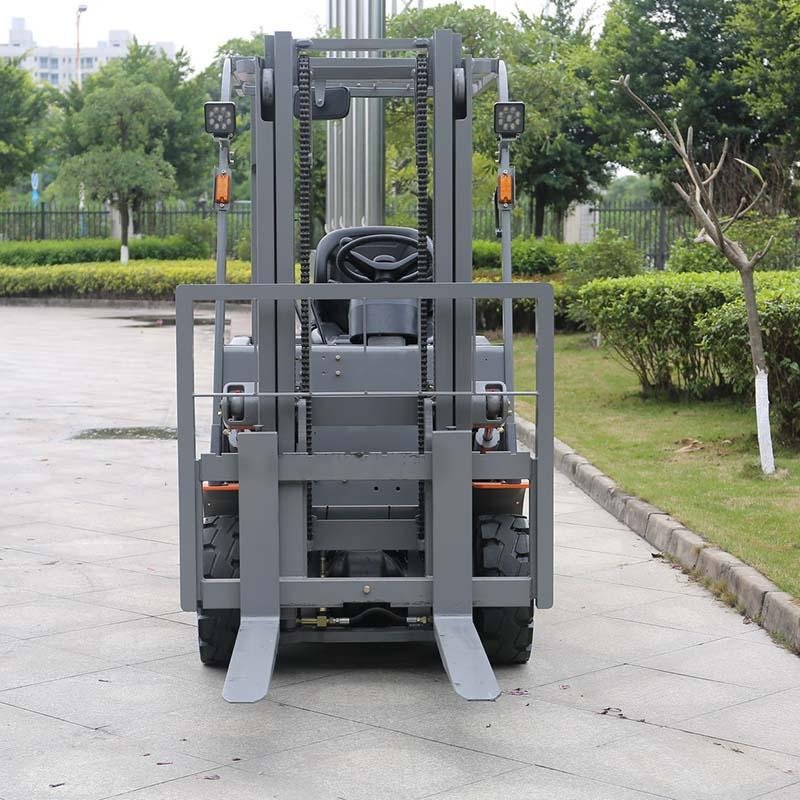

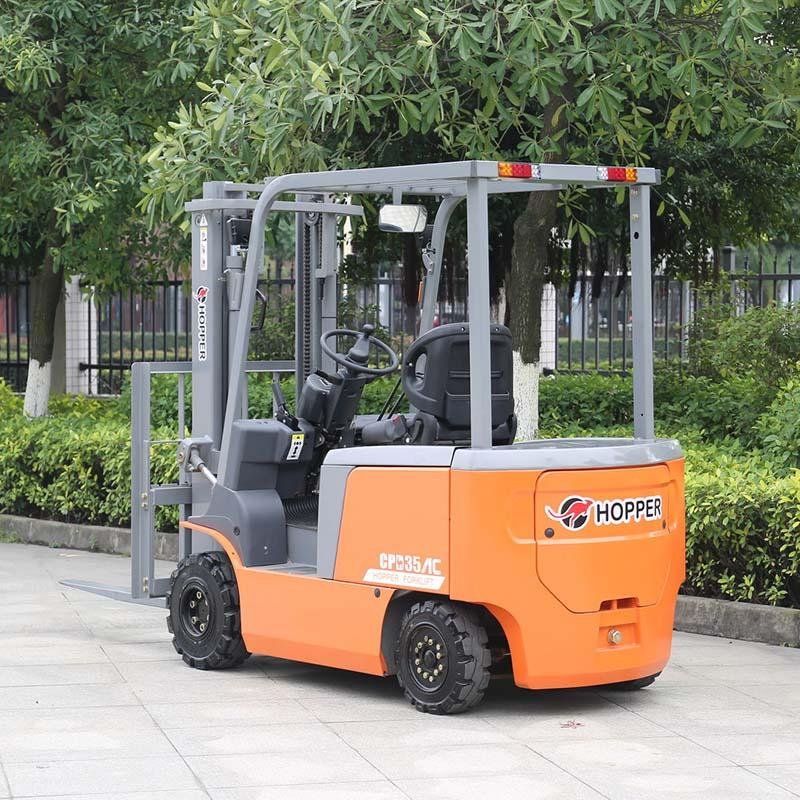

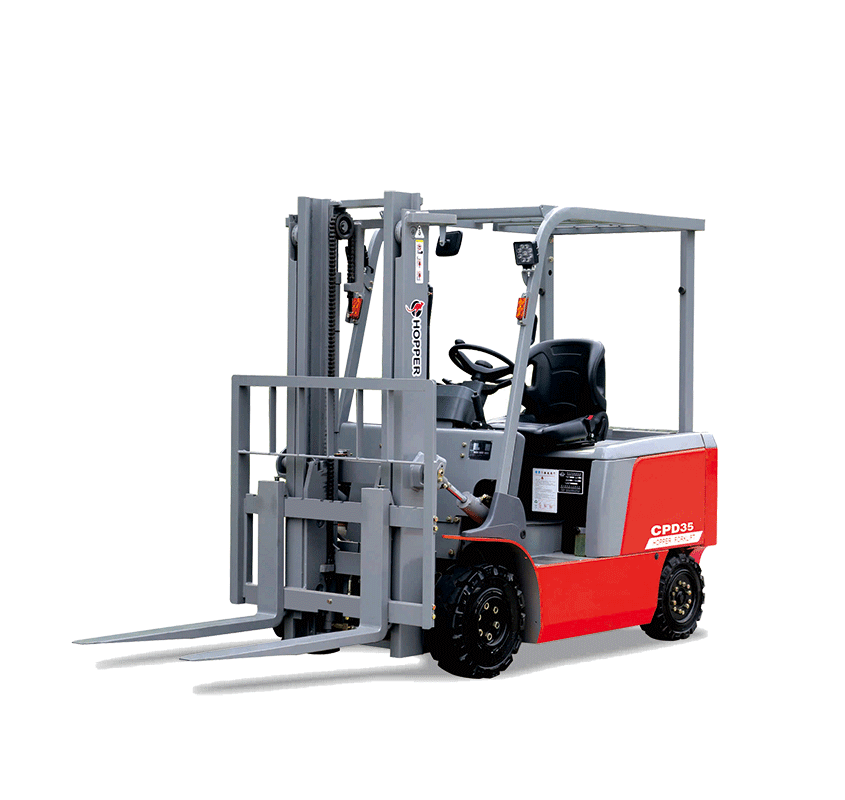

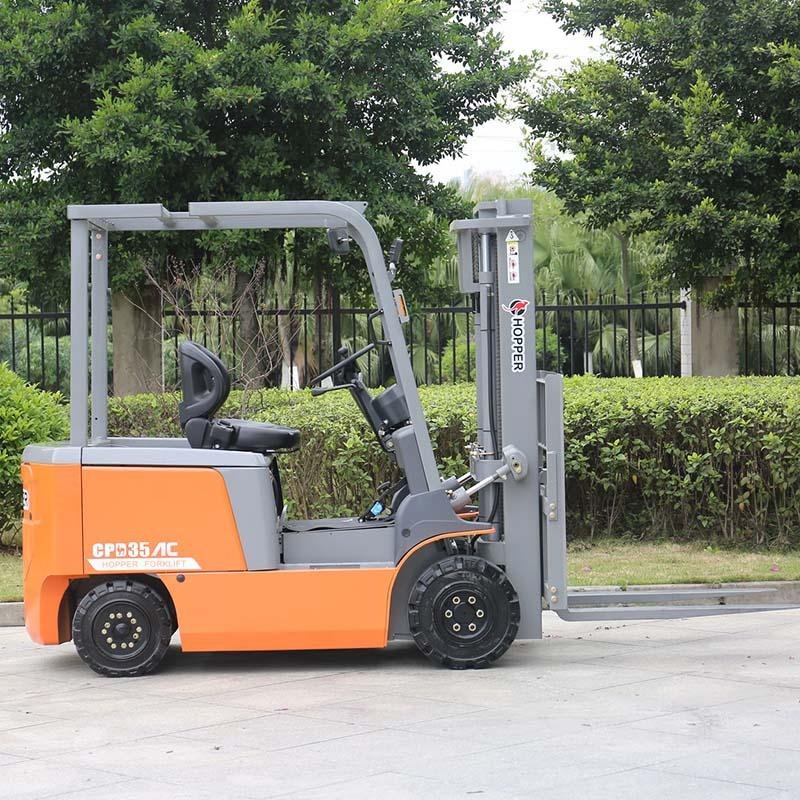

2.0-3.5 Ton Electric Forklift CPD35
3.5-Ton Electric Forklift Advantages1. AC system precise control CAN bus technology multiple protection, sale, and reliability. #Forklift Truck#
2. Strong power, running, lifting, and the climbing performance domestic leading. #Electric Forklift Truck#
3. Overhead guard and body wielding monolithic structure, the overall strength higher. #Electric Forklift Truck#
4. HMI design of the steering wheel, switches, operating handle, etc., improve the driving comfort.
#Electric Forklift for sale#
5. Small turning radius, good passing performance.. # Forklift Truck#
6. Mast drop cushioning and comfortable vehicle operation. #Electric Forklift Manufactuer#
7. Intelligent deceleration turning design, improve the stability of the vehicle during traveling, to avoid tipping cargo. (Optional) # Forklift Truck#
8. Intelligent deceleration turning design, improve the stability of the vehicle during traveling, to avoid tipping cargo. # Forklift Truck#
9.OPS (operating presence sensing) system, when the driver leaves the operating position, will cut off all operating functions, to avoid misuse potential safety problems.
Forklift Truck CPD35 Technical Parameters| CPD35 Technical Parameters | |||
| Model | CPD35 | ||
| Load capacity/rated load | kg | 3500 | |
| Load center distance | Q | mm | 500 |
| Maximum lifting height | H3 | mm | 3000 |
| Mast tilt angle,front/rear | α/β | 6°/12° | |
| Max .Travel speed unladen | km/h | 14 | |
| Max .Travel speed laden | km/h | 13 | |
| Max . Lift speed unladen | mm/s | 340 | |
| Max . Lift speed laden | mm/s | 220 | |
| Max . gradability, unladen | % | 15 | |
| Max . gradability, laden | % | 15 | |
| Weight (without battery) | kg | 3895 | |
| Overall length ( No fork) | L | mm | 2606 |
| Overall length (Including fork) | L1 | mm | 3735 |
| Overall width | B | mm | 1220 |
| Overall height of overhead guard | H4 | mm | 2250 |
| Mast height, lowered | H1 | mm | 2085 |
| Mast height, lifted | H2 | mm | 4225 |
| Wheelbase | Y | mm | 1690 |
| Load distance center of drive axle to fork | L2 | 500 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 125 | |
| Fork height, lowered | H5 | mm | 50 |
| Fork outer size, min./max. | mm | 1110-250 | |
| Min.ground clearance | H6 | mm | 110 |
| Min. turning radius | Wa | mm | 2355 |
| Aisle width for lengthways | 800*1200 | mm | 4445 |
| 1000*1200 | mm | 4560 | |
| Front tire | mm | 28*9-15 14PR,Inflatable tire | |
| Rear tire | mm | 18*7-8, Solid tire | |
| Drive motor(AC) | kw | 11 | |
| Lift motor(DC) | kw | 14 | |
| Battery Voltage | V | 72 | |
| Battery capacity | AH | 550 | |
| Battery Weight | kg | 1237 | |
| Container quantity(20GP/40HQ) | unit | 2/4 | |
