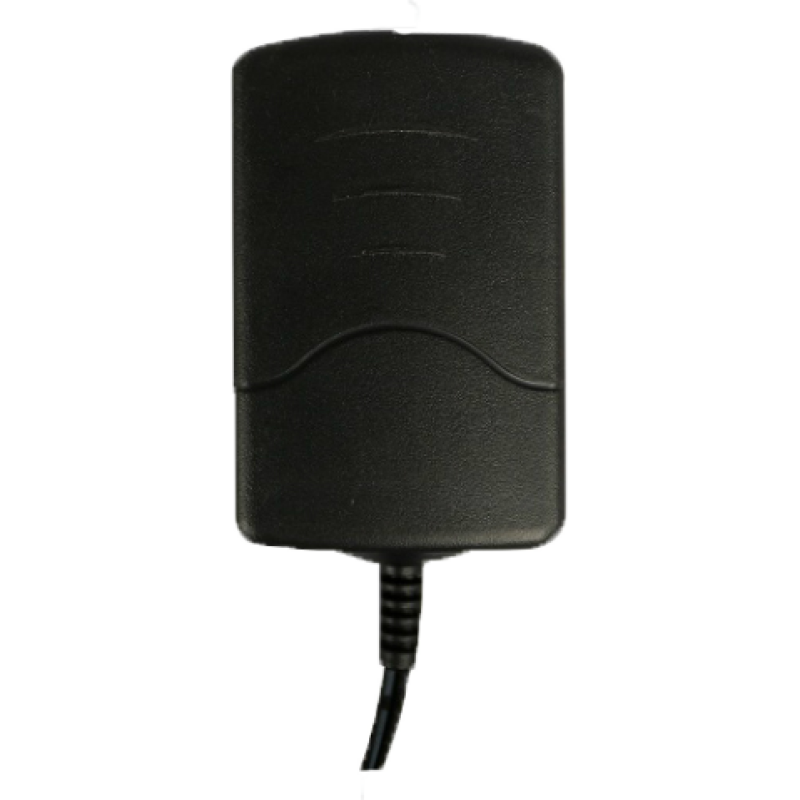

Car Battery Charger LC-2527 Series
Car Battery Charger Features1. Keep the battery charged and can be connected full time without overcharging;
2. Temperature-compensated to ensure optimum charge voltage according to ambient temperature;
3. Unique Gel Cell battery adjusted software allows for a slightly lower charge voltage and higher store voltage to protect sensitive true Gel Cell batteries;
4. Multi-stage charging program allows for optimal constant battery levels without overcharging;
5. Automatically switches to float/mainenance voltage mode after fully charging the battery.
Car Battery Charger Specifications| Parameter | LC-2520 | LC-2522 | LC-2523 | LC-2525 | LC-2527 |
| Input Voltage | 100~240V AC or 200~240V | ||||
| Output Frequency | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz |
| Output Voltage | 6V | 6V | 6V | 6V | 6V |
| Output Current | 0.3A | 0.5A | 0.6A | 0.8A | 1A |
| Battery Type (AH) | 43103 | 1.7-5 | 43137 | 2.7-8 | 3.4-10 |
| Light Switching Current | 60mA | 100mA | 120mA | 160mA | 200mA |
| Overload Protection | Yes | Yes | Yes | Yes | Yes |
| Short Circuit Protection | Yes | Yes | Yes | Yes | Yes |
| Reverse Polarity Protection | Yes | Yes | Yes | Yes | Yes |
| Charging Status Display | LED | LED | LED | LED | LED |
| Dimension (MM) | 80*50*39 | 80*50*39 | 80*50*39 | 80*50*39 | 80*50*39 |
| Certification | CE/ETL | CE/ETL | CE/ETL | CE/ETL | CE/ETL |
