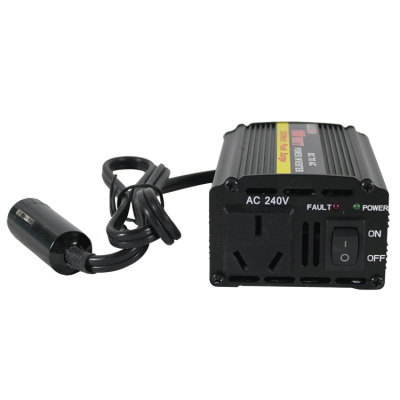

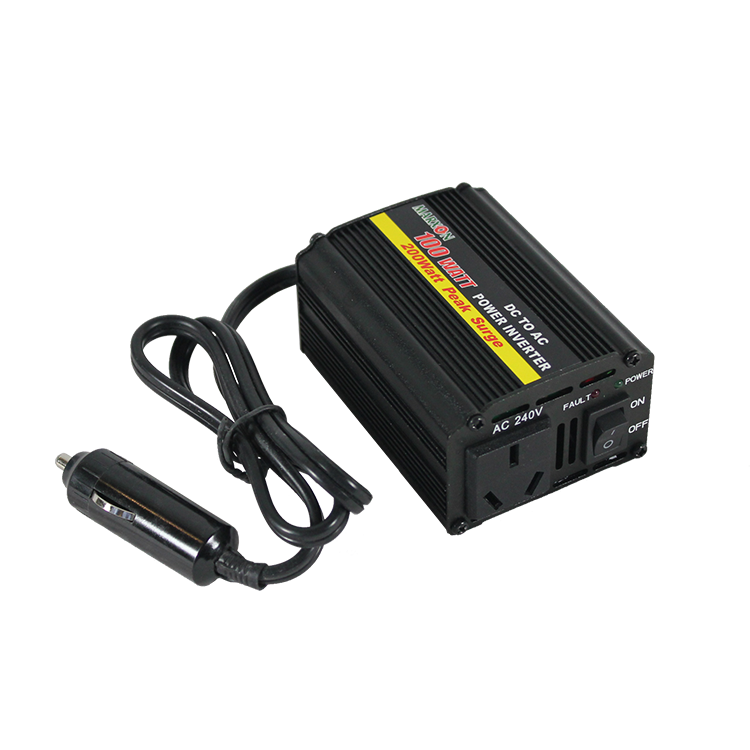

Name: 100W Modified Sine Wave Power Inverter
Brand: TBD
SKU: SKU-2443-TOHD7
Availability: InStock

أرسل إلى صديق

100W Modified Sine Wave Power Inverter

(0 reviews)

$0.00

تم بيعها من قبل:marshell

InputVoltage(DC)12V/24V/48VOutputVoltage(AC)100~120V/220~240VOutputPeakPower(Watt) 200WOptional AC Output SocketClean and Stable PowerIntelligent OperationVersatile SafetyMOQ:500PCS

رمز التخزين التعريفي:SKU-2443-TOHD7
فئات:Auto Spare Parts
العلامات التجارية:TBD

100W Modified Sine Wave Power Inverter

Electric Power Inverter Features

1. Input Voltage 12V /24V/48V DC optional.

2. Output Voltage 115V /230V AC optional.

3. Portable power for AC products, AC outlets for connecting multiple loads.

4. High surge capacity for products that require more power to start.

5. High efficiency converts virtually all of the battery's power to AC.

6. Mounting brackets for convenient installation.

7. Heavy duty stud-connection mounting.

8. Overload protection, input reverse protection, short circuit protection.

Electric Power Inverter Specifications

Parameter	MSI-100	MSI-150	MSI-200	MSI-300
Continuous Output Power (Watt)	100	150	200	300
Output Peak Power (Watt)	200	300	400	600
Input Voltage (DC)	12V(11~15V)/24V(21~29)V/48V(42~58V)
Output Voltage (AC)	100~120V/220~240V
Frequency	50Hz/60Hz±3Hz
Output Waveform	Modified sine wave
Efficiency	85~90%
Low Battrey-voltage Alarm (Volt)	10.5V±0.5V/21±1V/42±2V
Low Battrey-voltage Shutdown (Volt)	10V±0.5V/20±1V/40±2V
Over temperature shutdown	<65°C
Available Protection	overload protection,input reverse protection,short circuit protection
Cooling Mode	By Fan
Replaceable Fuse	15A	20A	25A	35A
Accessory	Cigarette lighter(included)
Dimension(LWH)mm	957046	1057046	1259046	1259046
Weight(KGS)	0.35	0.36	0.5	0.55
