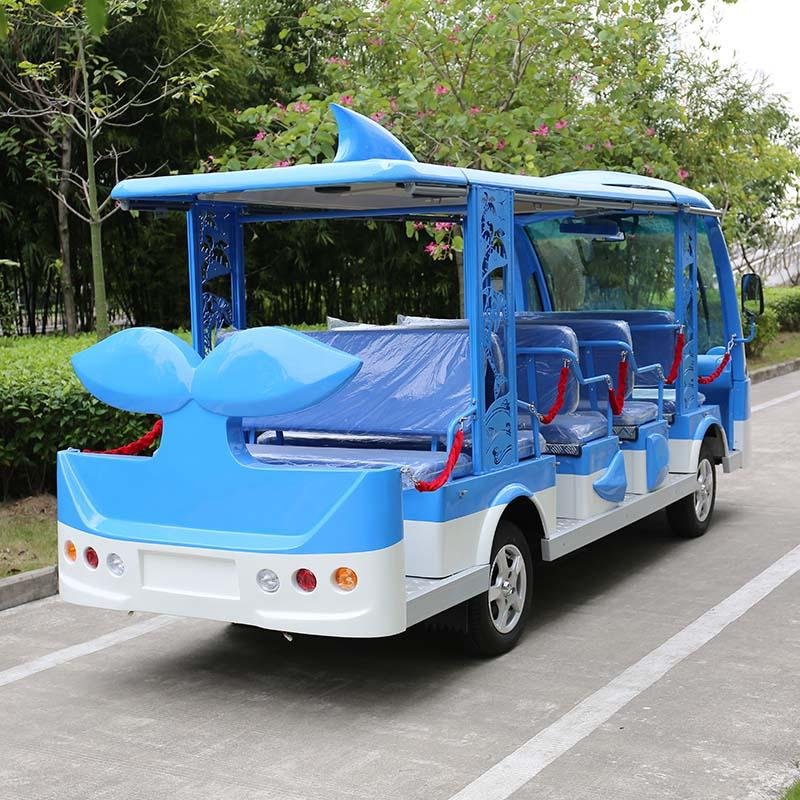

14 Seater Electric Sightseeing Bus DN-14 Dolphin Design

14 Seater Electric Sightseeing Bus DN-14 Dolphin Design

Electric Sightseeing Bus Features

1. Arractive design and powerful in appearance, with strong carrying capacity and lower noise;

2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure;

3. Small turning radius; and smart steering system; Whole style steel rear axle;

4. Can be easy modified to transportation vechicles;

5. CE certificate for whole carts;

6. Import main parts: Maintenance free batteries and Curtis controller(From USA);

7. Four wheels hydraulic braking system and independent parking brake.

8. Customization supported.

Electric Shuttle Bus Specifications

Max. speed (km/h)	28km/h
Front-wheel tread	1240mm
Battery	Leoch battery 6V*12 PCS
Motor	72V 7.5KW AC motor
Controller	72V 400A Controller
Charger	On board charger
Suspension	McPherson independent front suspension and rear parallel leaf spring
Steering	Rack and pinion type with power steering
Brake System	Four wheels hydraulic braking system
Passenger capacity	14 person
Range (loaded) (km)	100 km
Wheelbase	2700mm
Rear wheel tread	1220mm
Minimum turning radius (m)	6.5m
Brake range (m)	≤ 6.5
Max climbing ability (loaded)	20%
Overall dimensions(mm)	5320×1520×2245mm
Max. loading weight (kgs)	1190
Curb weight (kgs)	1300
Ground clearance (mm)	130
Chassis	Steel
Quantity per Container	1PCS/20FT, 2PCS /40HQ

Electric Shuttle Bus Configuration

STANDARD  CONFIGURATION:
DESCRPTIONS	REMARKS
Body	Fiber glass body
Roof	Steel frame + fiber glass cover
Windshield	One-piece see-through laminated windshield with wiper
lights ystem	front lights, tail lights, turing lights, brake lights, fog lights
mirrors	side mirrors, inner mirror
Dashboard	speedo meter combined with battery capacity indicator, hours  meter, current meter, voltage meter, range meter
OPTIONAL CONFIGURATION/ACCESSIOIRIES:
Enclosure weather curtains, fans, Sunshade Curtain, Seat  belts, Loud speaker, CD player, Solar panel on  top, Aluminum rim wheels, Front disc brakes, Bus seat
COLORS:
Standard color is blue&white, also can do the other colors
