14 Seater Electric Sightseeing Bus DN-14G

$0.00100% عن$0.00

تم بيعها من قبل:marshell

Smart steering systemRustproof body structureConsistent and efficient electric drive-train
In stock

14 Seater Electric Sightseeing Bus DN-14G

Electric Shuttle Bus DN-14G Features

1. Standard Color: White & black; innovative design with broad view;

2. Standard Feature: Front and Rear lights, Rear view mirrors, electric horn, big size instrument display with reasonable man-machine layout;

3. Small turning radius, smart steering system;  #Electric Sightseeing Bus#

4. Simple roof and light design, column shape of the C pillar with good stability;

5. Can be easy modified to transportation vehicles;

6. CE certificate for whole carts;   #Electric Shuttle Bus#

7. Import main parts: Maintenance free batteries and Curtis controller(From USA);

8. Four wheels hydraulic braking system and independent parking brake;

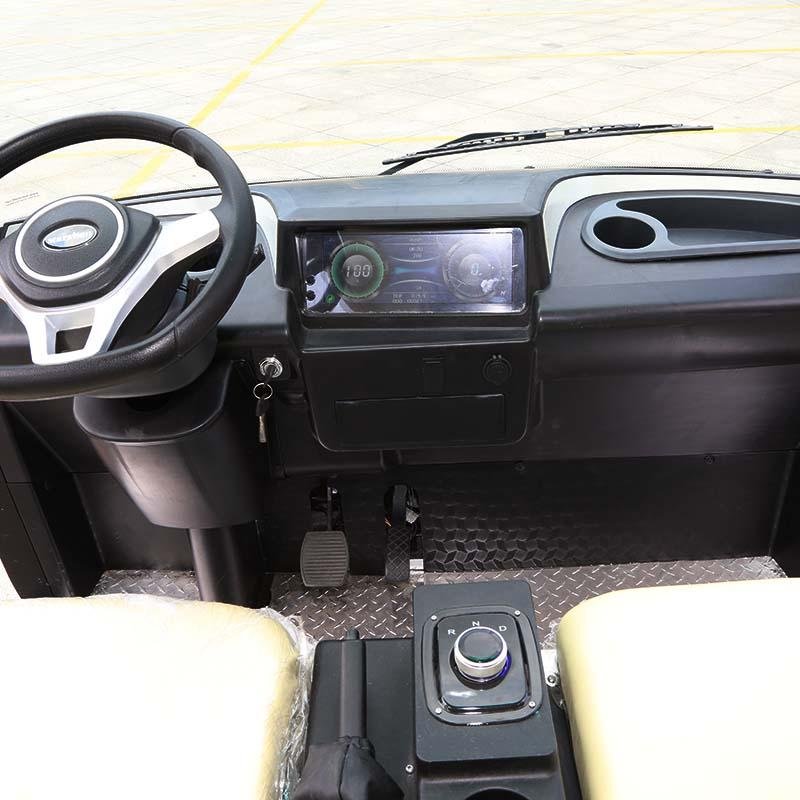

9. The large screen central control instrument displays the sense of science and technology, and the man-machine layout is reasonable;

Electric Shuttle Bus DN-14G Specifications

Max. speed (km/h)28km/h
Front wheel tread1240mm
BatteryLeoch battery 6V*12 PCS
Motor72V 7.5KW AC motor
ControllerEmpower controller 72V 400A
ChargerOn board charger
SuspensionFront suspension: McPherson type independent suspension
Rear suspension: parallel leaf spring
SteeringRack and pinion type with power steering
Brake SystemFour wheels hydraulic braking system
Passenger capacity14 person
Range (loaded) (km)120km
Wheelbase2660mm
Rear wheel tread1220mm
Minimum turning radius (m)6.5m
Brake range (m) 5
Max climbing ability (loaded)20%
Overall dimensions(mm)4910*1550*2060mm
Max. loading weight (kgs)1190
Curb weight (kgs)1360
Ground clearance (mm)100
ChassisSteel
Quantity per Container1PCS/20FT,2PCS/40FT,4PCS /40HQ
Electric Shuttle Bus DN-14G Configuration

STANDARD  CONFIGURATION:
DESCRIPTIONSREMARKS
BodyFiberglass body
RoofSteel frame + fiberglass cover
WindshieldOne-piece see-through laminated windshield with wiper
lights systemfront lights, tail lights, turning lights, brake lights, fog lights
mirrorsside mirrors, inner mirror
Dashboard  speedo meter combined with battery capacity indicator, hours  meter, current meter, voltage meter, range meter
OPTIONAL CONFIGURATION/ACCELERATORS:
enclosure weather curtains, fan, Sunshade Curtain, Seat  belts, Loudspeaker, CD player, Solar panel on  top, Aluminum rim wheels, Front disc brakes, Warning light system, Bus seat, Safety chain
COLORS:
Any colors can be customized per customers
