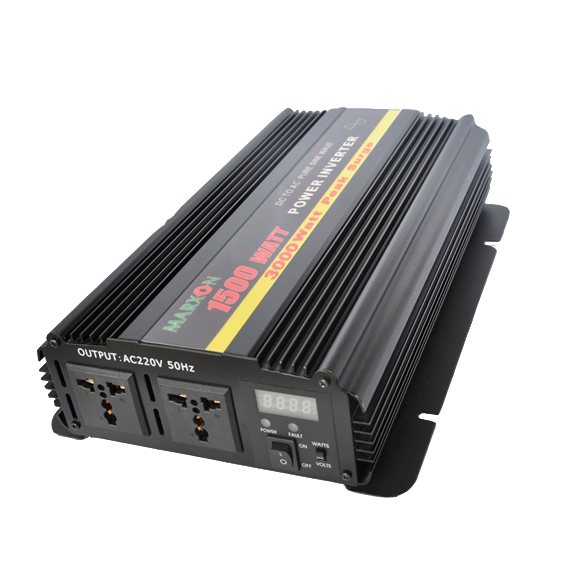

1500W Pure Sine Wave Power Inverter

Pure Sine Wave Power Inverter Features

1. Input Voltage 12V /24V/48V DC optional.

2. Output Voltage 115V /230V AC optional.

3. Portable power for AC products, AC outlets for connecting multiple loads.

4. High surge capacity for products that require more power to start.

5. High efficiency converts virtually all of the battery's power to AC.

6. Mounting brackets for convenient installation.

7. Heavy duty stud-connection mounting.

8. Overload protection, input reverse protection, short circuit protection.

Pure Sine Wave Power Inverter Specifications

Parameter	PSI-500	PSI-1000	PSI-1500	PSI-2000	PSI-3000
Continuous Output Power (Watt)	500	1000	1500	2000	3000
OutputPeak Power (Watt)	1000	2000	3000	4000	6000
Input Voltage (DC)	12V(11~15V)/24V(21~29) /48V(42~58V)
OutputVoltage (AC)	100~120V/220~240V
Frequency	50Hz/60Hz±3Hz
OutputWaveform	pure sinewave
Efficiency	85~90%
LowBattrey-voltage Alarm(Volt)	10.5V±0.5V/21±1V/42±2V
LowBattrey-voltage Shutdown(Volt)	10V±0.5V/20±1V/40±2V
AvailableProtection	overload  protection, inputreverse protection,shortcircuitprotection
Over temperature shutdown	<65°C
CoolingMode	By  Fan
Replaceable Fuse	30A*2	30A*4	30A*6	25A*12	25A*16
Accessory	Alligatorclips(excluded)
Dimension(L*W*H)mm	200*145*76	275*220*78	370*220*82	380*260*92	420*260*92
Weight(KGS)	1.85	2.5	3.7	4.5	6

Optional AC Output Socket
