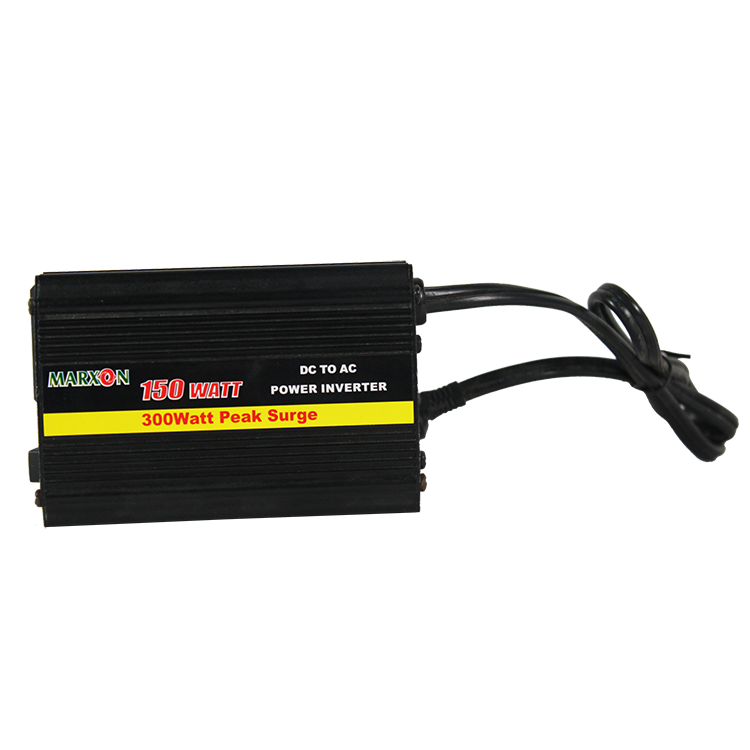

150W Modified Sine Wave Power Inverter

Electric Power Inverter Features

1. Input Voltage 12V /24V/48V DC optional.

2. Output Voltage 115V /230V AC optional.

3. Portable power for AC products, AC outlets for connecting multiple loads.

4. High surge capacity for products that require more power to start.

5. High efficiency converts virtually all of the battery's power to AC.

6. Mounting brackets for convenient installation.

7. Heavy duty stud-connection mounting.

8. Overload protection, input reverse protection, short circuit protection.

Electric Power Inverter Specifications

Parameter	MSI-100	MSI-150	MSI-200	MSI-300
Continuous Output Power  (Watt)	100	150	200	300
OutputPeakPower(Watt)	200	300	400	600
InputVoltage (DC)	12V(11~15V)/24V(21~29  ) V/48V(42~58V)
Output Voltage(AC)	100~120V/220~240V
Frequency	50Hz/60Hz±3Hz
OutputWaveform	Modifiedsinewave
Efficiency	85~90%
LowBattrey-voltageAlarm  (Volt)	10.5V±0.5V/21±1V/42±2V
Low Battrey-voltageShutdown (Volt)	10V±0.5V/20±1V/40±2V
Overtemperatureshutdown	<65°C
Available Protection	overloadprotection,inputreverseprotection,shortcircuitprotection
CoolingMode	By  Fan
ReplaceableFuse	15A	20A	25A	35A
Accessory	Cigarette  lighter(included)
Dimension (L*W*H)mm	95*70*46	105*70*46	125*90*46	125*90*46
Weight (KGS)	0.35	0.36	0.5	0.55

Optional AC Output Socket
