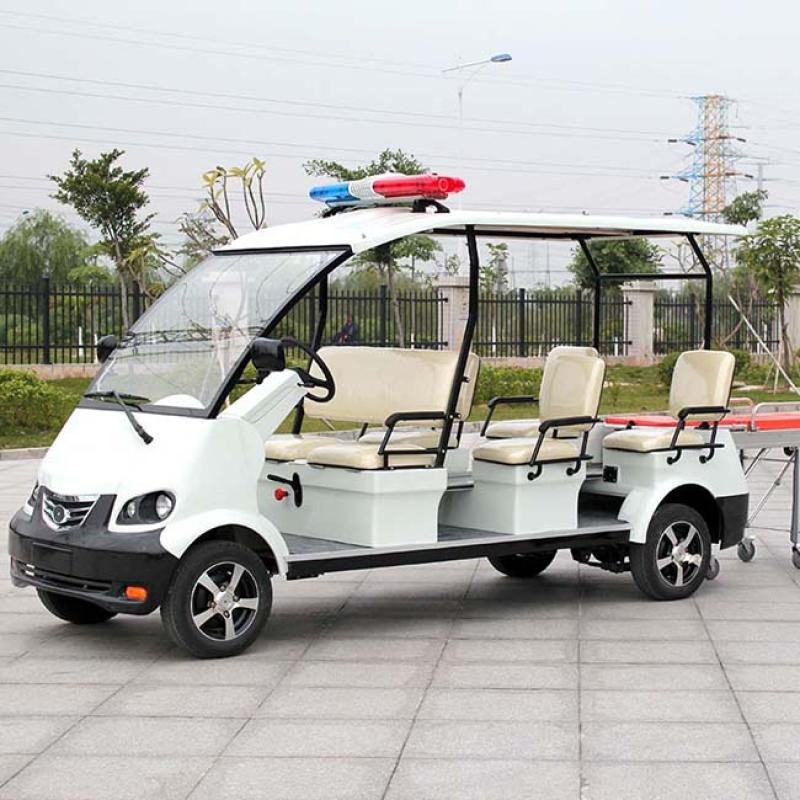

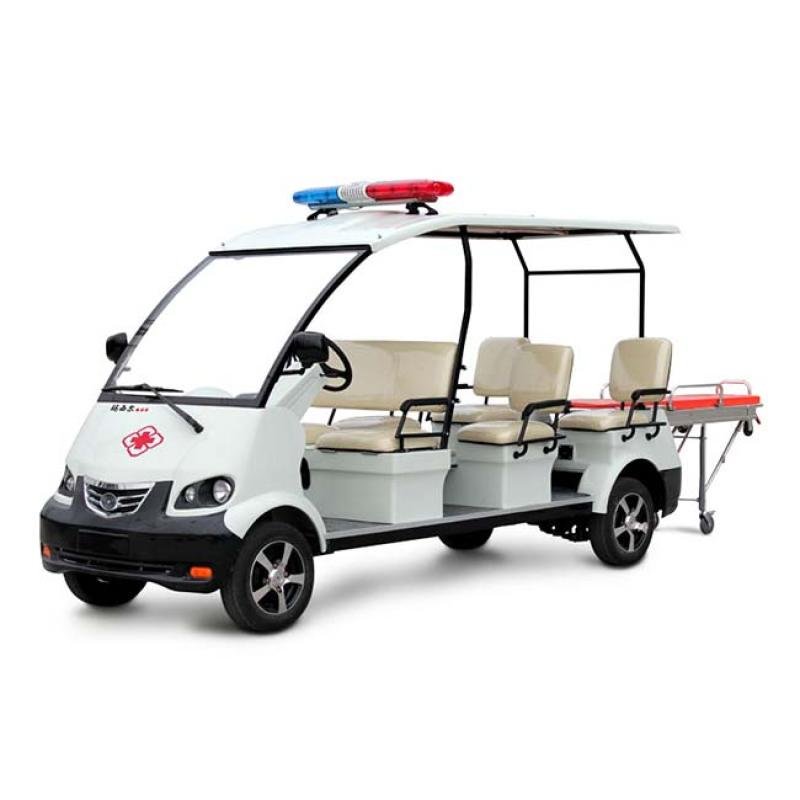

Electric Ambulance DN-8A

Electric Ambulance Features

Emergency happens all the time. For larger golf courses, resorts, sightseeing spots, airports or government bases, Marshell's electric ambulance cars will always be with you to save the emergency. Marshell is dedicated to individual markets with full service and support to match.

Electric Ambulance Specifications

Passenger capacity :	6	Stretcher carring capacity	155kg
Battery :	6V 216AH/220AH/225AH*8pcs	Stretcher size (unfold)	1900*560*900mm
Motor :	DC4KW/48VorAC4/5KW	Stretcher size (fold)	1900*560*240mm
Controller :	DC 500A/48V Full electricspeed controller orACCurtis/Toyota	Steering :	recirculating-ball  steering
Charger :	48V/25AFullautomatic high frequency charger	Brakes :	Front wheels hydraulic braking system and independent parking brake
Max.Speed:	25km/h	Tire:	145/70R1269S
Max. travelling range:	70km	Ground clearence:	150mm (fullload)
Climbing capacity:	20%	Overall dimension:	3860*1450*2040mm
Brake Range:	≤6	Qty per container:	2pcs/20GP 3pcs/40HQ
Minmum Turning radius:	6.0m	Standard parts:	Front and rear lights, Rear view mirrors,Speedmeter, Wiper, Alarm lights, Stretcher, Ambulance box, Fire extinguisher
Gross weight:	930kg	Optiona l parts :	Loud speaker, Mediaplayer,Weatherenclosure, Sidesunshadecurtain, 3points  seat  belt for driverseat,Trojan Battery, Bus seat
