Features

1

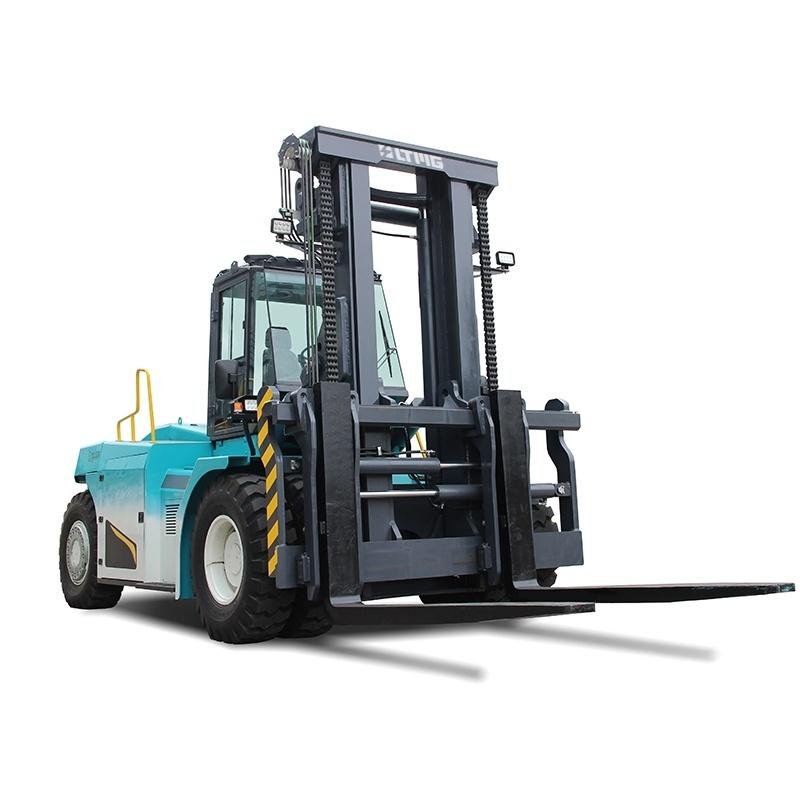

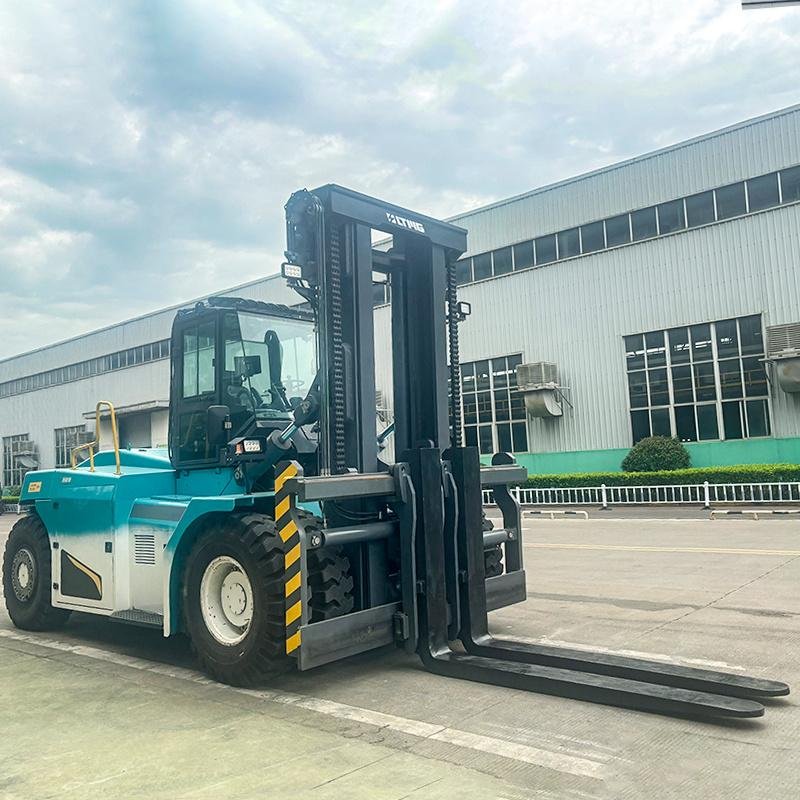

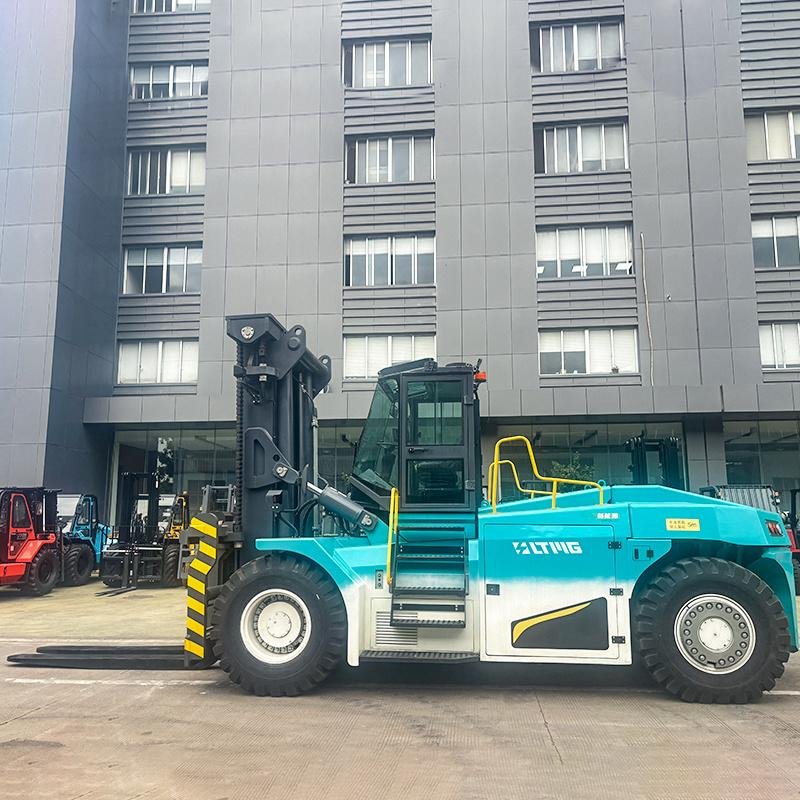

FB300

2

Power Type

Battery

3

Driving Style

Seated

4

Rated Capacity

kg

30000

5

Load Centre

mm

1200

Weight

6

kg

42500

Tires, chassis

7

Tyre type (pneumatic, solid, eco-friendly)

Solid tire

8

Number of wheels X=driven wheels (front/rear)

4X/2

9

Front tyre specification

14.00-24

10

Rear tyre specification

14.00-24

11

Front wheelbase

mm

2200

12

Rear wheelbase

mm

2345

13

Wheelbase

mm

4400

Size

14

Mast Lifting Height

mm

4000

15

Fork Size(L×W×T)

mm

2420x250x110

16

Mast Tilt Angle(F/R)

。

5/10

17

Mast Lowered Height

mm

4000

18

Free lifting height

mm

/

19

Mast Extended Height(With backrest)

mm

6005

20

Racking height (from the fork side of the gantry)

mm

/

21

Fork adjustment range (outside of fork)

mm

860-2720

22

Length to face of fork(Without fork)

mm

6665

23

Overall Width

mm

3050

24

Cab height

mm

3500

25

Distance from seat surface to roof rack

mm

1050

26

Front overhang

mm

1055

27

Rear overhang

mm

1105

28

Minimum Turning Radius

mm

6300

29

Minimum ground clearance (at frame)

mm

360

Performance

32

Maximum operating speed (no load/full load)

km/h

24/23

33

Maximum lifting speed (no load/full load)

mm/s

300/280

34

Maximum descent speed (unladen/full load)

mm/s

340/470

35

Climbing speed (unladen/full load)

%

20/15

36

Maximum traction (full load)

kN

130

Electric

37

Batteries

Lithium Iron Phosphate

38

V/Ah

618.24/456

39

Kwh

282

40

4000以上

41

kwh/h

50

42

Drive motors

Permanent magnet synchronous motor

43

Kw

90

44

Pump motors

Permanent magnet synchronous motor

45

Kw

2*60

Others

46

Hydraulic system working pressure

Mpa

22
