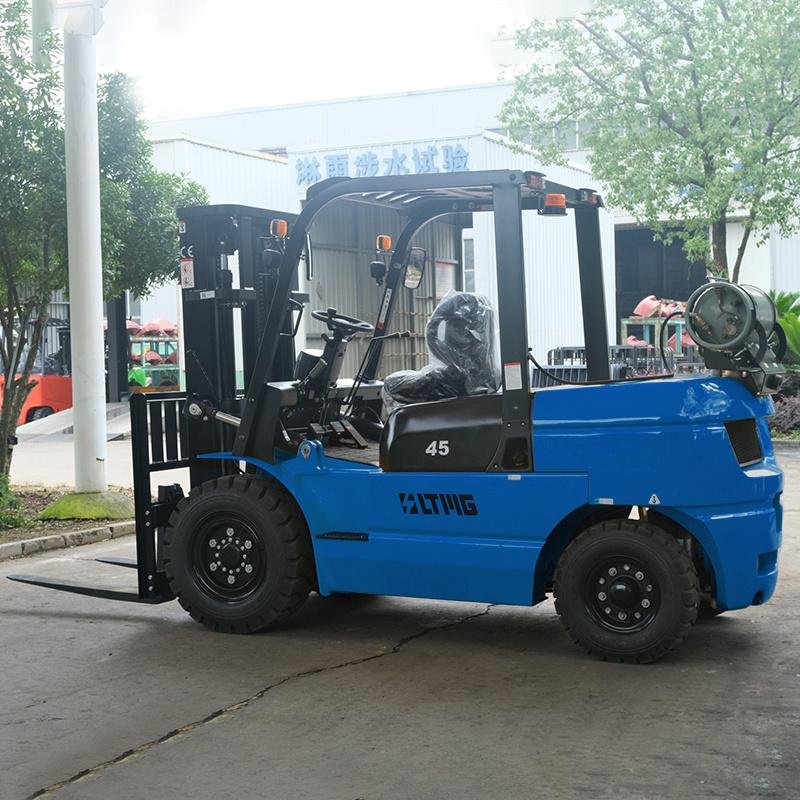

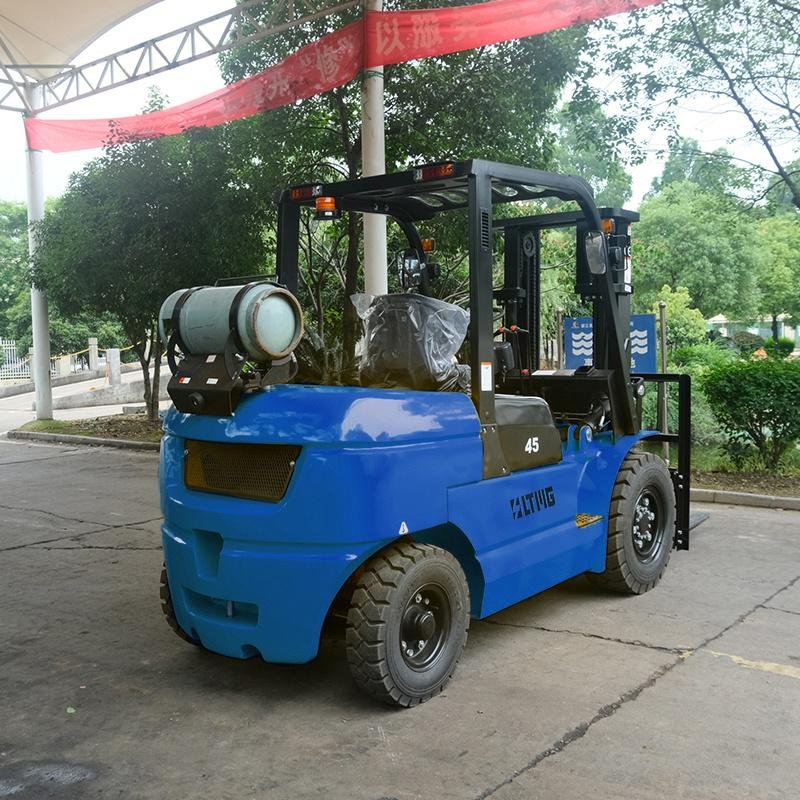

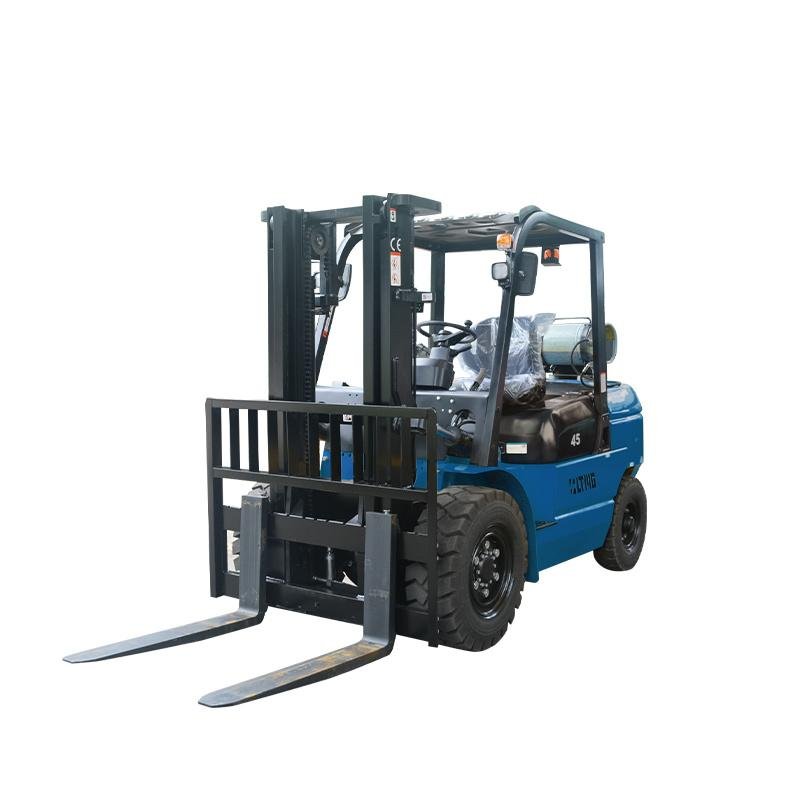

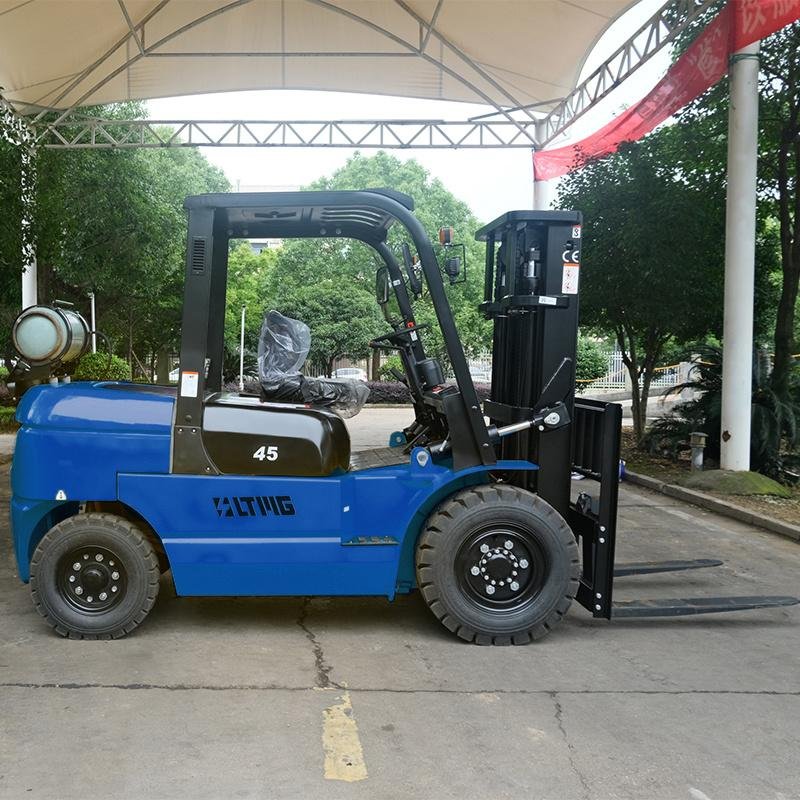

FG45 - 4.5 Ton LPG/Gasoline Forklift

(0 reviews)

$0.00

تم بيعها من قبل:LTMG

The small diameter steering wheel with tilt adjustment provides the ideal operating position. The superior responsiveness of the steering wheel optimizes maneuverability even in narrow spaces.

By focusing on enhancing reliability, reducing downtime,the LPG series is able to make the greater productivity for customer.

The new stamped aircleaner featuing tangential intake, double seal with safety filter is durable, cortosion-fee and vibration resistant, provides better fiter efficiency and lower intake resistance than theprevious.

The patent plated-fin type aluminum radiator is applied, the heat exchanging is approvedand improves the capability for operation in severe environments.

By optimizing transmission design, the power train provides higher efficiency, and the Max. driving speed is increased 20%.

رمز التخزين التعريفي:SKU-2443-QLKBJ
فئات:TBD
العلامات التجارية:LTMG

Specification

Model			FG45
Power Type			LPG
Rated Capacity		kg	4500
Load Centre		mm	500
Lift Height		mm	3000
Fork Size(L×W×T)		mm	1070×150×50
Mast Tilt Angle(F/R)		Deg	6°/12°
Front Overhang (Wheel center to fork face)		mm	579
Ground Clearance（Bottom of mast）		mm	150
Overall Dimension	Length to face of fork(Without fork)	mm	3260
	Overall Width	mm	1460
	Mast Lowered Height	mm	2270
	Mast Extended Height(With backrest)	mm	4165
	Overhead Guard Height	mm	2340
Turning Radius (outside)		mm	2910
Tire	Travel (Full load)	km/h	25
Tire	Lifting (Full load)	mm/s	400
Max.Gradeability		%	20
Tire	Front	mm	300-15-18PR
Tire	Rear	mm	7.00-12-12PR
Wheelbase		mm	2100
Service weight		kg	6400
Battery	Voltage/Capacity	V/Ah	（12/80）x2
Engine	Model		PSI4.3L
	Manufacture		PSI
	Rated output/r.p.m.	kw	76/2300
	Rated torque/r.p.m.	N·m	324/1700
	No.of Cylinder		6
	No.of Cylinder	mm	101.6×88.4
	Displacement	cc	4300
	Fuel Tank Capacity	L	125
Transmission	Type		Hydraulic
Transmission	Stage(FWD/RVS)		2/2

With technological innovation our product configuration and parameters will continue to change without notice;

if there is any doubt the specific confirmation of our international trade sales shall prevail;
