Specification

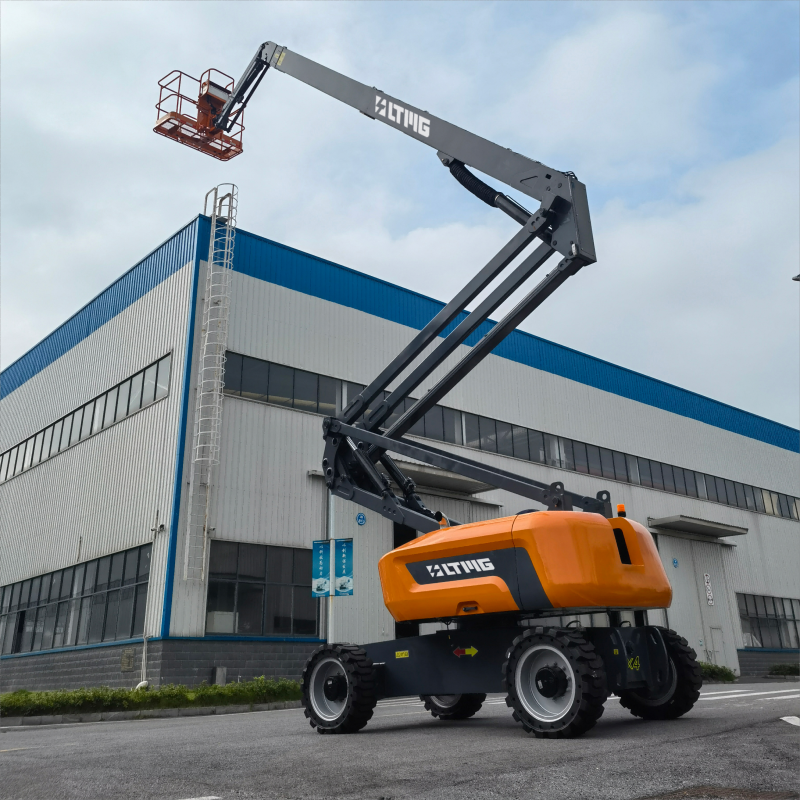

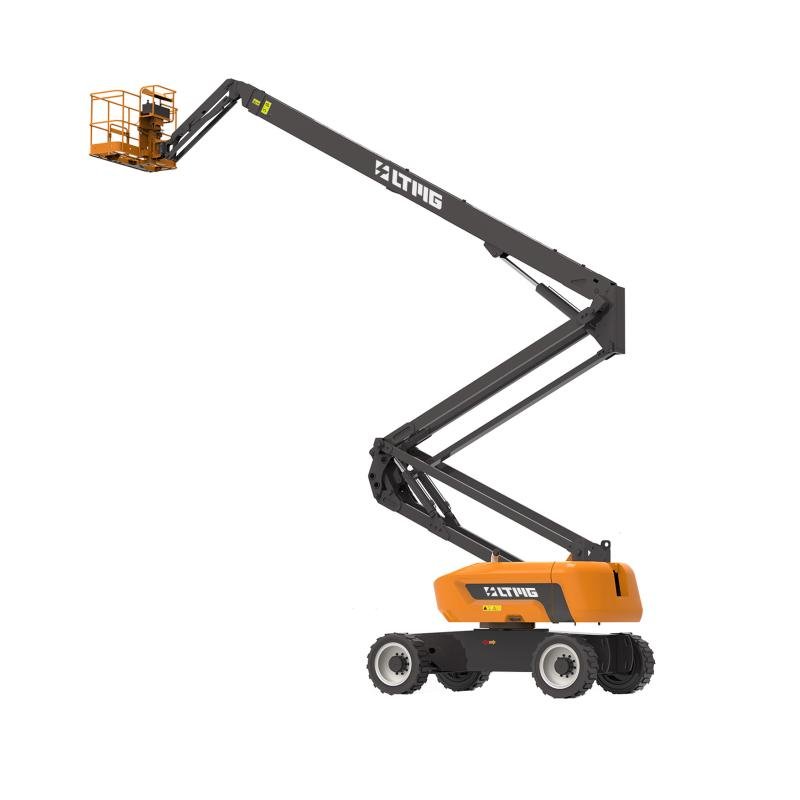

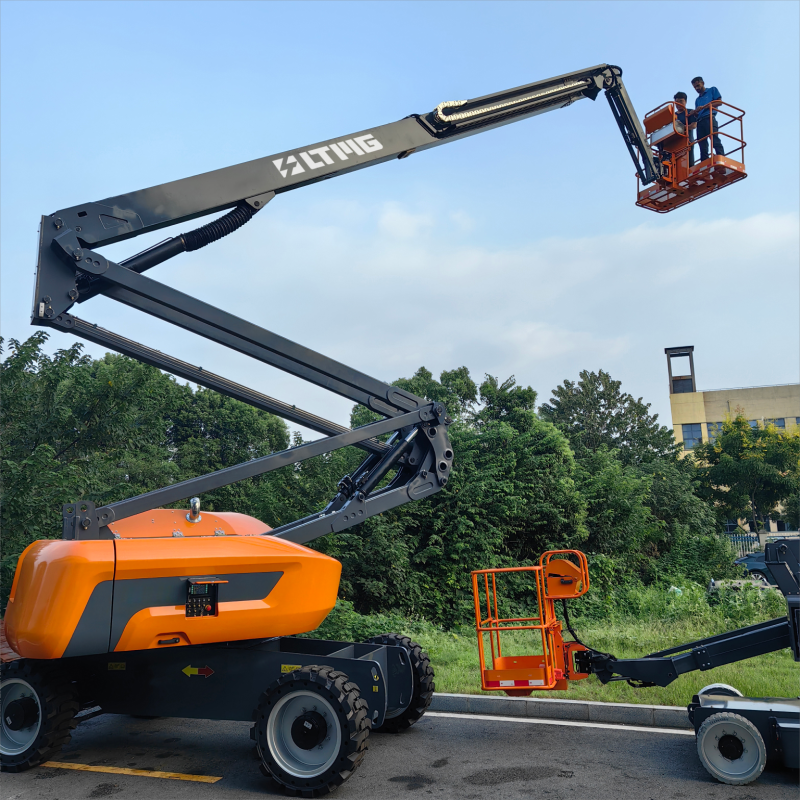

MODEL | LTQD1517 |
Working height maximum | 16.6m |
Platform height maximum | 14.6m |
Horizontal height maximum | 8.5m |
Up and over clearance max. | 7.8m |
Length-stowed[D] | 7.7m |
Width-stowed[E] | 2.28m |
Height-stowed[C] | 2.18m |
Platform size(L×W)[A*B] | 1.53m*0.76m |
Wheel base[F] | 2.03m |
Ground clearance[G] | 0.25m |
PRODUCTIVITY | |
Lift capacity | 230kg |
Max platform occupancy | 2 |
Drive speed-stowed(max | 5.1km/h |
Drive speed-raised(max) | 1.1km/h |
Grade ability-stowed | 40% |
Turning radius-inside | 2.47m |
Turning radius-outside | 5.18m |
Working slope maximum | 5° |
Tyre | 33*12-20 |
POWER | |
Power source | YANMAR |
Drive&steering | 4WD*2WS |
WEIGHT | |
Standard | 7800kg |
With technological innovation our product configuration and parameters will continue to change without notice;
if there is any doubt the specific confirmation of our international trade sales shall prevail;
عنوان: No. 506, Xinglinwan Road, Jimei District, Xiamen City, Fujian Province, Xiamen, Fujian, CN
With the mission of making the world greener, LTMG has focused on the construction machinery industry for more than 20 years. From R&D and production to reaching global customers, LTMG has always been quality-oriented and excellent service, conveying the power of China's machinery manufacturing to the world
