Name: LTS22 - 240KG Tracked Skid Steer Loader
Brand: LTMG
SKU: SKU-2443-GCCIK
Availability: InStock

أرسل إلى صديق

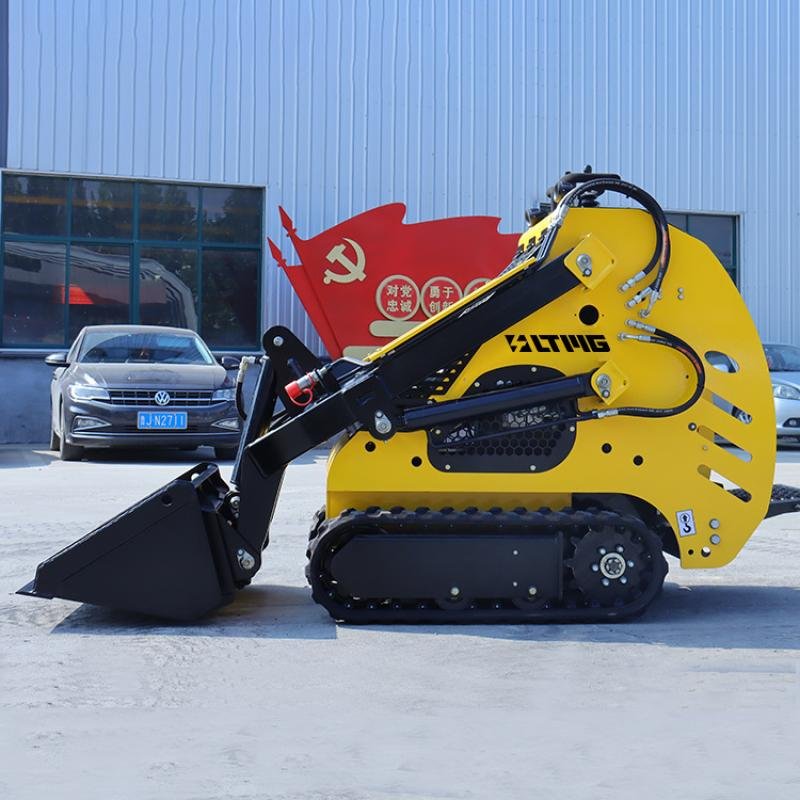

LTS22 - 240KG Tracked Skid Steer Loader

(0 reviews)

$0.00

تم بيعها من قبل:LTMG

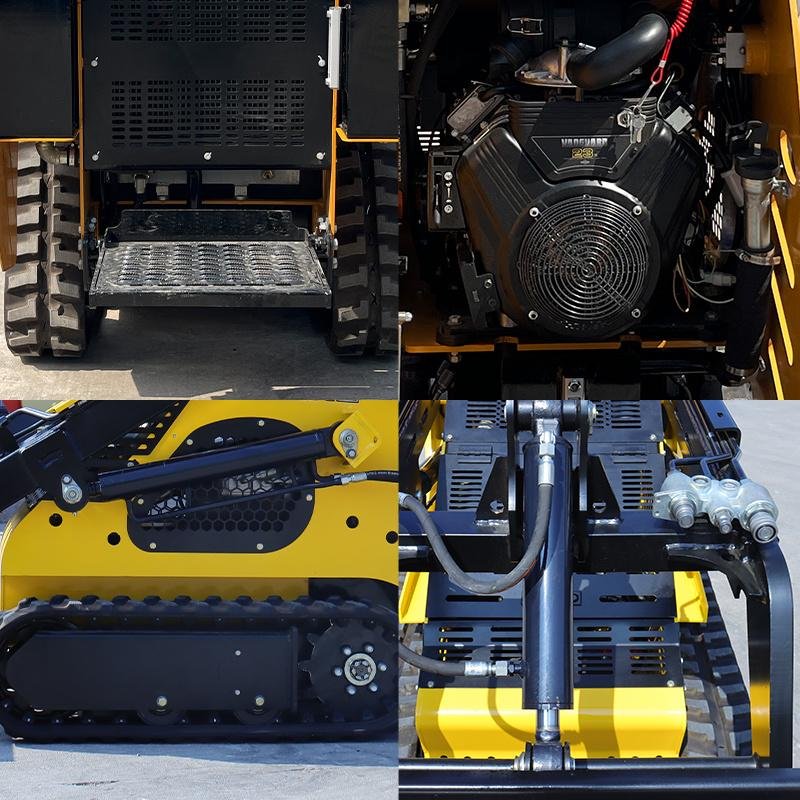

Adopting high-strength steel, sturdy and reliable.

Adopting luffing working arm to ensure high carrying capacity under smaller width.

Original engine, strong power, can choose a variety of brands of engines

رمز التخزين التعريفي:SKU-2443-GCCIK
فئات:TBD
العلامات التجارية:LTMG

Specification

Model	LTS22
Max. Working Height	2178 mm
Max. Pin Height	1890 mm
Max. Dumping Height	1395 mm
The Highest Point Discharge Distance	620 mm
Bucket Swing Angle	79°
Bucket Unloading Angle	36°
Opening-Closing Angle	14°
Angle Of Departure	25°
Total Height	1374mm
The Height From The Ground	90 mm
Wheelbase	705 mm
Length（Without Bucket）	1900 mm
Total Width	830mm
Bucket Width	835 mm
Total Length（L）（With Bucket）	2400 mm
Turning Radius	1850 mm
Engine	Briggs & Stratton
Engine Model	HONDA /GX690
Rated Power	17.2KW
Rotating Speed（Rpm）	3000
Hydraulic Pressure	20Mpa
Load Weight	240 Kg
Bucket Capacity	0.12m³
Max. Lifting Power	850Kg
Speed	6Km/h
Operating Weight	1185kg
Main Pump	Qty: 2
Flow Of Main Pump	36L/min
Valve	Qty :2

With technological innovation our product configuration and parameters wil continue to change without notice,
if there is any doubt the specific confirmation of our international trade sales shall prevail;
