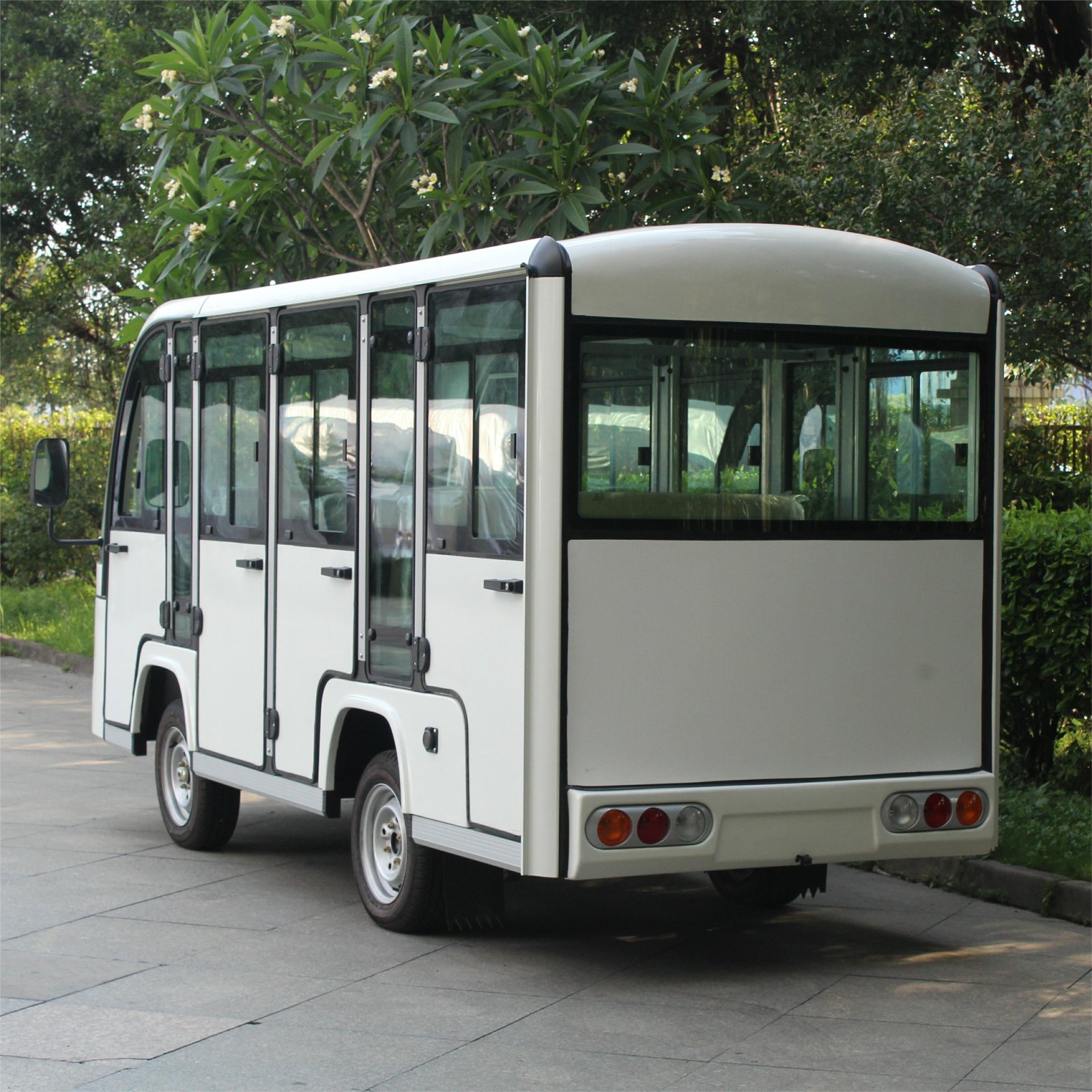

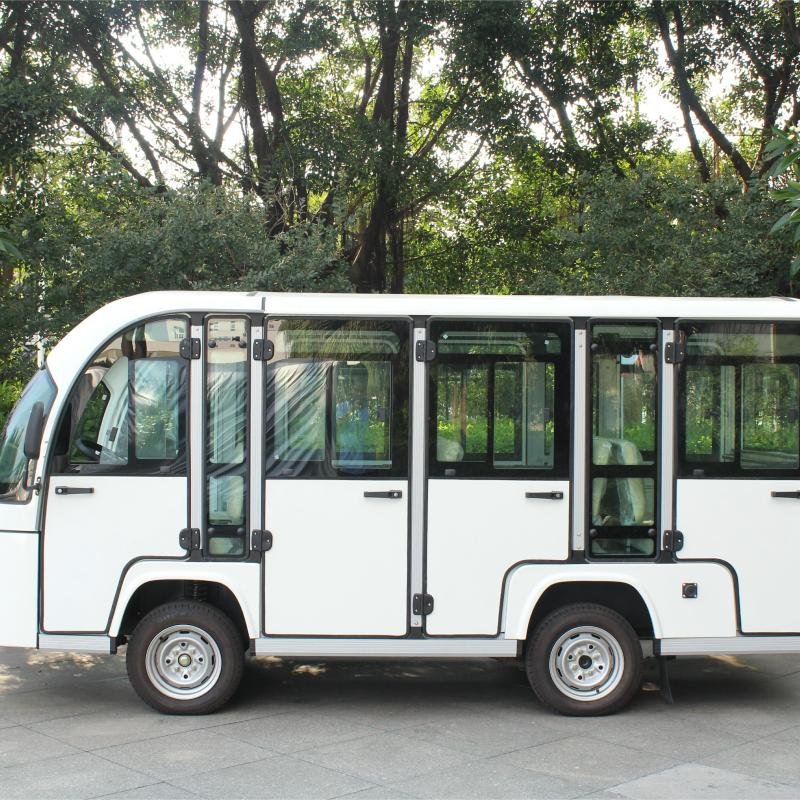

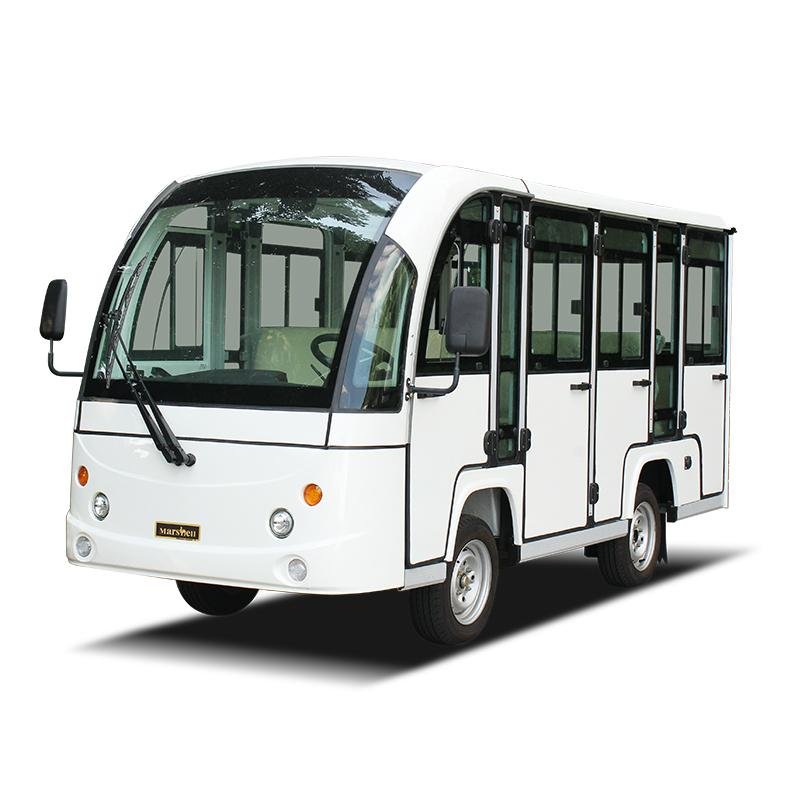

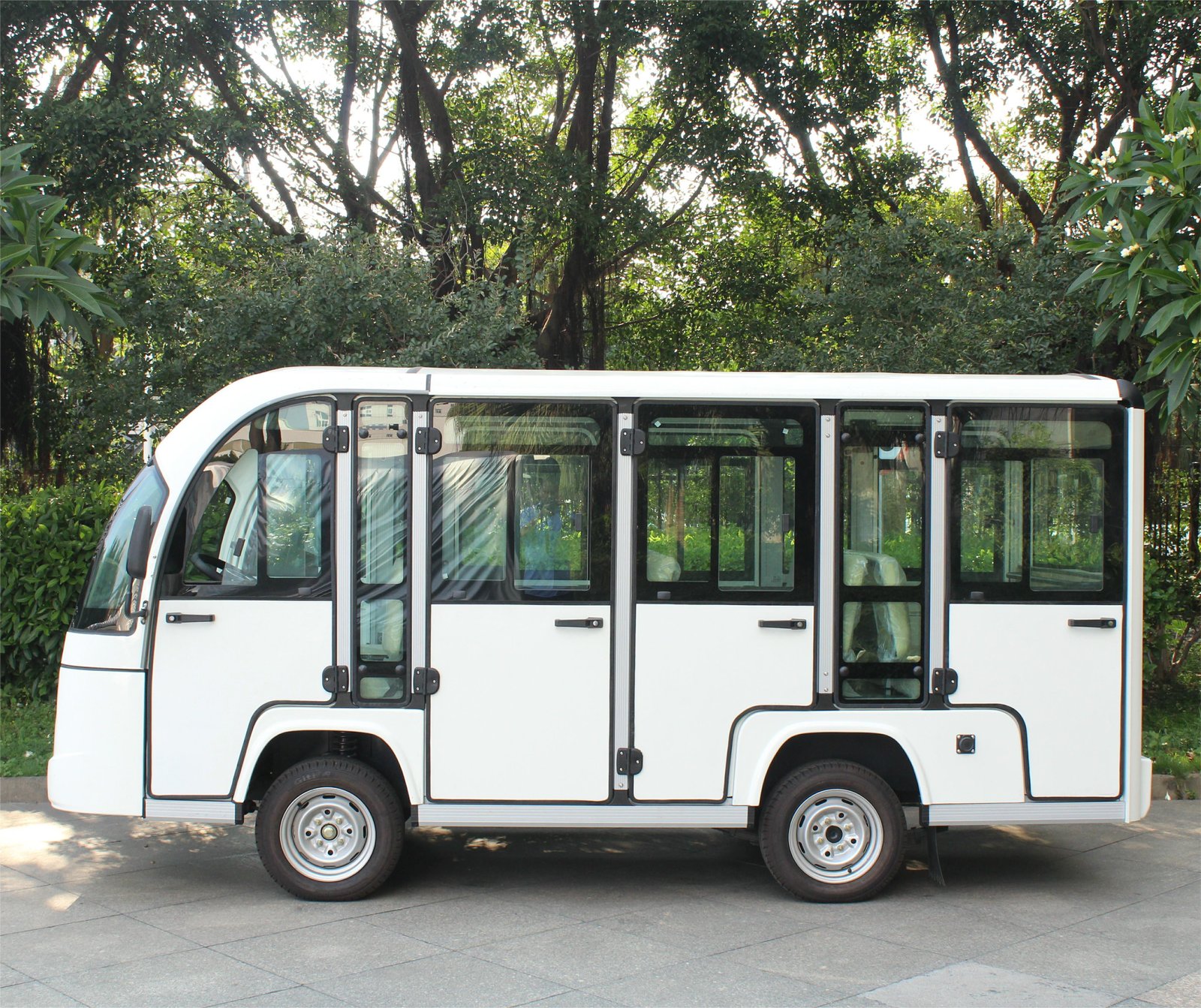

11 Seater Electric Lithium Enclosed Sightseeing Bus DN-11C

Electric Shuttle Bus DN-11C Lithium Battery Edition Features

1. Standard white color with simple yet attractive appearance;

2. Four wheels hydraulic braking system and independent parking brake;

3. Equipped with 72V lithium-ion battery for better performance and stronger power;

4. Closed door edition is suitable for all weather situation, especially for cold season and rainy weather;

5. Smart steering system for small turning radius;

Electric Shuttle Bus Lithium Battery Edition Specifications

Battery	Marxon 72V 200AH lithium battery	Marxon 72V 300Ah lithium battery
Motor	AC system 72V 7.5KW	AC system 72V 7.5KW
Controller	AC 72V 400A	AC 72V 400A
Charger	72V 20AH	72V 20AH
Range (loaded)	160km	160km
Overall dimensions(mm)	4800*1520*2025	4322*1550*2080
Suspension	Macpherson strut suspension
Brakingsystem	Four wheels hydraulic braking system and independent parking brake
Max. speed	28km/h
Max. climbing ability(loaded)	20%
Ground clearance(mm)	130

Electric 11 seater Enclosed Shuttle Bus Lithium Edition Configuration

STANDARD  CONFIGURATION:
DESCRPTIONS	REMARKS
Body	Metal steel body
Roof	Aluminum frame + fiber glass cover
Windshield	One-piecesee-through laminated windshield
Wiper	Wiper
Speed meter	Speed meter, battery indicator, voltmeter, current-meter
Front and rear light	Full lights system
OPTIONALCONFIGURATION/ACCELERATORS:
Air condition;  Full  enclosure   weather  curtains;  Sunshade c urtain; 13 inch aluminum rim; Music player with 2 pcs speaker;  Solar  panel  on  top;  Seat  belts; Carbin fan; Bus seats
COLORS:
Anycolors can be customized
