Specification

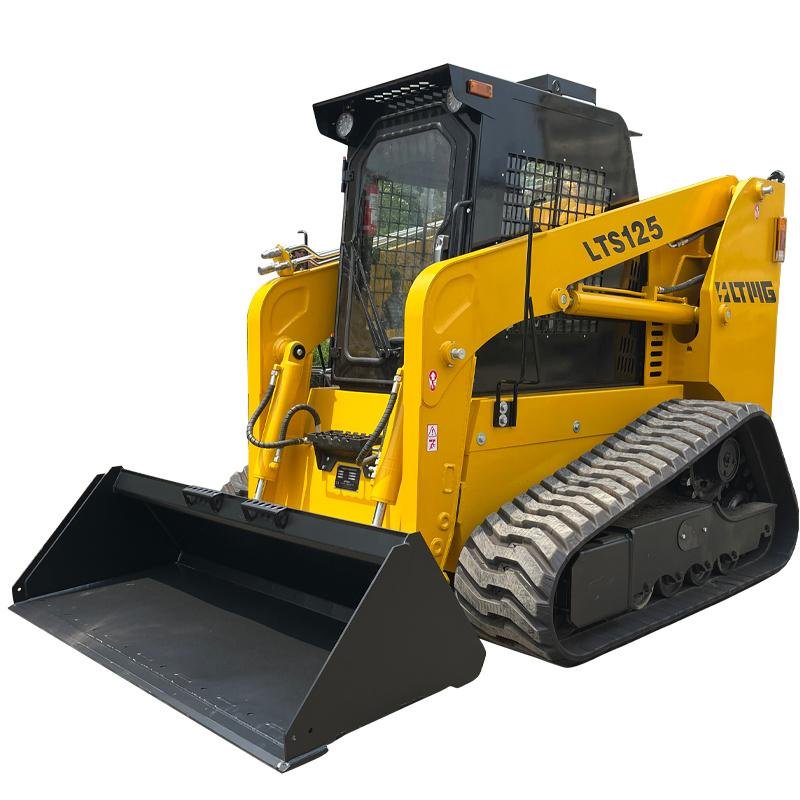

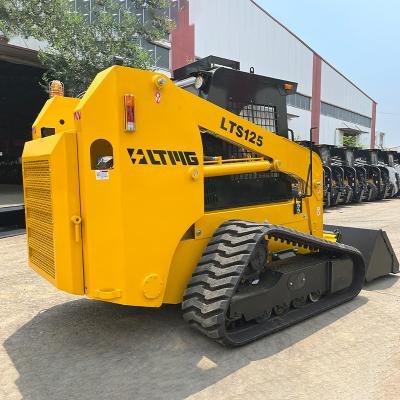

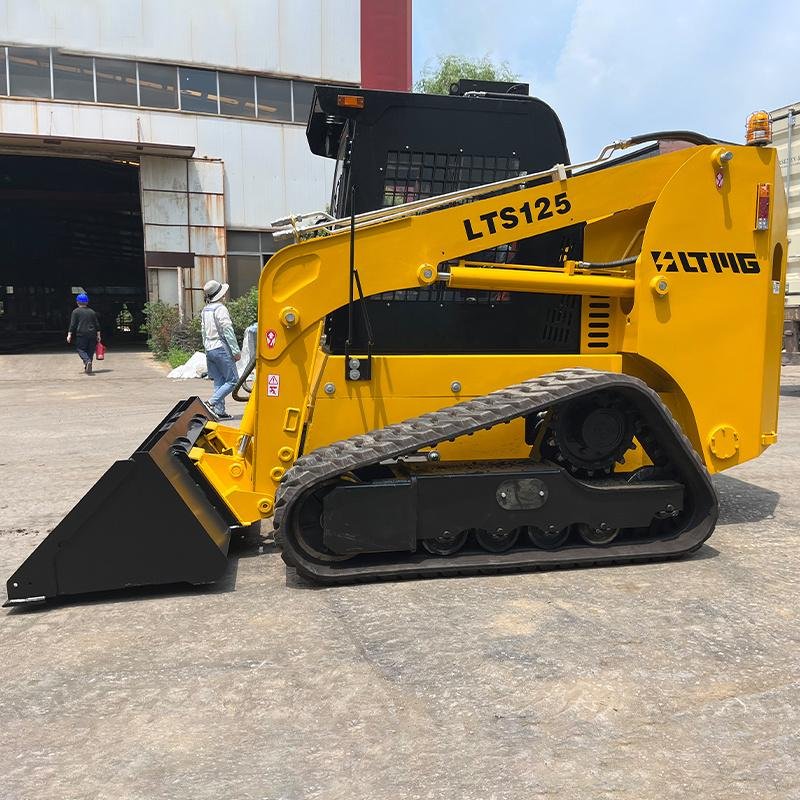

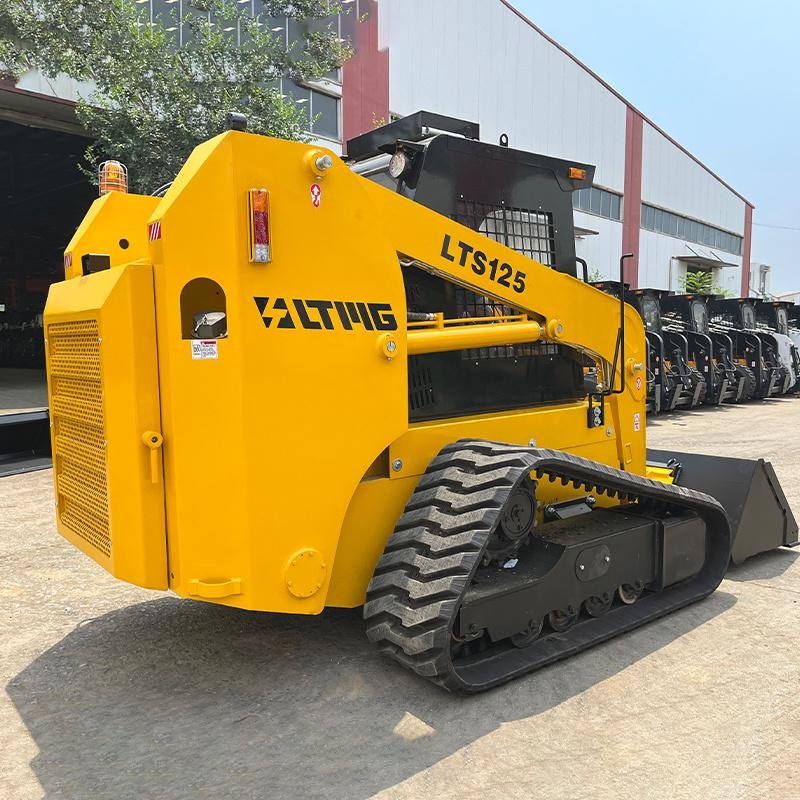

Model | LTS125 | |
Operating Load | Kg | 1500 |
Max Speed | Km/H | 12\18 |
Rated Flux | L/Min | 88 |
L/Min | 140 | |
Track Model | 450X86 | |
Self Weight | Kg | 4800 |
Bucket Capacity | M³ | 0.6 |
Overall Operating Height | mm | 3770 |
Height To Top Of Cab | mm | 2160 |
Without Bucket Length | mm | 3000 |
Overall Length With Bucket | mm | 3700 |
Dumping Height | mm | 2450 |
Width | mm | 2124 |
Bucket Width | mm | 2160 |
Height To Bottom Of Level Bucket | mm | 2983 |
Dumping Angle At Maximum Height | ° | 40 |
Height To Bucket Hinge Pin | mm | 3150 |
Dumping Reach | mm | 700 |
Rollback Of Bucket On Ground | ° | 30 |
Rollback Of Bucket At Full Height | ° | 104 |
Wheelbase | mm | 1500 |
Ground Clearance | mm | 200 |
Angle Of Departure | ° | 20 |
Front Turning Radius Without Bucket | mm | 1365 |
Front Tuning Radius | mm | 2200 |
Rear Tuning Radius | mm | 1742 |
Rear Axle To Bumper | mm | 938 |
Tread Width | mm | 1654 |
Engine | Weichai |
With technological innovation our product configuration and parameters will continue to change without notice;
if there is any doubt the specific confirmation of our international trade sales shall prevail;
Adresse: No. 506, Xinglinwan Road, Jimei District, Xiamen City, Fujian Province, Xiamen, Fujian, CN
With the mission of making the world greener, LTMG has focused on the construction machinery industry for more than 20 years. From R&D and production to reaching global customers, LTMG has always been quality-oriented and excellent service, conveying the power of China's machinery manufacturing to the world
