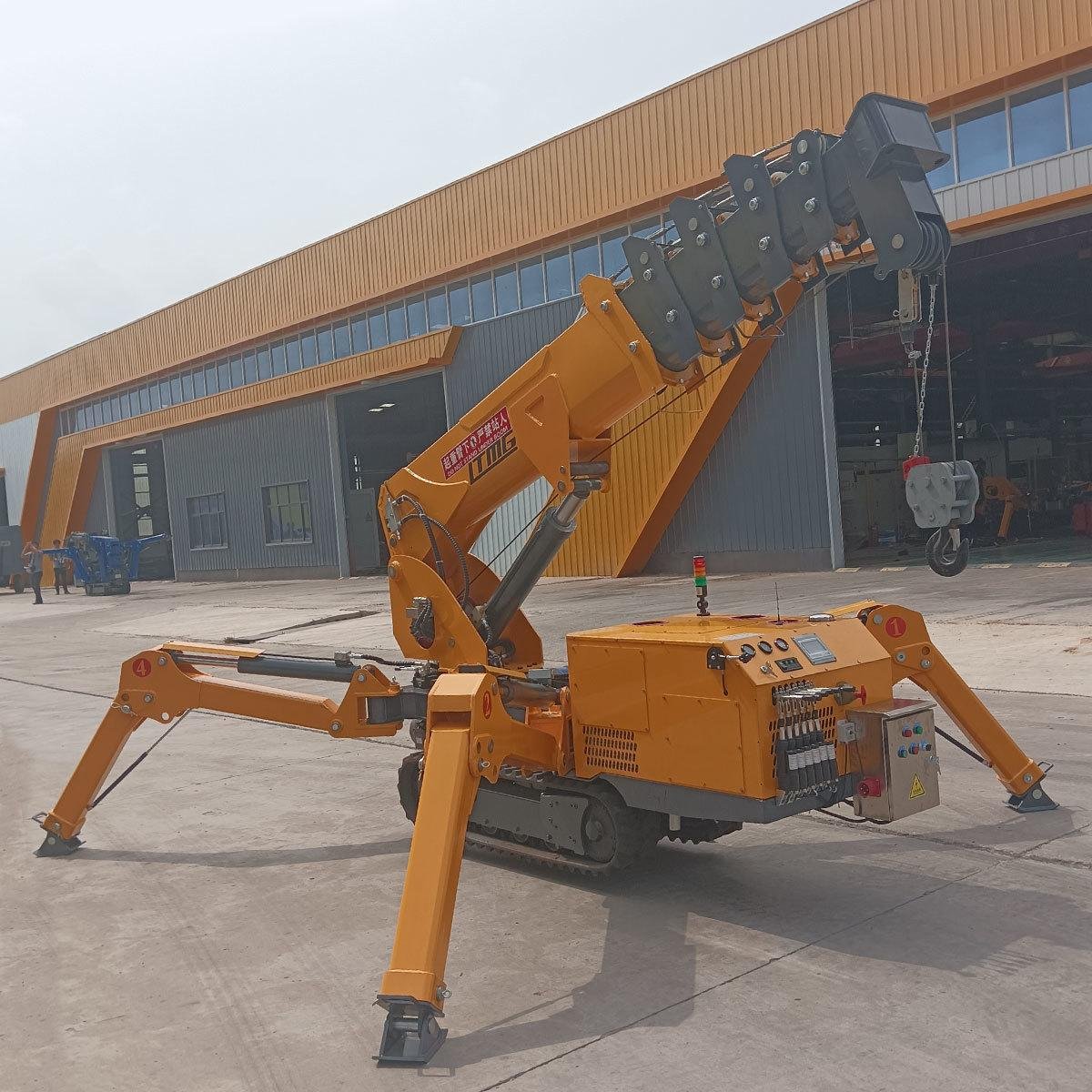

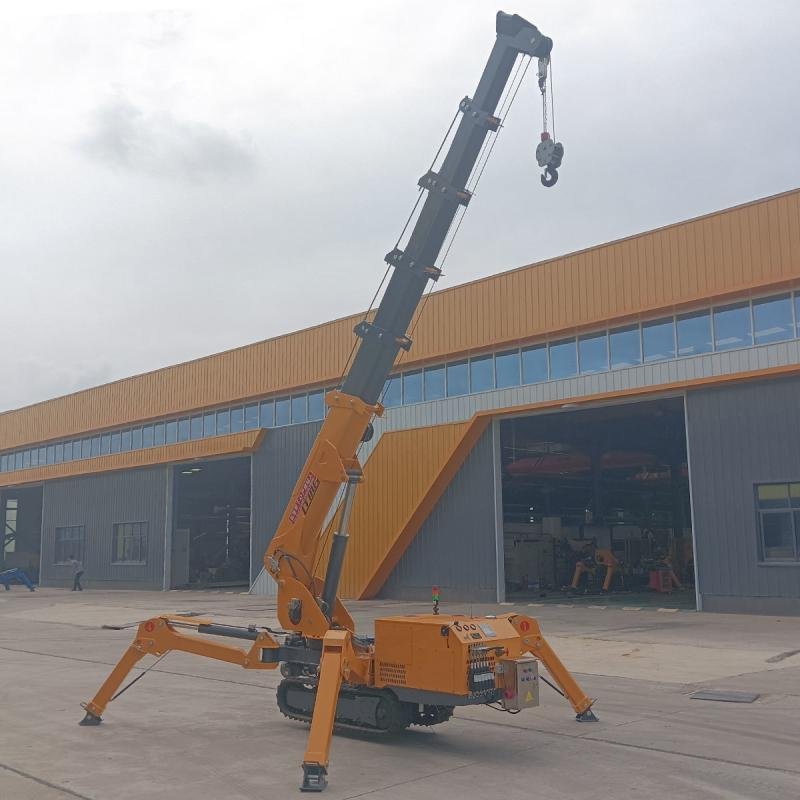

SC30-3 ton crawler spider crane

(0 reviews)

$0.00

Sold By:LTMG

The spider crane is a new type of aerial work equipment, primarily designed to assist users in completing high-altitude tasks. It eliminates the need for hydraulic cranes to occupy transport trucks, as it can move around the construction site on its own. It can even enter tight spaces for indoor lifting operations, making construction more convenient and feasible.

Track spider cranes have good stability, large load capacity, good anti-slip performance, and low road surface requirements. They can move around the construction site independently and even enter confined spaces for indoor lifting operations. They are adaptable to any geographical environment and complex weather conditions, making them especially suitable for disaster relief and emergency rescue.

Small spider cranes can be transported via elevators to the upper floors of high-rise buildings for use in the installation of glass frames and other exterior wall work.

SKU:SKU-2443-NV2BT
Kategorien:TBD
Brands:LTMG

Specification

rated load		3t
Max. working radius		8.83m×0.2t
Max. ground lift		9.2mX0.7t
Max. underground lift		10mX1t(4 ropes) 20mX1t(2ropes) 40mX0.74t（1 ropes）
Winch	Hook up speed	0-8m/min (4 ropes）
Winch	Wire rope specifications	Φ8mm×45m
Telescopic system	Boom type	5-section boom, U-shaped structure
Telescopic system	Boom length/time	3.1m-9.2m/20sec
Undulating device	Boom angle/time	0-78°/13sec
Gyratory device	Rotation angle/speed	0-360°（succession）/60sec
Outrigger	Outrigger action form	Manual unscrewing+ hydraulic automatic support(two legs)
Outrigger	Max. extension (mm)	4530（L）X4370（R）X3700（F）
Walking device	Way of walking	Hydraulic motor drive, two -speed
	Walking speed	0-2.5km/h
	Grade ability	25°(36%)
Motor	Voltage	AC380V
Engine	Producer	Changchai
	Type/displacement	EV80/F195
	Start methoc	Electric start
	Startup performance	-5℃~40℃
	fuel/volume	Diesel/8L
	battery capacity	12v 45AH
	Fuel consumption	274g/kW-h
	Noise level	Rated speed ≤81.5dBA (1m)
	Emission standard	National II
operating system Standard configuration	Type of operation (jib/outrigger),	Manual operation,manual walking +remote control (oplional)
operating system Standard configuration	manual travel	Manual operation (remote control optional)
Standard Configuration	Diesel and electric motor (dual power)
Length, width, height	2.98m 0.8m 1.5m
Self-weight (T)	2.35T
Crawler	230(W)72(Pitch)50(Section)
Option	Optional torque controller

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
