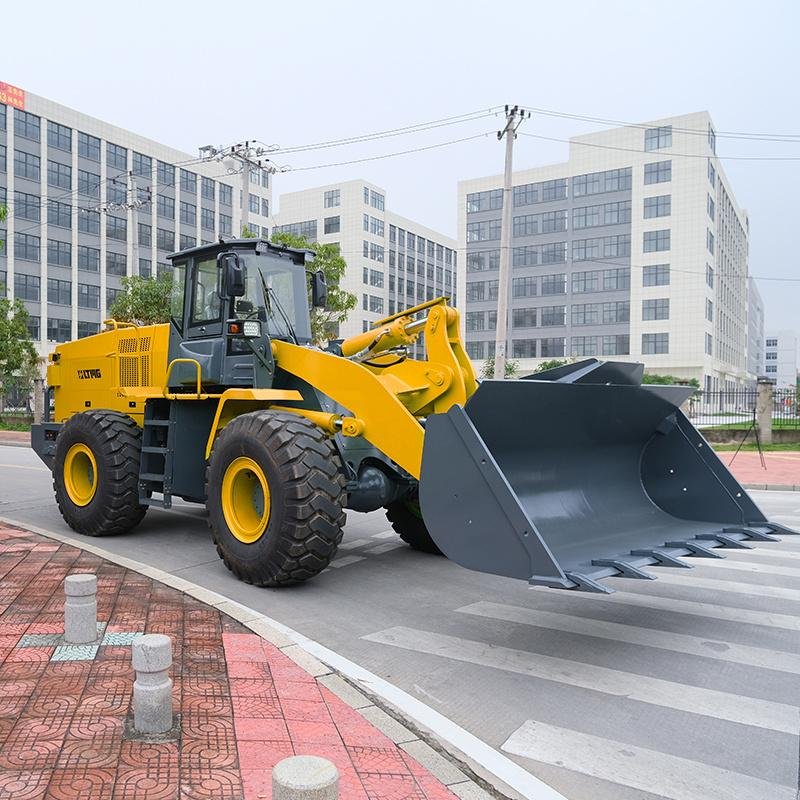

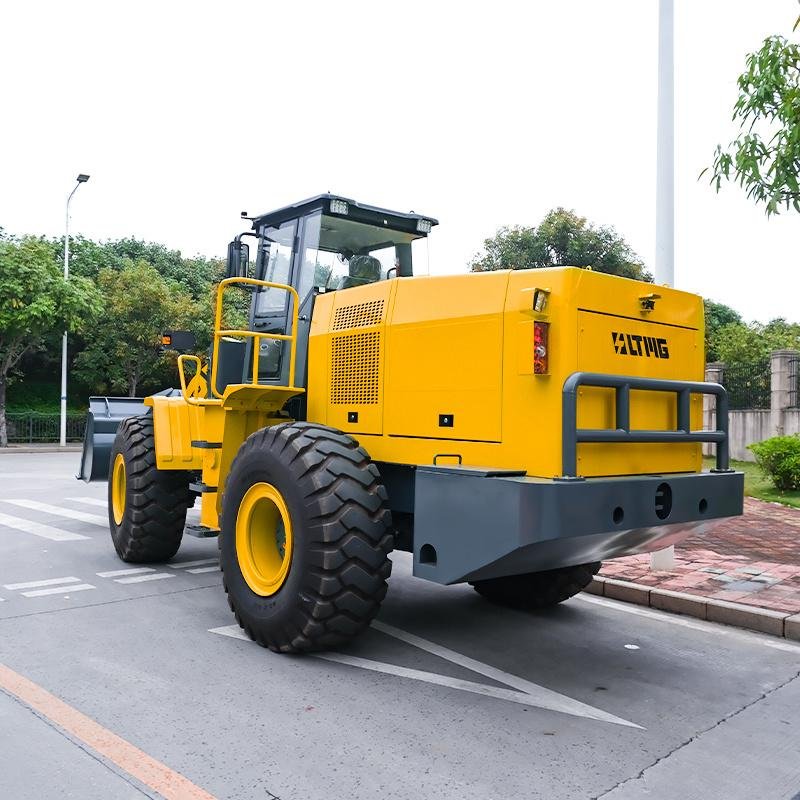

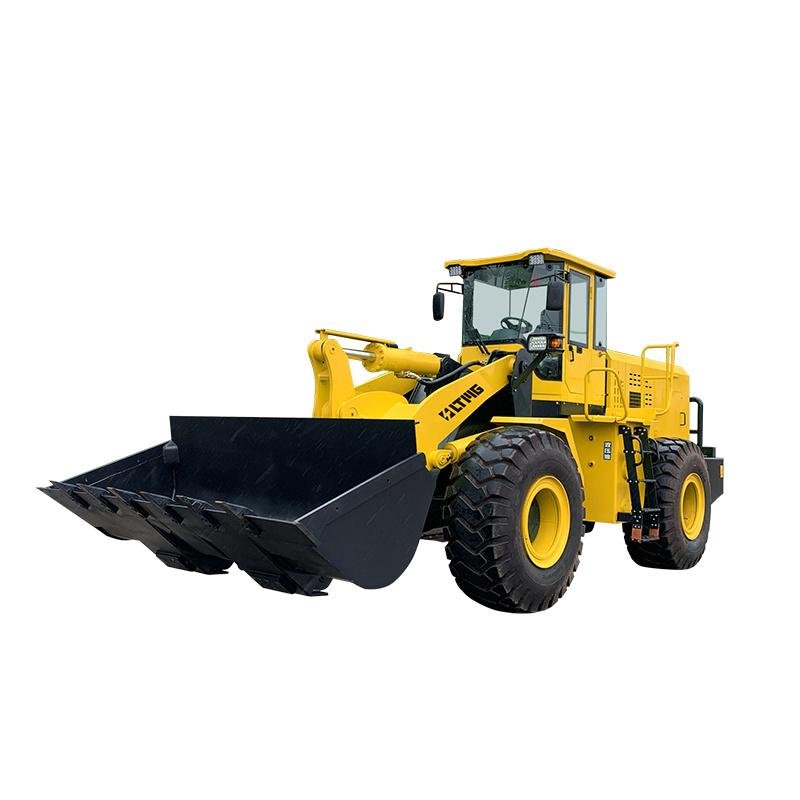

LT950EV- 5 Ton Electric Loader

(0 reviews)

$0.00

Sold By:LTMG

Vehicle intelligence level is high, safe and comfortable, energy saving.

Reinforced heavy-duty frame with strong load-bearing capacity and enhanced strength of structural parts to adapt to heavy-duty working conditions.

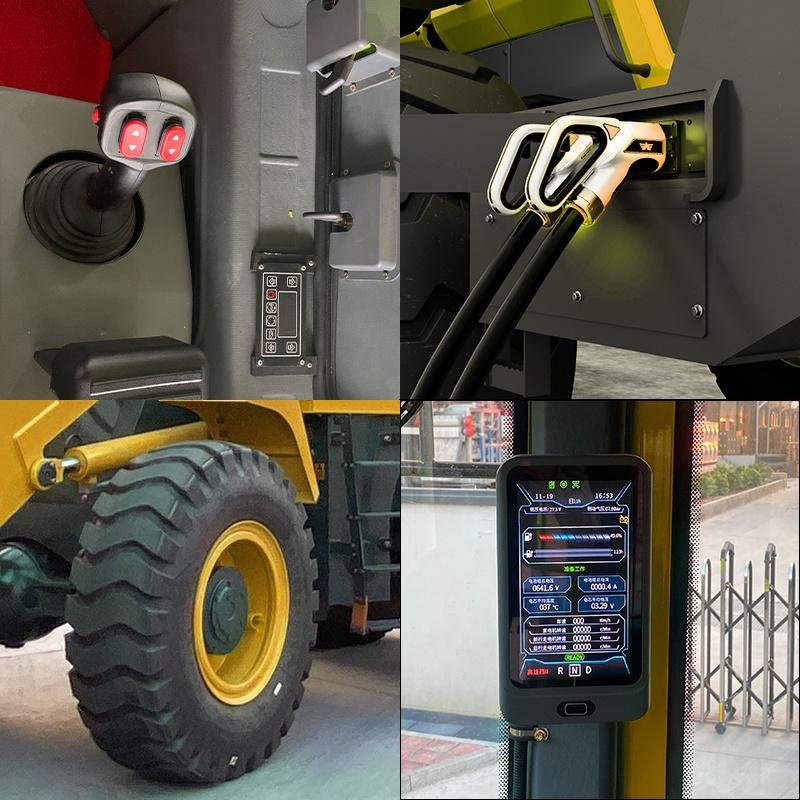

The controller is integrated into an all-in-one controller with dual motors running independently of each other.

Dual gun fast charging, fast charging in extreme cold and hot environments.

Reinforced heavy-duty drive axle with high load carrying capacity, optimised and enlarged axle shell cross-section,reinforced main reduction and wheel edges for more stable and reliable quality.

Adopting high-efficiency permanent magnet synchronous motor to provide power for the whole machine, compared with the traditional engine, it is small in size, light in quality, high in power density and high in reliability.

SKU:SKU-2443-EUV7G
Categories:More
Brands:LTMG

Specification

Model		LT950EV
Rated Load			5000kg
Bucket Capacity			3m³
Operating Weight			18500kg
Rated power			270kw
Dumping Height			3350mm
Dumping Reach			1250mm
Wheel Base			3350mm
Wheel Tread			2250mm
Max. Traction			170kN
Max. Rising Power			174kN
Total Time			9.7s
Lifting Time			5.8s
Dumping Time			3.5s
Max. Climbing Angle			28°
Turning Angle			40°
I/II Forward Gear I/II			18/36Km/h
I Reserve Gear I			18/36Km/h
Overall Dimensions（LWH）			8660mmX2960mmX3520mm
Drive Axles			Dry Bridge
Service Brake			Gas cap oil, clamp disc type
Hand Brake			Pneumatic control, clamp type
Air Conditioning System			Electric, heating and cooling
System Voltage			DC24V
Tire Model			23.5-25
Battery Life			4-5h
Charging Time			60min（300Kw Charging Pile）
Power Battery	Type		Lithium iron phosphate
	Rated Capacity		618V/456Ah
	Store Energy		282kWh
	Nominal Voltage		618V
Working Hydraulic System	Type		Double Pump Confluence
	Operation Method		Pilot Control

With technological innovation our product configuration and parameters will continue to change without notice;

if there is any doubt the specific confirmation of our international trade sales shall prevail;
