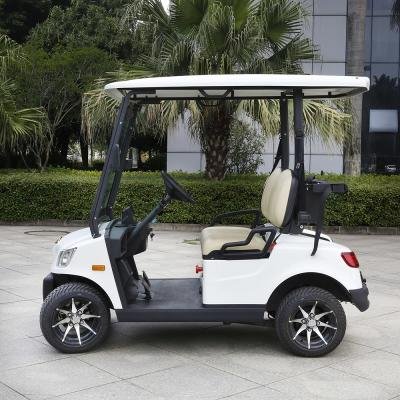

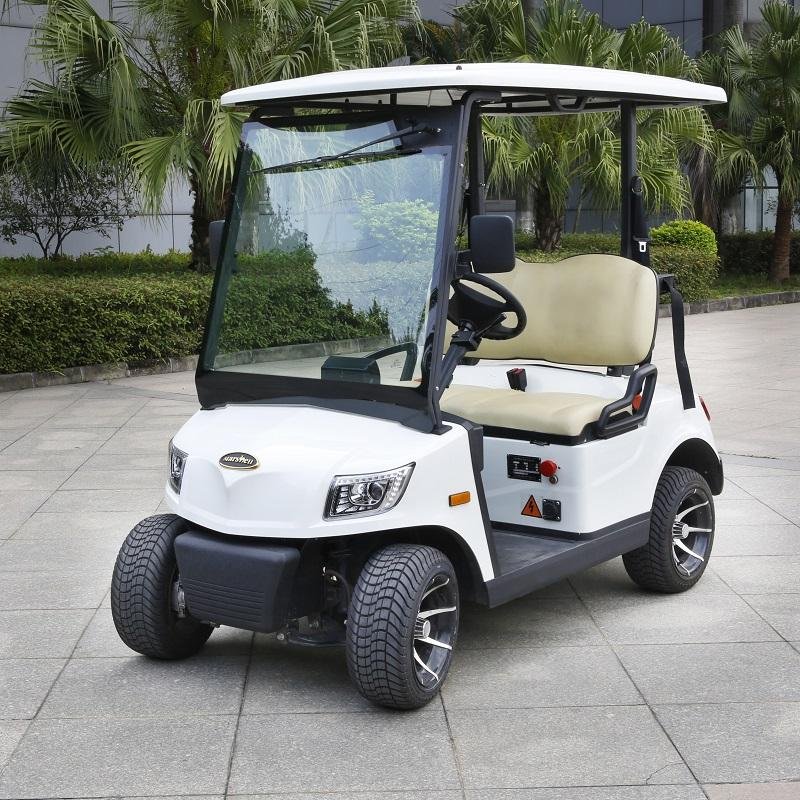

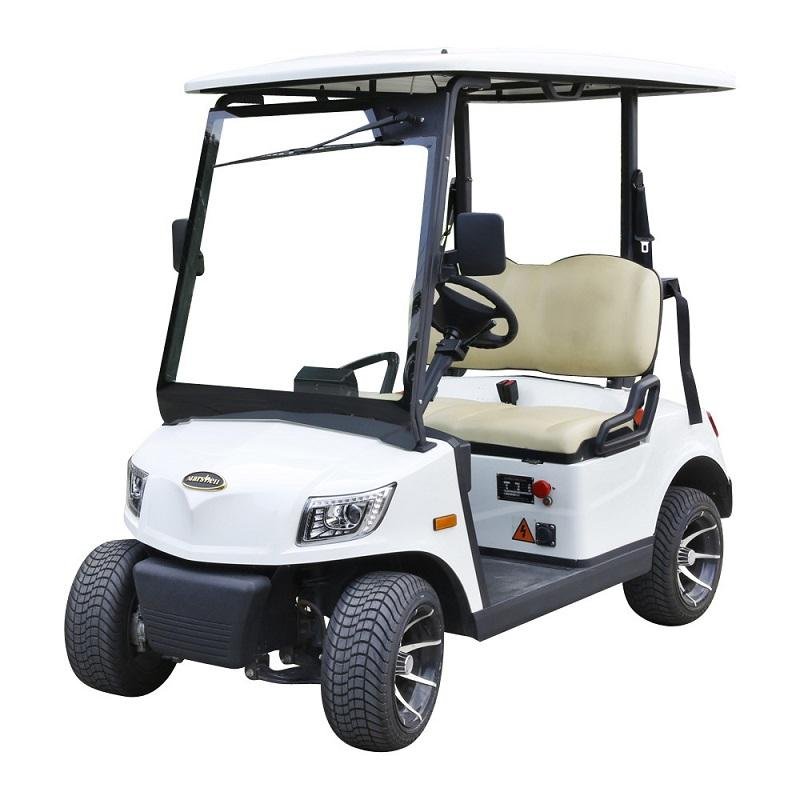

EEC Approved DS-A2-2

Electric Golf Cart DS-A2-2  Sell Points

1. A combination of style and performance.

2. Smooth, silent, and seamless driving control.

3. Regenerative braking to near zero speed.

4. Excellent hill climbing and parking abilities.

5. Consistent and efficient electric drive-train.

6. Quick and efficient battery charge maximizes up-time.

7. Vertically integrated production process ensures premium quality and reliability.

Electric Golf Cart  DS-A2-2 Specifications

Motor	AC 48V 4KW	Driving Range	85 KM
Controller	48V 400A	Speed (km/h)	40 km/h
Battery	Leoch AGM Free Maintainence  Battery 8V* 6PCS	Turning Radius	3.1 m
Charger	On Board Charger 48V 25A	Brake Distance	4.5m
Ground Clearance	120 mm	Tire	12-inch aluminum wheels, low profile tire,       tire size 215/40R-12 with Emark
Wheelbase	1670 mm	Dimension	2440 * 1174 *1950 mm
Front Tread/Rear	910 mm/ 980 mm	Climbing Capacity	30%
Optional parts	1. Battery: Available for Trojan T 875, T106, US Battery 8V, and 6V   2. Caddy Cooler;   3. Ball washer    4. Side view mirror and rearview mirror;   5.Seat belts(Two points retractable or three points retractable)  6. Rain Cover;  7. Sunshine Curtain;    8. 10-inch aluminum alloy rim with 205/50-10 size turf tire;                      9. Speedo(Multifunction, can show time, speed, driving range, battery capacity, and rear view when reversing)  10. Rear Cargo box;
