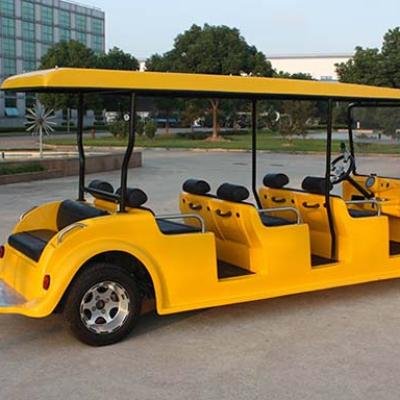

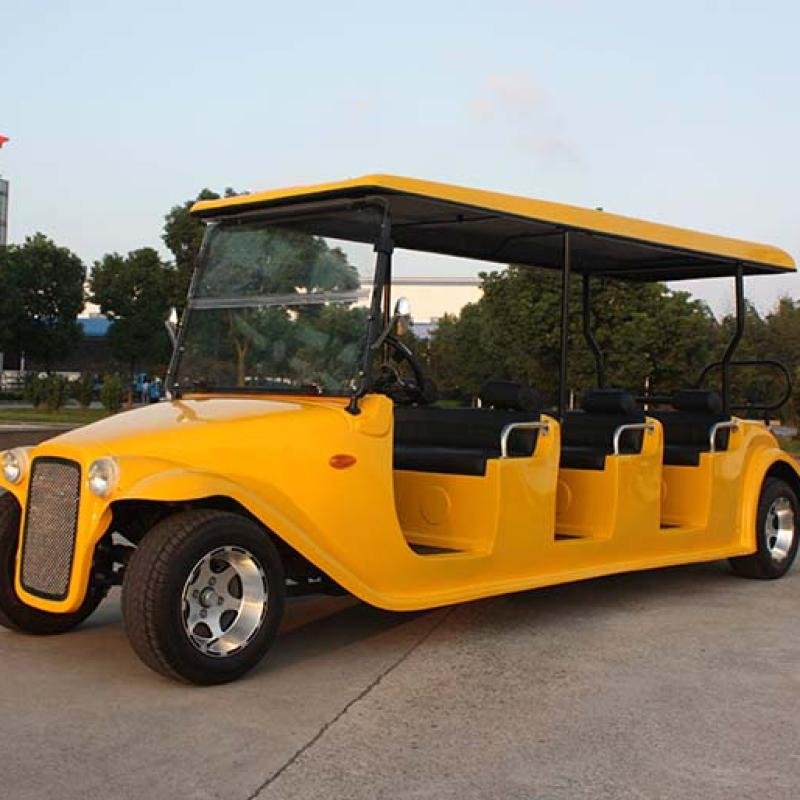

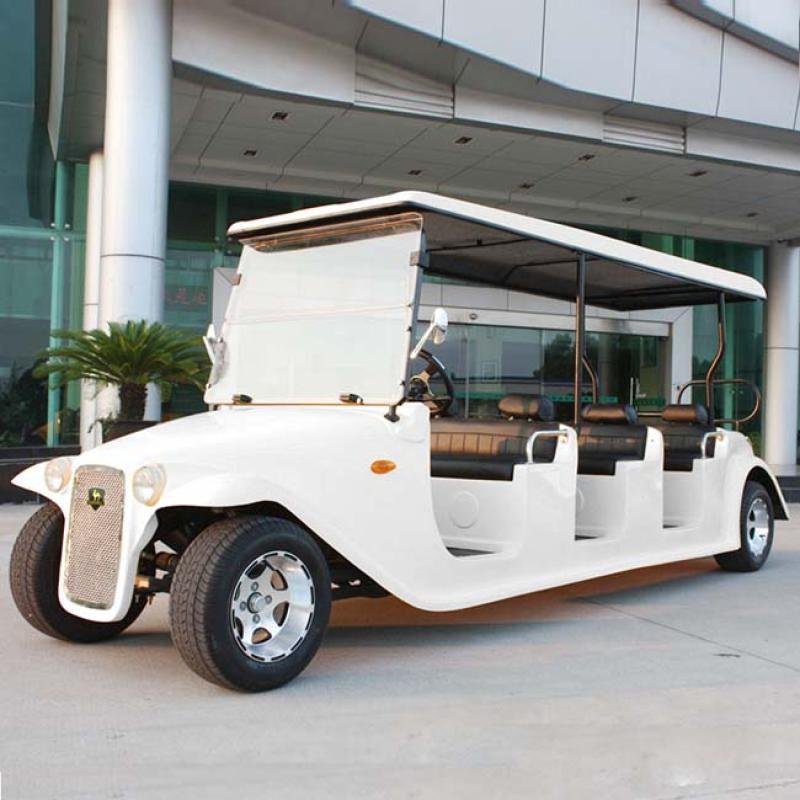

Electric Vintage Cart DN-8D

Electric Vintage Cart Features

1. Good aftersale-service, as most parts are manufactured by ourselves;

2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts; #Electric Classic Cart#

3. Import main parts: US battery (From USA) and Delta-Q chargers(From Canada), Curtis Controller(From USA);

4. Brake system: Rear wheel Mechanical Drum Brake; #Electric Vintage Cart#

5. Option parts: Full enclosure weather curtains; Split Windshield; 10''Alloy rim and tyre; Caddycooler; Rear&Side mirror; Different colors and option parts;

6. Good hill climbing ability, the system allows you to customize the car to fit your course; #Electric Classic Cart#

7. Smart steering system, easy to make forward and backward;

8. Good climbing ablity and can park easily on Hills;

9. Can be easily to be modified to Utility carts.

Electric Vintage Cart Specifications

Passenger capacity:	8	Gross weight:	770kg
Battery:	8V 165AH*6pcs	Carring capacity:	680kg
Motor:	AC 48V 4KW	Steering:	Rack&Pinion'' Sreering
Controller:	48V 500A	Brakes:	Rear Wheel Mechanical Drum Brake
Charger:	On board charger	Tire:	20*9.00-12
Max.Speed:	25km/h	Ground clearence:	150mm
Max.travelling range:	60km	Overall dimension:	4740*1485*1250mm
Climbing capacity:	20%	Qty per container:	2pcs/20GP 3pcs/40GP4pcs/40HQ
Brake Range:	＜6.5m	Standard parts:	Lighting system, Side mirrior
Minmum Turning radius:	＜6.5m	Optional parts:	CD players, Roof, Trojan Battery
