Specification

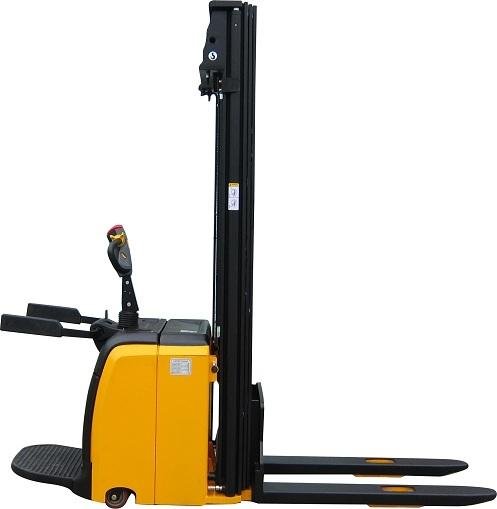

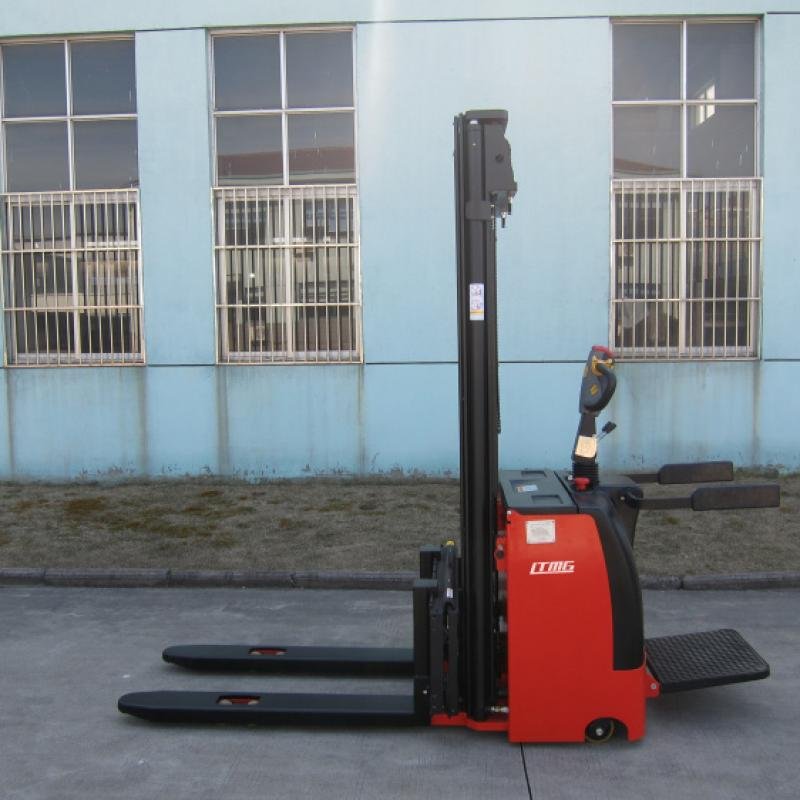

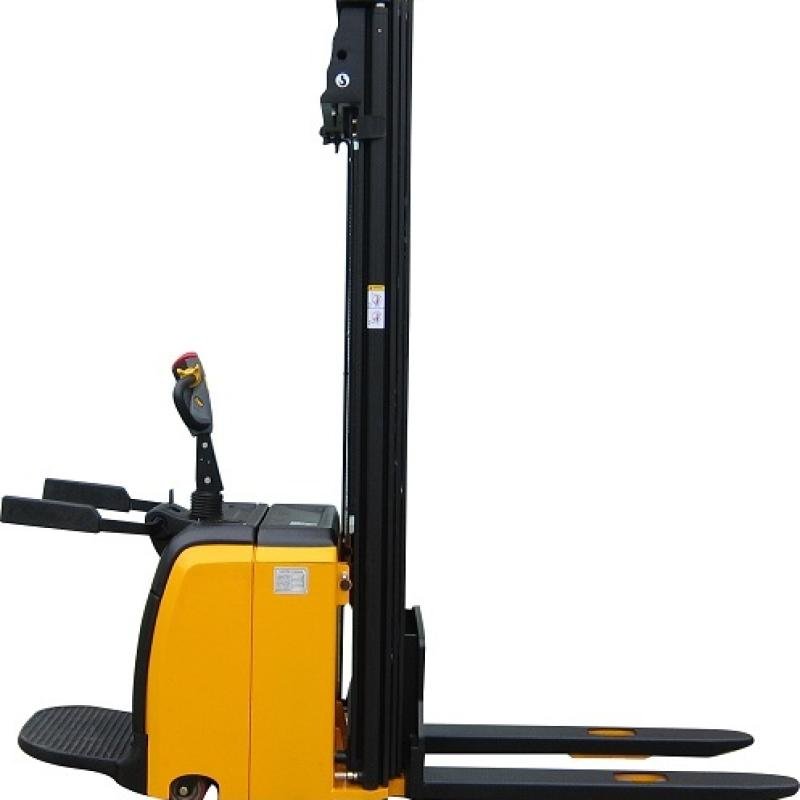

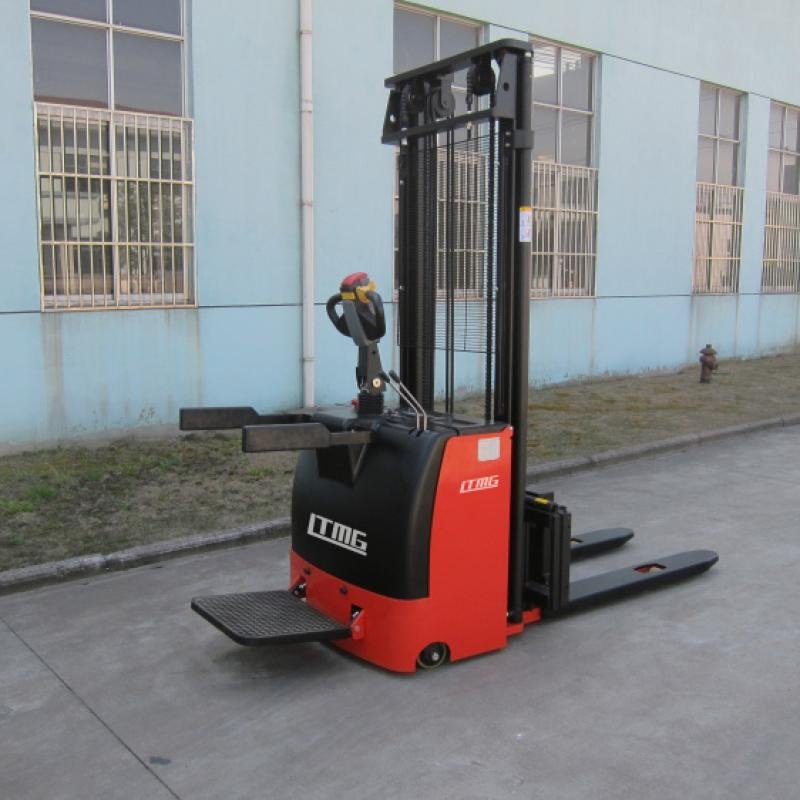

Type | ER15 | |
Driving style | Rider | |
Load capacity Q | kg | 1500 |
Load center C | mm | 600 |
Fork dimension L×b×m | mm | 1150/1200×160×56 |
Ground clearance x | mm | 29 |
Base distance L0 | mm | 1365 |
Wheel material | PU | |
Driving wheel size | mm | φ250×80 |
Front wheel size | mm | φ78×70 |
Balance wheel size | mm | φ150×75 |
Min. steering radius Wa | mm | 1600 |
Min. width of aisle | mm | ≥2500 |
Max. height of forks H | mm | 4500 |
Max. overall height H2 | mm | 5285 |
Travel speed（laden/unladen） | km/h | 4.5/5.5 |
Lift speed（laden/unladen） | mm/s | 125/175 |
Lower speed（laden/unladen） | mm/s | 105/120 |
Brake type | Electromagnetic | |
Power of driving motor | kw | 1.2 |
Power of lift motor | kw | 3.0 |
Battery capacity/voltage | Ah/V | 240/24 |
Weight of battery | kg | 240 |
Адрес: No. 506, Xinglinwan Road, Jimei District, Xiamen City, Fujian Province, Xiamen, Fujian, CN
With the mission of making the world greener, LTMG has focused on the construction machinery industry for more than 20 years. From R&D and production to reaching global customers, LTMG has always been quality-oriented and excellent service, conveying the power of China's machinery manufacturing to the world
