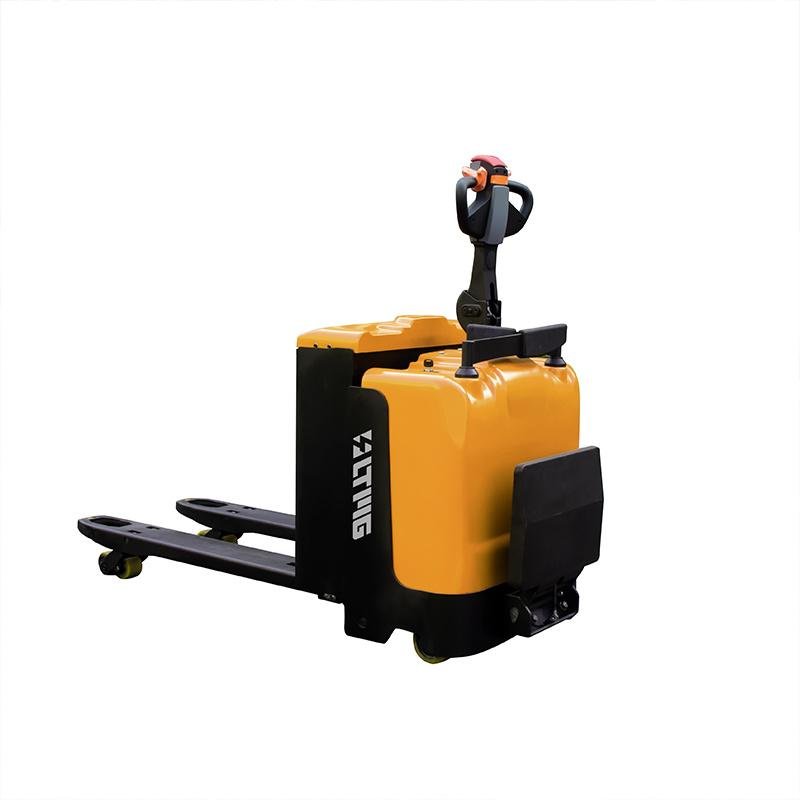

Electric Pallet Truck (Side Standing Type)

features

1.1

Model

FEP50

1.2

Power Type

Electric

1.3

Operation type

Stand Type

1.4

Steering type

Electric Steering

1.5

Capacity

Q(kg)

5000

1.6

Load center

C(mm)

600

1.7

Wheelbase

Y(mm)

1785

weight

2.1

Total weight including the battery

1530

Wheel, chassis

3.1

Wheel type

Polyurethane solid tires

3.2

Front wheel

Ø x w(mm)

80*110

3.3

Rear wheel

Ø x w(mm)

254*102

3.4

Balance wheel

Ø x w(mm)

150*50

size

4.1

Max Lifting Height

H (mm)

225

4.2

Fork height with forks lowered

105

4.3

Fork spread

S1 (mm)

720

4.4

Overall length

L (mm)

2215

4.5

Overall width

S(mm)

1090

4.6

Fork dimension

s/e/l(mm)

70/215/1200

4.7

Min.stacking.aisle.1000*1200pall

Ast(mm)

2765

4.8

Turning radius

Wa(mm)

2020

performance

5.1

Max travel speed)(No load /Full)

km/h

5/4

5.2

Lifting speed (No load /Full)

m/s

0.042/0.04

5.3

Lowered speed (No load /Full)

m/s

0.35/0.045

5.4

Max.Grade ability No load /Full

%

8/5

5.5

Brake form

Electromagnetic

motor

6.1

Driving motor

kw

3

6.2

Lifting motor

kw

3DC

6.3

Battery type

Lead acid battery

6.4

Battery capacity

V/Ah

24/300

6.5

Charger-Intelligent

V/A

24/40

other

7.1

Drive control mode

AC

7.2

Driver's ear noise level according to EN12053

dB(A)

75
