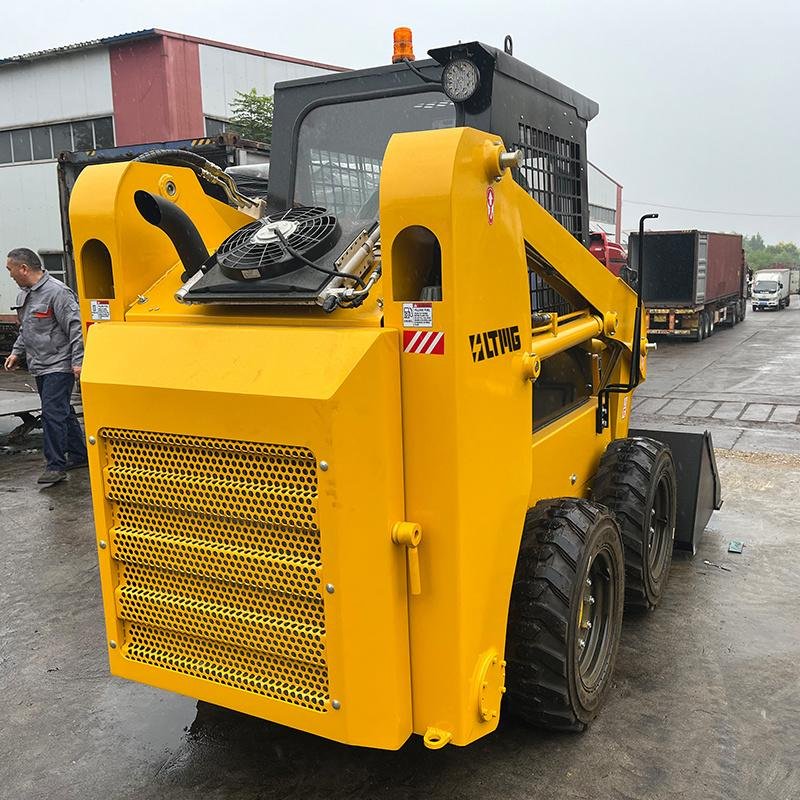

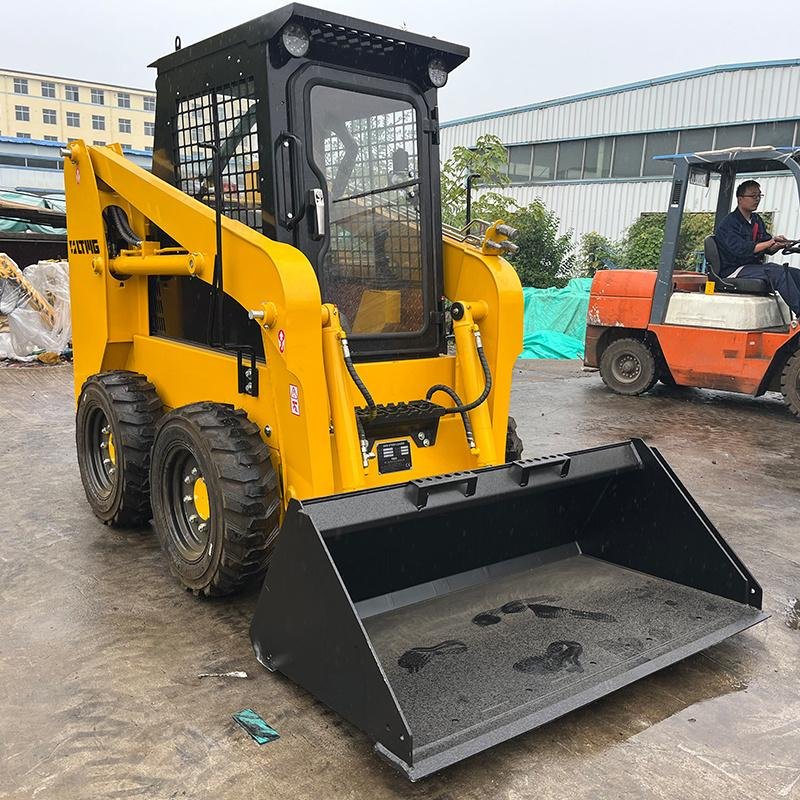

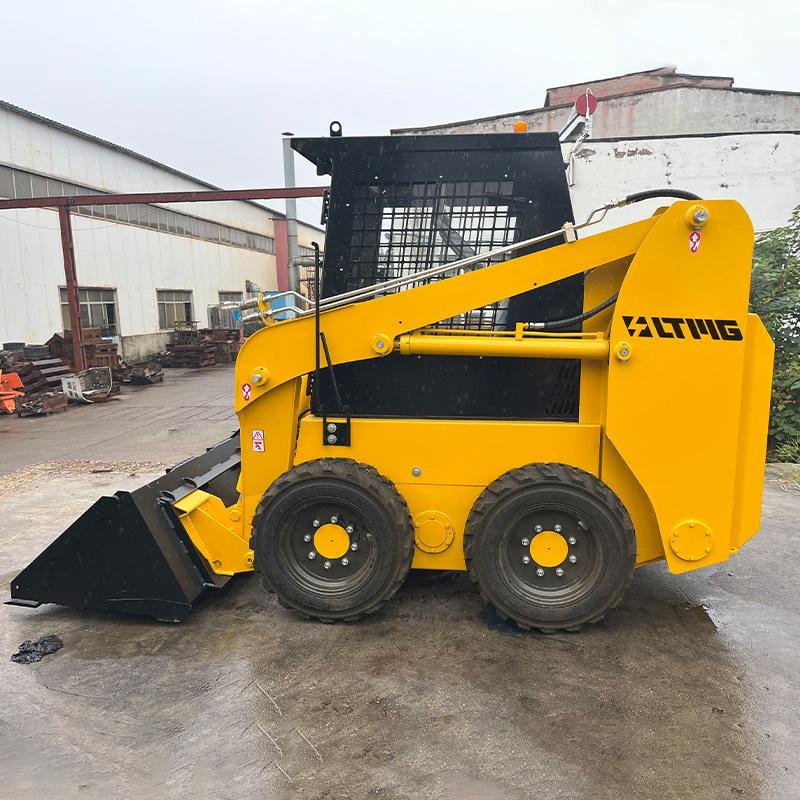

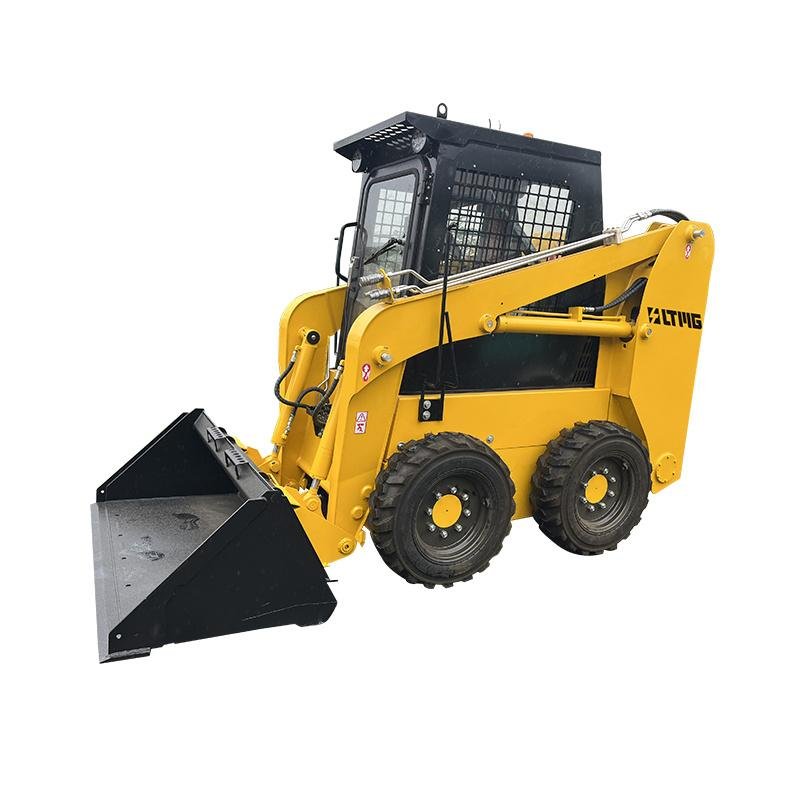

Name: LT35-500KG Wheeled Skid Steer Loader
Brand: LTMG
SKU: SKU-2443-XWOBU
Availability: InStock

Отправить другу по электронной почте

LT35-500KG Wheeled Skid Steer Loader

(0 reviews)

$0.00

Продан:LTMG

The skid steer loader is compact, easy to access to small places, strong and powerful.

It can be equipped with a wide range of attachments, making it a powerful and versatile machine, ideal for building construction, landscaping and other applications.

Excellent weight distribution enables stable balance, easy steering and skidding, thus giving the ideal performance of the machine.

Integral cab with good sealing.

Артикул:SKU-2443-XWOBU
Категории:TBD
Бренды:LTMG

Specification

Model		LT35
Operating Load	Kg	500
Max Speed	Km/H	10
Rated Flux	L/Min	60
Tire Model		8.5-16.5
Self Weight	Kg	2600
Bucket Capacity	M³	0.3
Overall Operating Height	mm	3300
Height To Top Of Cab	mm	2000
Without Bucket Length	mm	2300
Overall Length With Bucket	mm	2950
Dumping Height	mm	2000
Width	mm	1350
Bucket Width	mm	1400
Height To Bottom Of Level Bucket	mm	2558
Dumping Angle At Maximum Height	°	40
Height To Bucket Hinge Pin	mm	2725
Dumping Reach	mm	790
Rollback Of Bucket On Ground	°	30
Rollback Of Bucket At Full Height	°	104
Wheelbase	mm	897
Ground Clearance	mm	140
Angle Of Departure	°	20
Front Turning Radius Without Bucket	mm	1098
Front Tuning Radius	mm	1760
Rear Tuning Radius	mm	1296
Rear Axle To Bumper	mm	964
Tread Width	mm	1080
Engine		Xinchai
Rated Power	Kw	37
Fuel Tank Capacity	L	60

With technological innovation our product configuration and parameters will continue to change without notice;

if there is any doubt the specific confirmation of our international trade sales shall prevail;
