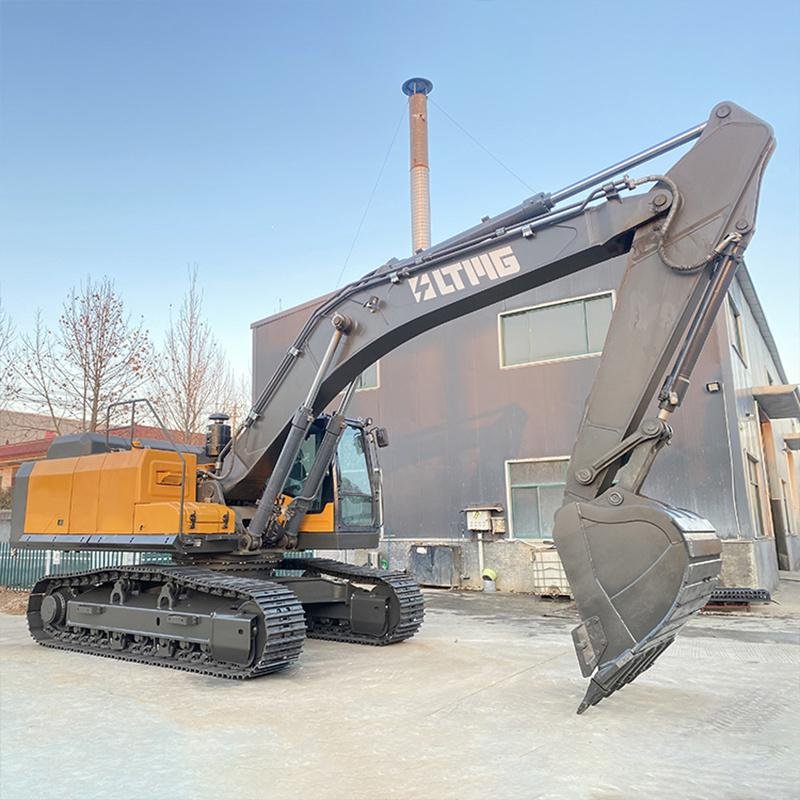

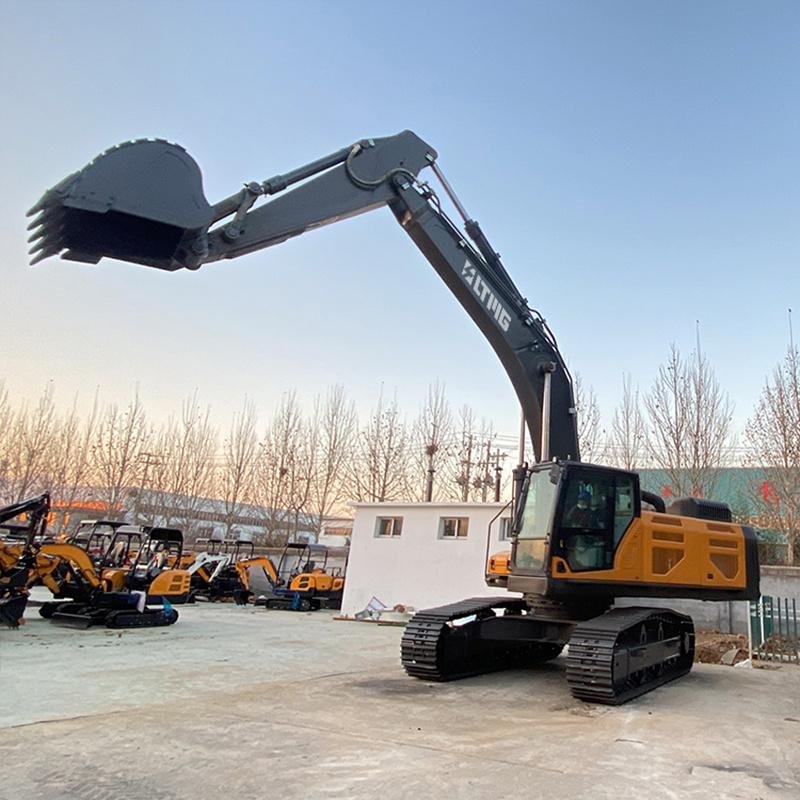

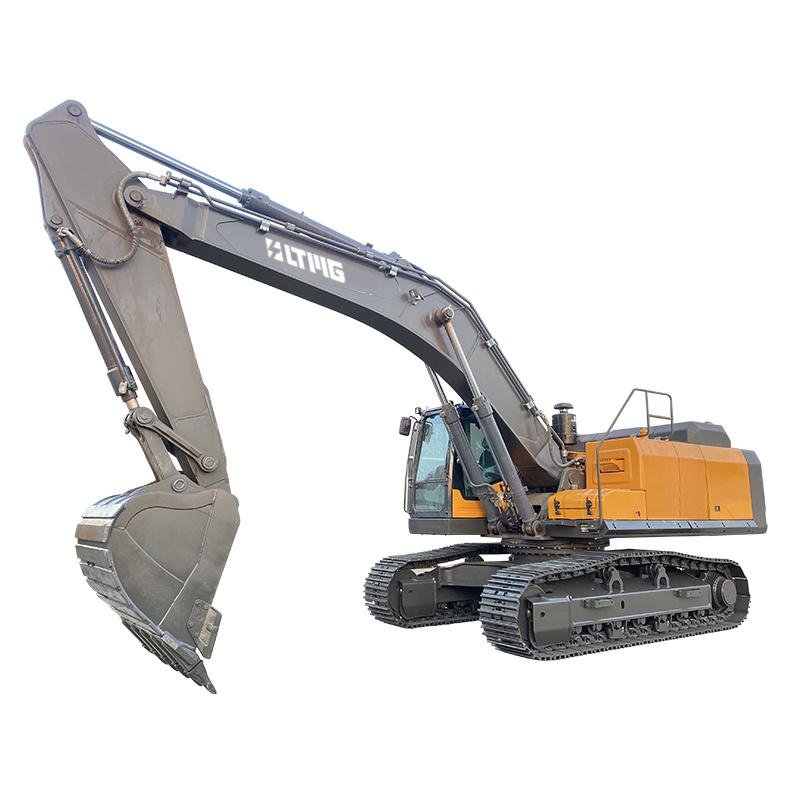

LTE380 - 38 Ton Crawler Excavator

(0 reviews)

$0.00

Продан:LTMG

Key parts like teeth and blade edges use wear-resistant materials,extending lifespan and reducing replacement frequency.

Optimized hydraulic system ensures smooth boom extension/retraction and bucket rotation, adapting to various excavation scenarios.

Compact design for minimized wear,reducing maintenance costs and downtime.

Constructed of high-strength materials for superior shock resistance and corrosion protection.

Large track-ground contact area ensures excellent stability.

Large windows offer unobstructed 360-degree visibility for safe andprecise operation.

Артикул:SKU-2443-G4HE3
Категории:TBD
Бренды:LTMG

Specification

Performance Parameters	Unit	LTE380
Operating Weight	Kg	38000
Engine Model		Cummins SL9
Rated Power	Kw	219KW/1900rpm
Bucket Capacity	m³	1.7-1.9
Max Digging Force	Kn	244
Swing Speed	rpm	0-11
Traveling Speed	km/h	2.4-4.4
Gradeability	°	58°
System Working Pressure	Mpa	35
Boom Length	mm	6470
Arm length	mm	3185

Operating Range
Max. Digging Radius	mm	11178
Max. Digging Depth	mm	7327
Max. Digging Height	mm	10511
Max. Dumping Height	mm	7572
Max. vertical digging depth	mm	6731

Overall Dimensions
Overall Length	mm	11285
Overall Width	mm	3190
Overall Height	mm	3664
Mini.Ground Clearance	mm	490
Track Width	mm	600
Axle base(Track length on ground)	mm	2580
Track Gauge	mm	2590
Swing radius at tail	mm	3590

With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
