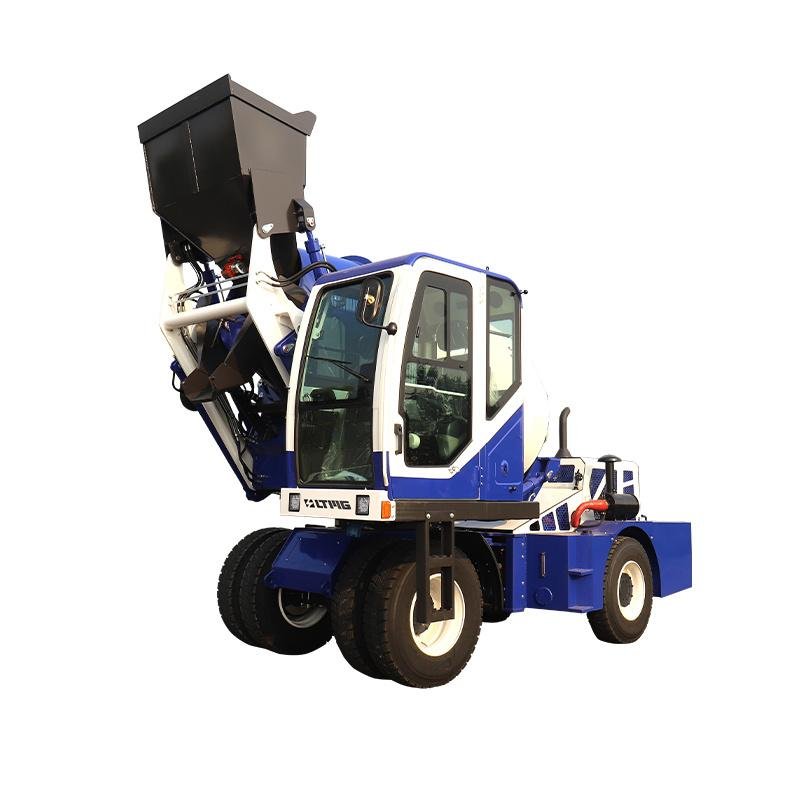

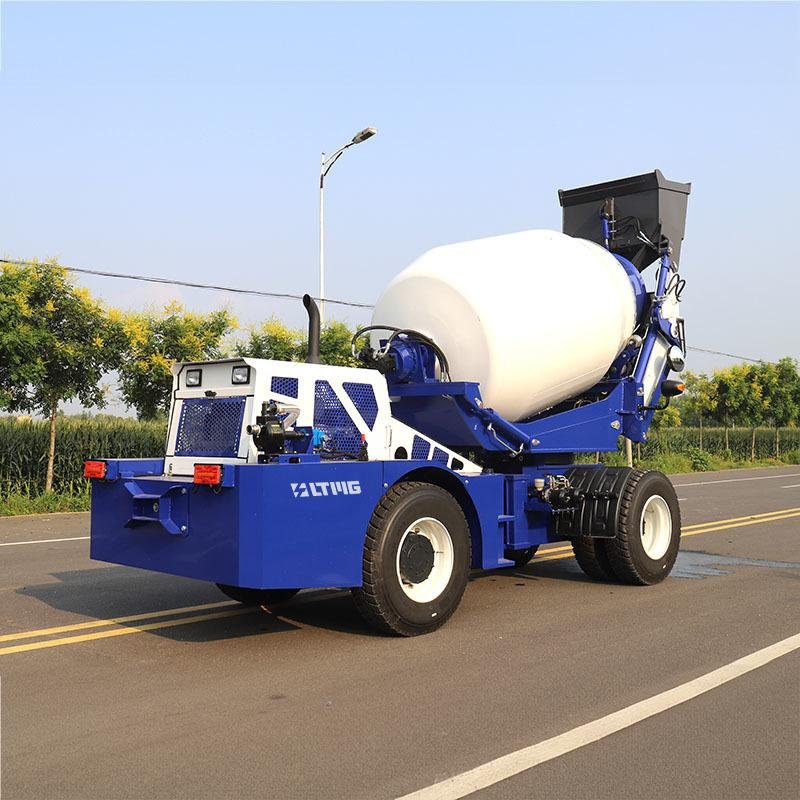

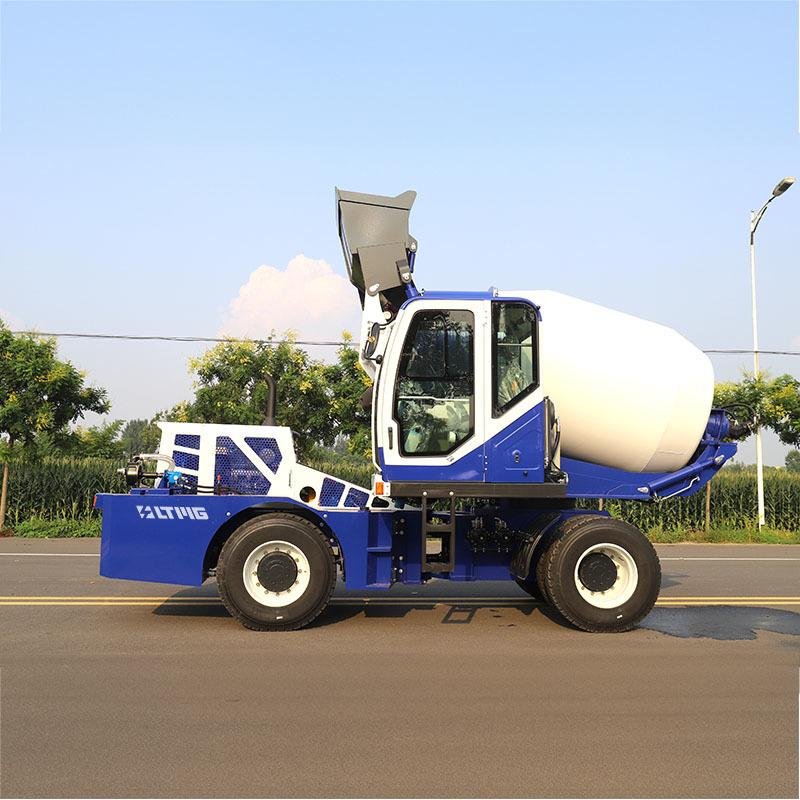

Model

LTM40

Output per lot

4.0 cubic metre

Drum rotation

Discharge Port Height 2 meters, cab and tank horizontal rotation 270 tank can be raised and lowered

Capacity

Up to 5 batches per hour, 20 cubic hours

Engine

YC6J125Z-T20, diesel, water-cooled, 6-cylinder, 2200 rpm

Rated power

92KW

Transmission mode

The engine is directly connected to the 300 split Torque converter, and is connected to the gearbox with double high and low speed through the transmission shaft to realize four-wheel drive

Climb

40°

Speed

Dual altitude, low speed 0-25 kph, high speed 0-40 kph

Driver's seat

Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat

Hydraulic system

Open oil inlet, axial piston motor, two gear pumps to participate in the work

Joystick

Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank

Bucket

0.7 cubic, hydraulic gate

Clay groove

Equipped with two 150 cm removable Chute to increase the length of discharge

Water Supply System

Self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine

Brake

Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper

Steering

Hydraulic articulated steering

Tyres

12R-22.5 steel wire high pressure vacuum tire

Power System

24V

Fuel tank / Water tank

 1 * 1200L water tank, 135 L diesel fuel tank, 135L hydraulic fuel tank

Weight

9100 kg

Length, width, height / wheelbase / Wheelbase

7600mm*2950mm*3400mm*3000mm*2200mm

Turning radius

3000 mm

Other

Q345 manganese steel frame, excavator luxury cab, driving video, cement bucket, air conditioning
