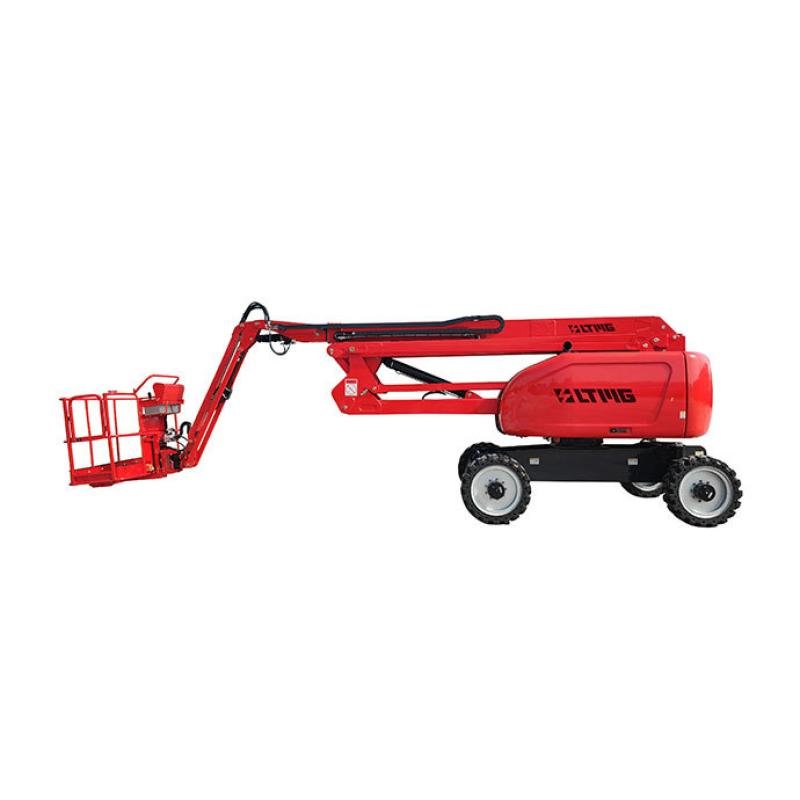

Model

LTQD2022

Measure

Max.Working height

m

22

Max.Platform height

m

20

Max.Horizontal reach

m

12.6

Max.Up & over clearance

m

9.2

Platform dimensions(LxW)

m

1.83x0.76

Length(stowed)

m

9.07

Width(stowed)

m

2.38

Height(stowed)

m

2.49

Wheelbase

m

2.45

Ground clearance(center)

m

0.43

Productivity

Max.load capacity

kg

230

Max.Platform occupancy

2

Platform rotation

±80°

Vertical jib rotation

140°

Turntable rotation

360°

Turntable tail swing

m

0.33

Drive speed (stowed)

km/h

4.2

Drive speed(raised or extended)

km/h

1.1

Gradeability

45%

Max.Allowable slope

3°/3°

Turning radius(Inside)

m

2.66

Turning radius(Outside)

m

5.66

Drive&steer mode

4x4x2

Tire type

33x12-20

Power

Engine

Weichai

Power

36.8kW/2500rpm

Fuel tank volume

L

100

Hydraulic oil tank volume

L

110

Control voltage

12 V DC

Weight

kg

8800

Standards Compliance

EN280：2013+Al：2015 GB25849-2010
