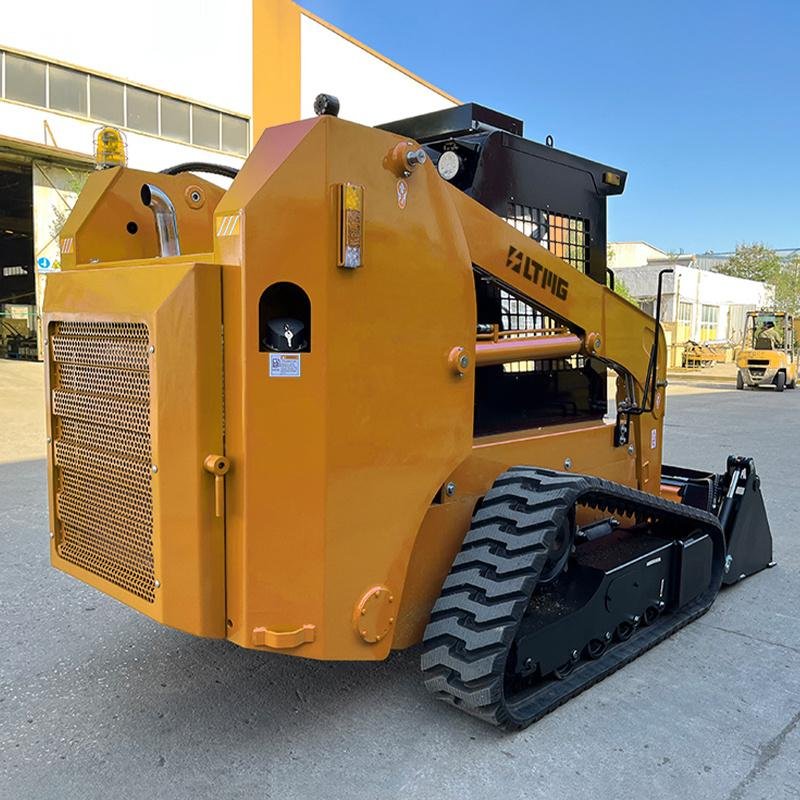

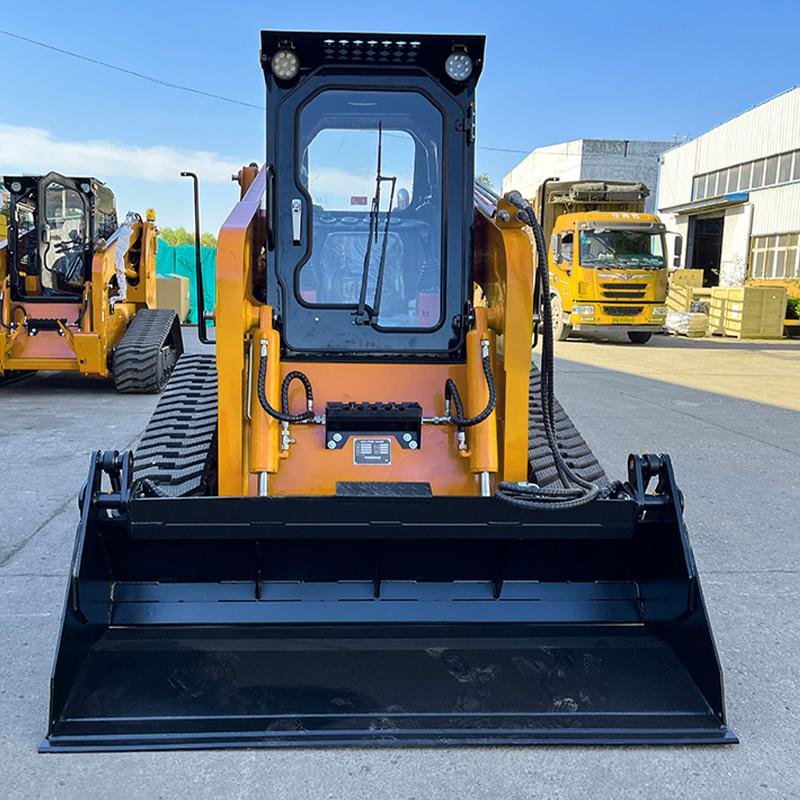

Name: LTS100-1200KG Tracked Skid Steer Loader
Brand: LTMG
SKU: SKU-2443-RZQMF
Availability: InStock

أرسل إلى صديق

LTS100-1200KG Tracked Skid Steer Loader

(0 reviews)

$0.00

تم بيعها من قبل:LTMG

The pilot operating mechanism adopts the company's patented design of adjustable maneuvering distance, adapting to the driving requirements of different people.

Adopting rubber track traveling system with low grounding specific pressure, it can adapt to soft ground and mountain driving operation.

LED energy-saving front light, long irradiation distance, easy to realize night operation.

Imported hydraulic motor brings more powerful and reliable driving force.

Optional EPA engine, more powerful, energy-saving and environmental protection, low noise.

The rear radiator has a rotating structure that dramatically increases the machine's serviceability.

رمز التخزين التعريفي:SKU-2443-RZQMF
فئات:TBD
العلامات التجارية:LTMG

Specification

Model		LTS100
Operating Load	Kg	1200
Max Speed	Km/H	12\18
Rated Flux	L/Min	88
	L/Min	140
Track Model		320X84
Self Weight	Kg	4800
Bucket Capacity	M³	0.55
Overall Operating Height	mm	4800
Height To Top Of Cab	mm	2160
Without Bucket Length	mm	3000
Overall Length With Bucket	mm	3700
Dumping Height	mm	2450
Width	mm	1994
Bucket Width	mm	2030
Height To Bottom Of Level Bucket	mm	2983
Dumping Angle At Maximum Height	°	40
Height To Bucket Hinge Pin	mm	3150
Dumping Reach	mm	700
Rollback Of Bucket On Ground	°	30
Rollback Of Bucket At Full Height	°	104
Wheelbase	mm	1500
Ground Clearance	mm	200
Angle Of Departure	°	20
Front Turning Radius Without Bucket	mm	1365
Front Tuning Radius	mm	2200
Rear Tuning Radius	mm	1742
Rear Axle To Bumper	mm	938
Tread Width	mm	1654
Engine		Weichai

With technological innovation our product configuration and parameters will continue to change without notice;

if there is any doubt the specific confirmation of our international trade sales shall prevail;
