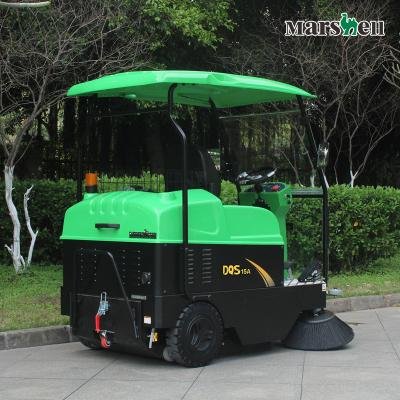

DQS15/DQS15A Ride-on Floor Sweeper

Features and Benefits

1. Easy to use with one button operation.

2. Ecoenergy-saving mode increases the endurance effectively.

3. Stronger climbing ability with high-power rear axle drive.

4. Long working hours with large capacity of 50L water tank.

5. The design of the rolling type dust scraper low the noise and increase efficiency.

6. Equipped with the function of high-pressure spray for dedusting to prevent dust re-retrainment.

Specifications

Model	DQS15	DQS15A	UNIT
Boundary dimension(L*H*W)	1800*1200*1360	1800*1200*1900	MM
Packaging dimension(L*H*W)	1920*1170*1515	1920*1170*2015	MM
Cleaning width	1500	1500	MM
Maximun efficiency	12750	12750	㎡/h
cleaning efficiency	97	97	%
Front drive power	1500	1500	W
Power	3350	3350	W
Running speed	8.5	8.5	KM/H
Backward speed	5.5	5.5	KM/H
Filtering area	6	6	㎡
Minimum turning radius	2420	2420	mm
Dustbin capacity	160	140	L
Main brush width	700	700	MM
Side brush diameter	550x2	550x2	MM
Water tank capacity	50	50	L
Maximum cleaning particle	50	50	MM
Working hours	5	5	H
Weight(with battery)	540	570	KG
Climbing capacity	≤ 15	≤ 15	%
Lead-acid battery(standard)	12V120AH*3	12V120AH*3	/
Lithium battery(optional)	36V150AH	36V150AH	/
