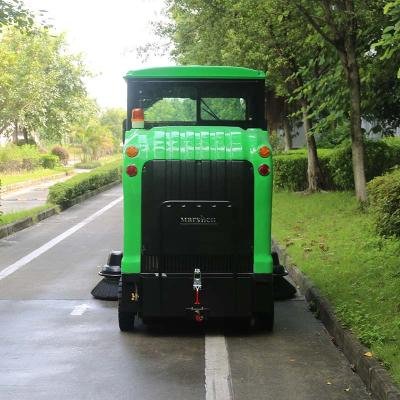

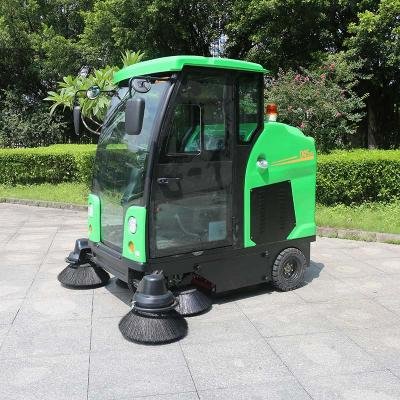

DQS19C Electric Sweeper

Advantages

1. With high-power brushless DC fan and patented rolling dedusting structure, dust can be better controlled.

2. It adopts the structure of rear retractable side brush to effectively prevent impact.

3. It adopts sliding lifting structure, and the service life of push rod motor is longer.

Specifications

Model	DQS19C
Dimension(length*width*height)	2245x1900x2060	mm
Cleaning width	1900	mm
Working Efficiency	14000	m²/h
Cleaning Efficiency	97	%
Drive axle power	2200	W
Operating Motor power	4000	W
Running speed	9.5	km/h
Cleaning speed	7.5	km/h
Backward speed	5	km/h
Dust filter area	6	m²
Turn Radius	2	m
Dustbin capacity	180	L
Main brush width	800	mm
Side brush diameter	550+500	mm
Water tank capacity	50	L
Maximum cleaning granule	50	mm
Working time	4.5-6	h
Weight (with battery)	830	KG
Climbing capacity	20	%
Battery	6*8V
Charger	48V
Packing dimension	2315*1470*2190	mm
Container quantity (20GP/40GP/40HQ)	4pcs/8pcs/8pcs	pcs
